3-4
3
3 Connecting to DeviceNet
Connecting to the Field Network
To connect to the master device or network controller on the field network using a
multidrop connection, or to connect other slave devices, connect a communication cable
that supports each field network to the field network connector.

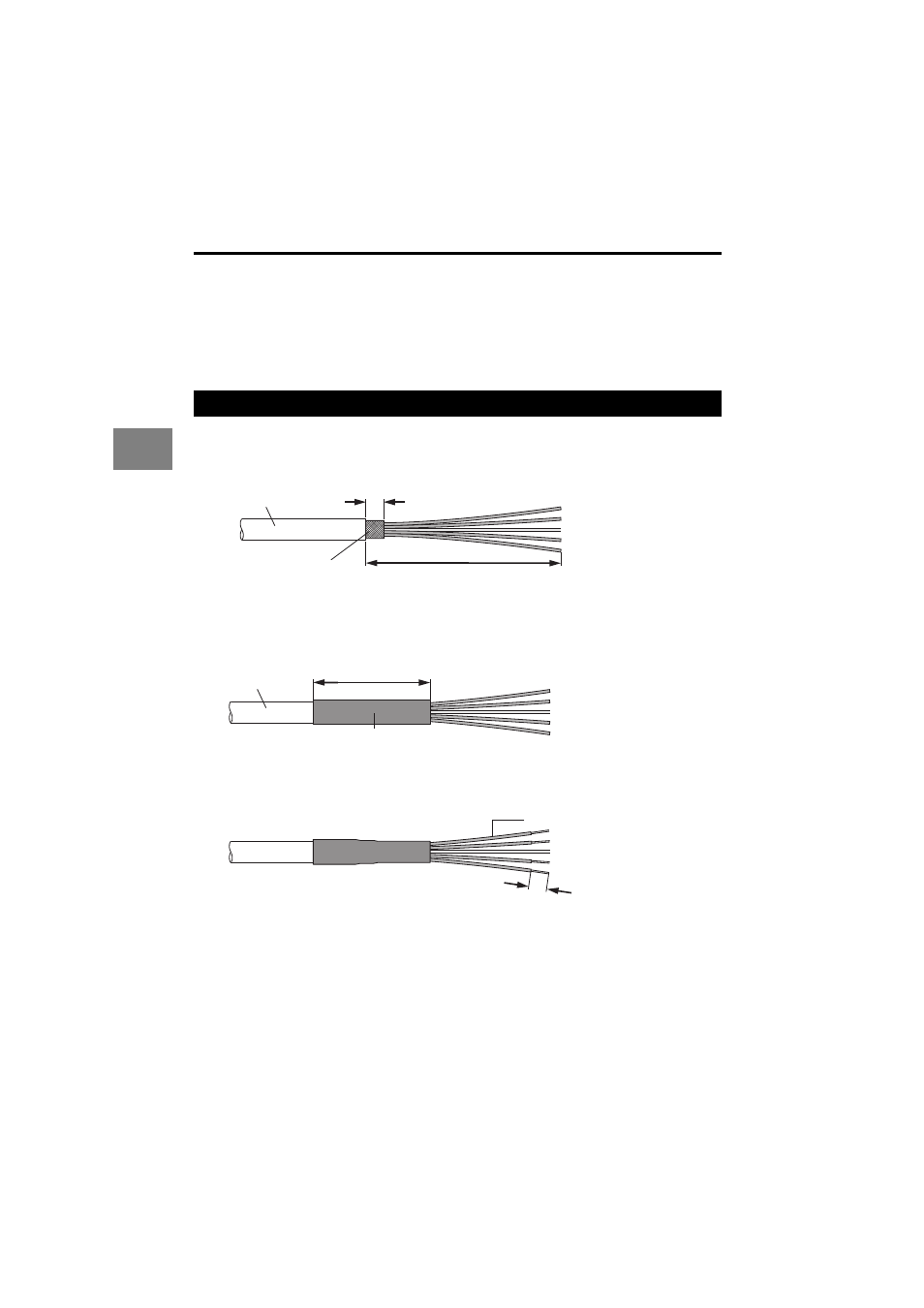

Preparing the communication cable
Use a 5-wire communication cable dedicated for DeviceNet.
1 Remove the sheath (outer insulation) from the cable.
Remove about 70 mm from the end of the cable.
Leave 6 mm or less of the braided shield exposed.
2
Cover with a shrink tube.
Cover the exposed conductors and sheath with a shrink tube cut to about 40 mm.
3 Strip the insulation from each conductor.
Strip about 8 mm from the end of each conductor.
6 mm max.
Approx. 70 mm
Braided shield wires
Sheath
Approx. 40 mm
Shrink tube
Sheath
Approx. 8 mm
Insulated conductor
