1
1-4
1 Before Use

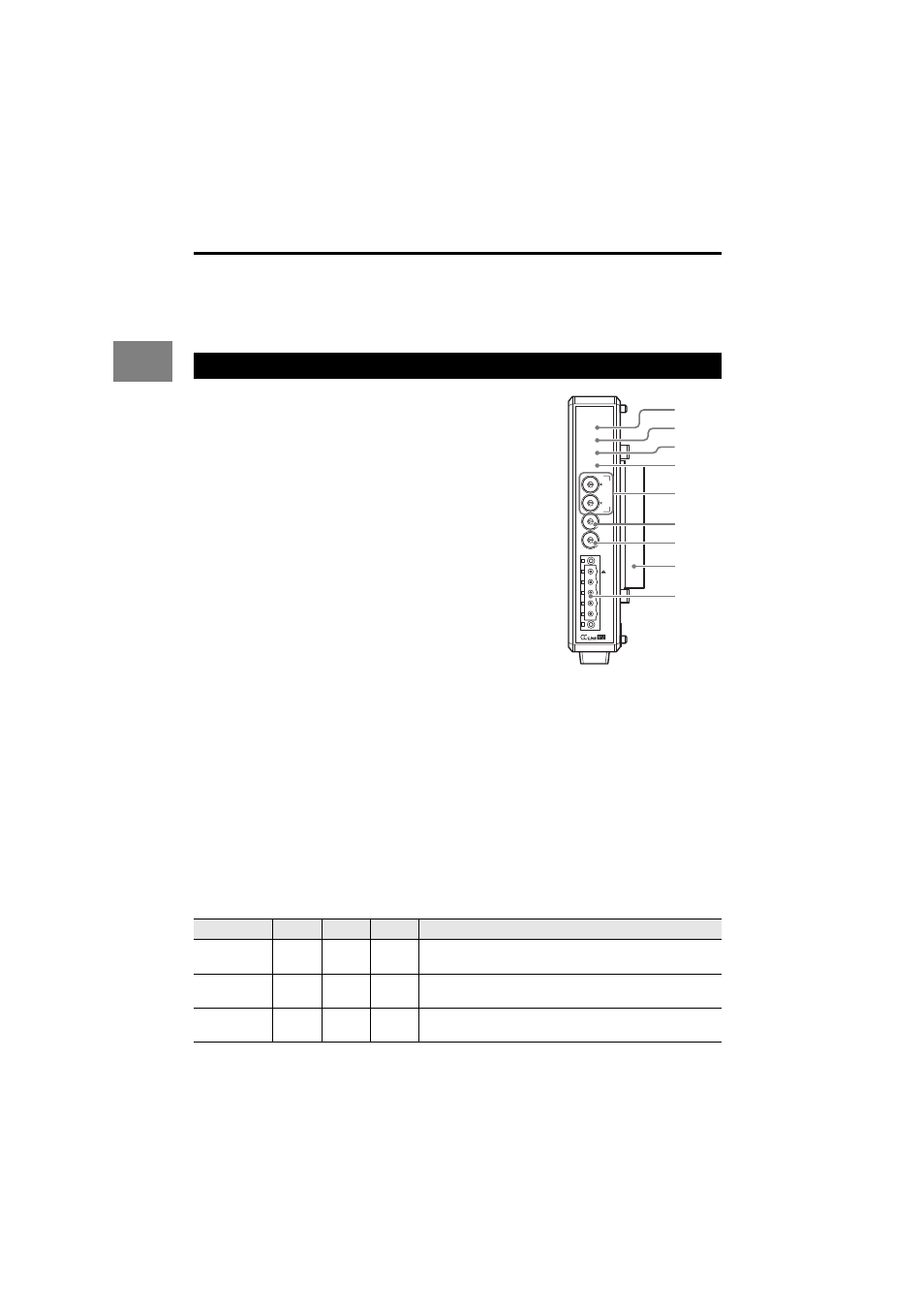

Part Names and Functions
This section describes the name and functions of each component.
CC-Link communication unit LK-CC100
 L RUN (Operating status) indicator
• Lit: Data communication between the master and local
stations (when lit green).
• Unlit: Data communications timed out (indicator will
light up again when data is received normally).
 SD (Send data) indicator
• Lit: Sending data.
 RD (Receive data) indicator
• Lit: Receiving data.
 L ERR (error) indicator
• Lit: A communications error exists (when lit red).
• Flashing at regular intervals: Station number or
communication speed change detected while power
was on.
• Flashing irregularly: Terminator (terminating resistor) is set incorrectly, or noise is
affecting the unit or CC-Link dedicated cable.
• Unlit: Communications are normal.
 STATION No. setting switch
Sets the station number (setting range: 1 to 64). x10 indicates the tens place, x1 indicates
the ones place.
 B RATE setting switch
Sets the baud rate. The baud rate settings can be set as follows.
0: 156 kbps, 1: 625 kbps, 2: 2.5 Mbps, 3: 5 Mbps, 4: 10 Mbps
 MODE setting switch
Sets the communication mode. The communication mode settings can be set as follows.
Switch setting Multiple Station Version Remark
0 1 1 - Not supported (Disables control input, tolerance comparison
and readout of measurement values for any OUT).
1 1 2 1.1 Disables control input, tolerance comparison and readout of
measurement values for OUT03 and higher.
2 1 3 1.1 Disables control input, tolerance comparison and readout of
measurement values for OUT05 and higher.
L RUN
SD
RD
L ERR
10
LK-CC100
0 9 8 7 6 5 4 3 2 1
1 0 9 8 7 6 5 4 3 2 1
B RATE
SLD
DG
DB
DA
0 9 8 7 6 5 4 3 2 1
MODE 0 F E D C B A 9 8 76 5 4 3 21
ST
A TION No
.
(FG)
ቢ
ባ
ቤ
ብ
ቦ
ቧ
ቨ
ቩ
ቪ
