2-4
2
2 Connecting to CC-Link
Connecting to the Field Network
To connect to the master device or network controller on the field network using a
multidrop connection, or to connect other slave devices, connect a communication cable
that supports each field network to the field network connector.
Preparing the communication cable
Use a communication cable dedicated for CC-Link (Ver. 1.10 or higher).

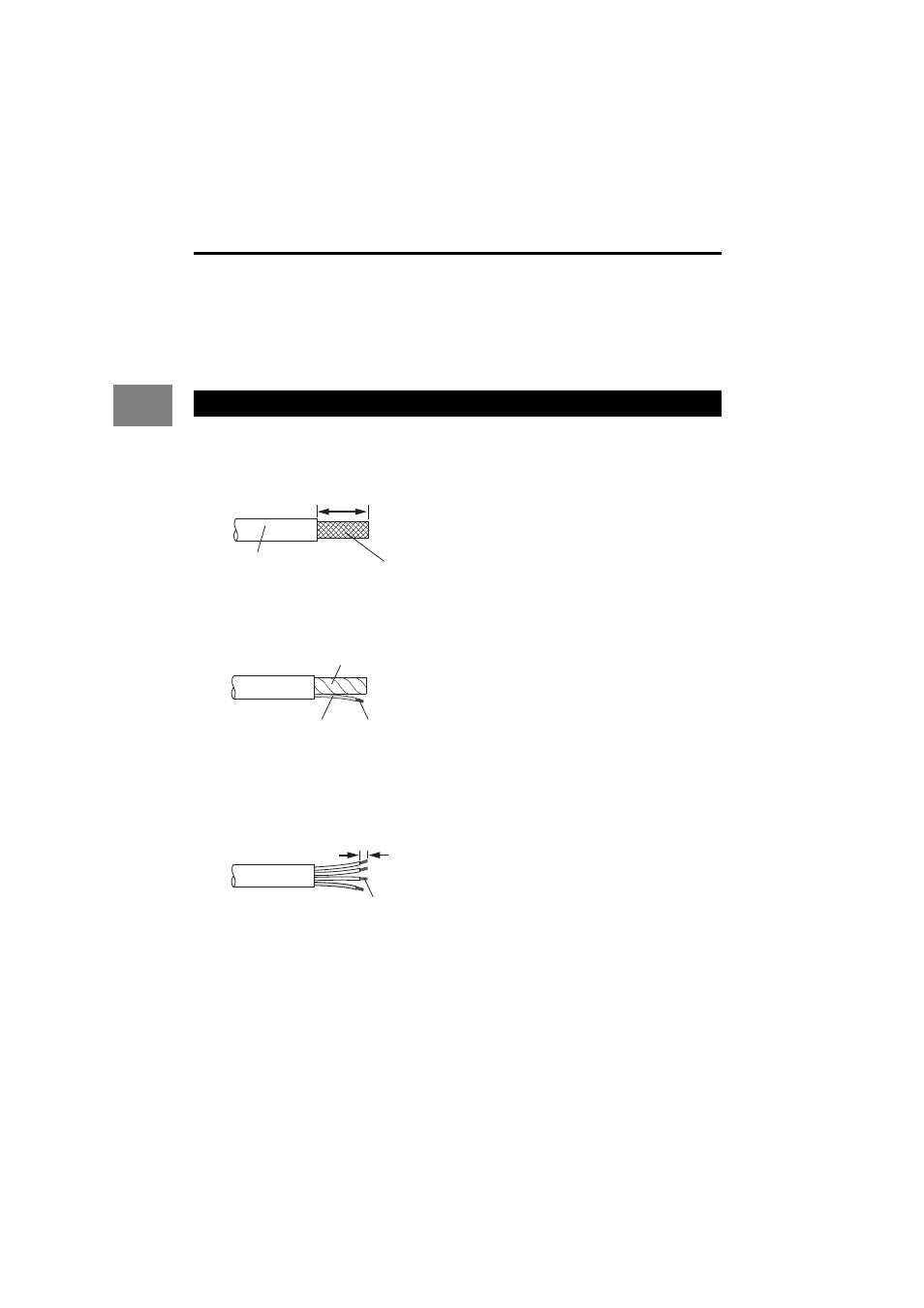

1 Remove the sheath (outer insulation) from the cable.
Carefully remove about 50 mm from the end of the dedicated cable so as not to
damage the braided shield wires.
2
Prepare the shield.
Carefully unravel the braided shield wires. Inside the shield is a single exposed
drain wire (twisted or loose). Twist this with the unraveled shield wire and cover it
with an insulation tube.
3 Strip the insulation from the signal lines.
Being careful not to damage the signal lines, remove the aluminum polyester
laminated tape and filling, and strip about 8 mm from each signal line.
Twist the exposed conductor strands to keep them together.
Approx. 50 mm
Shield (braided shield wire) Sheath (outer insulation)
Aluminum polyester laminated tape
Twisted shield wire Insulation tube
Approx. 8 mm
Twist conductor strands together
