2 Connecting to CC-Link
Control using CC-Link
This section explains how to use a PLC to control the LK-CC100 configured for a CC-Link
network.
This section describes only those functions and settings of the CC-Link master station necessary for
communicating with the LK-CC100. Refer to the manual supplied with the CC-Link master station and
PLC for details on functions and settings of each device.
Operation and memory configuration with CC-Link
On a CC-Link network, the LK-CC100 operates as a slave station (remote device station)
to the CC-Link master station connected via the network cable.
• The buffer memory inside the LK-CC100 is linked to remote I/O and remote registers on
the CC-Link master station according to the memory configuration illustrated below.
• Control the system by setting and programming (2-14) according to this memory
configuration.

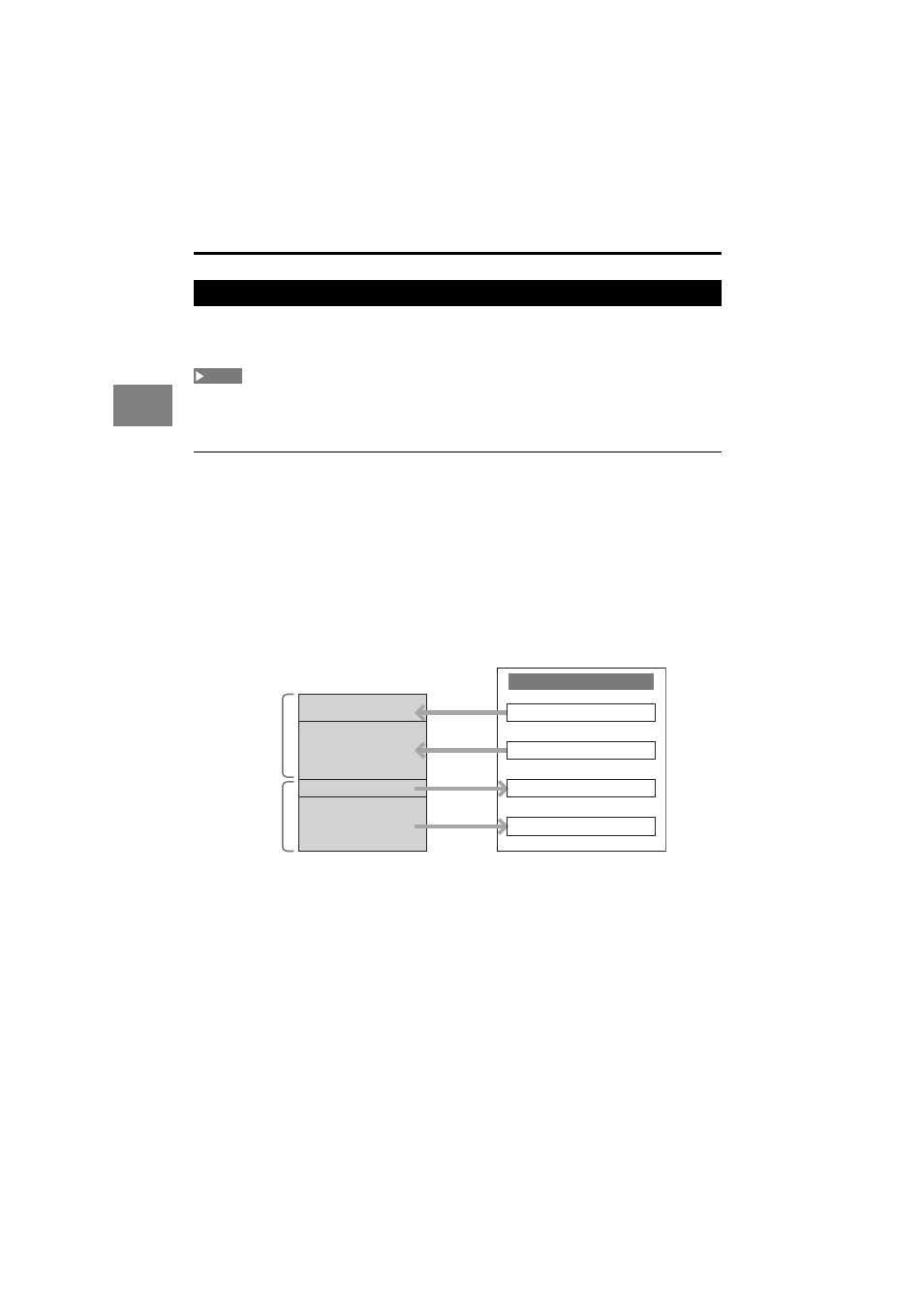

 Memory configuration
Buffer memory inside the LK-CC100 is linked as shown here.
NOTE
CC-Link master station Buffer memory
RY (remote outputs) Read control buffer
Write control buffer
Read data buffer
Write data buffer
Read buffer
Write buffer
RWw (remote registers)
RX (remote inputs)
RWr (remote registers)
