Page 67

Chapter 5 - Setup
5-3
3/Lb Kg
•
Toggles between read pounds (Lb.) or kilograms (Kg.).
•
The key also enters the digit "3."
4/
↑
•
This key moves forward through a menu, step by step and will wrap
to the beginning of the menu.
•
The key also enters the digit "4"
•
Resumes the Self Test

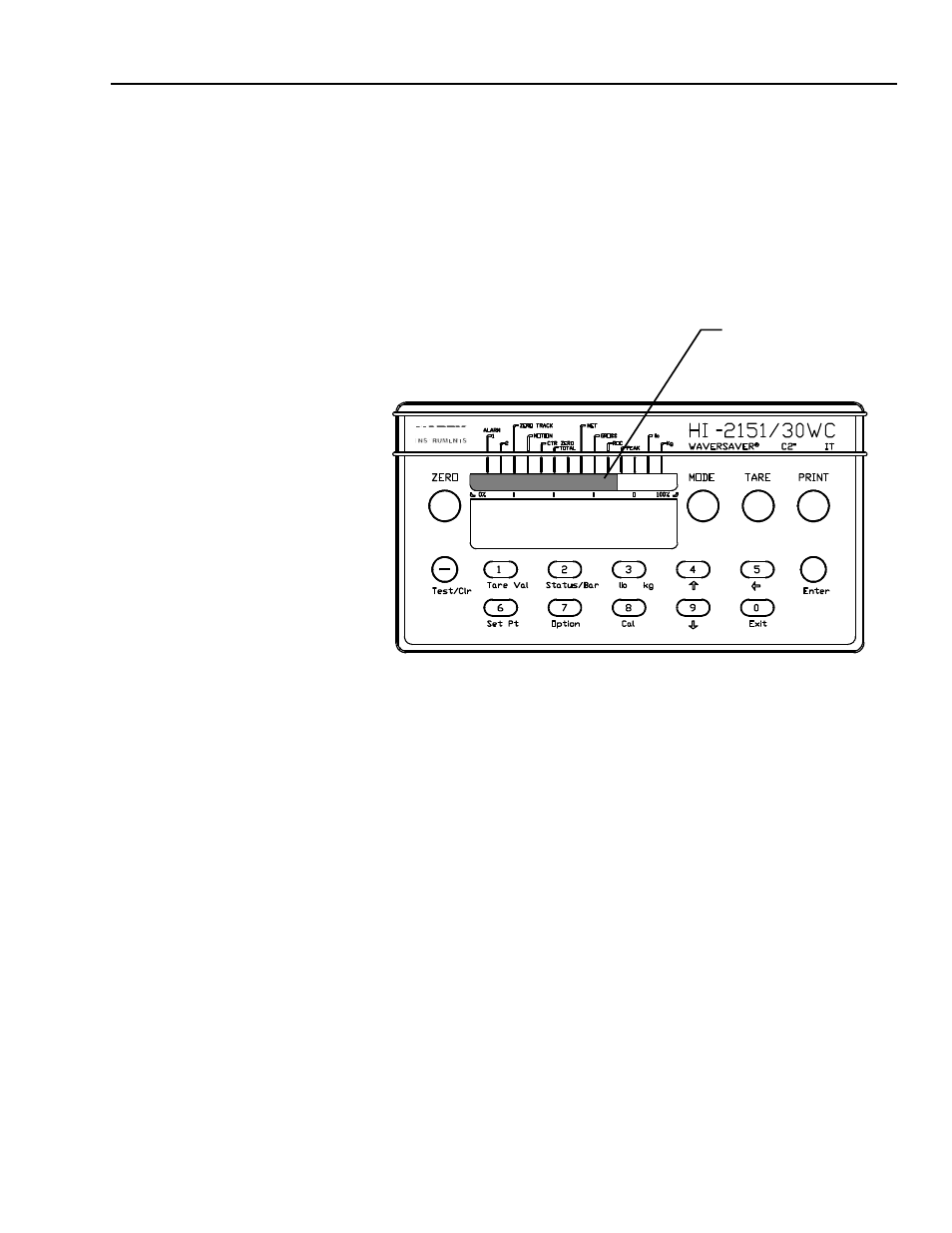

FIG. 5-2 FRONT PANEL, BAR GRAPH DISPLAYED
5/
←
•
Moves the decimal point position to the left when in Calibration
Mode.
•
Selects user selectable formats in the serial and optional BCD
menus.
•
The key also enters the digit "5".
6/Set Pt
•
This key is used to enter the Set point Menu
•
Values for standard and optional Relays.
Set point Values
Deadband Values
Preact Values
•
The key also enters the digit "6".
7/Option
•
This key selects the standard serial ports and available option
menus:
•
Rate of Change
Bar Graph
