Chapter 7 - Operation
7-3
appears. A list of error statements are provided in Chapter 7 - Trouble-
shooting. After checking the error statement, correct the error.
To simply view a parameter value without changing the value, push the
Enter button. If when changing a value you decide to retain the original
value, press the ZERO button instead of the Enter button. This will
save the original value and advance to the next parameter.
Option Menus and
Option Parameters
Option menus are used to set parameters for the various option boards.
All option parameters except for Peak Hold are automatically saved
and updated in the Secure Memory Module. The following sections
describe menu operation.
NOTE:
Do not modify ANY Sub menus, while the serial interface or A-B RIO are attempting
to modify information.

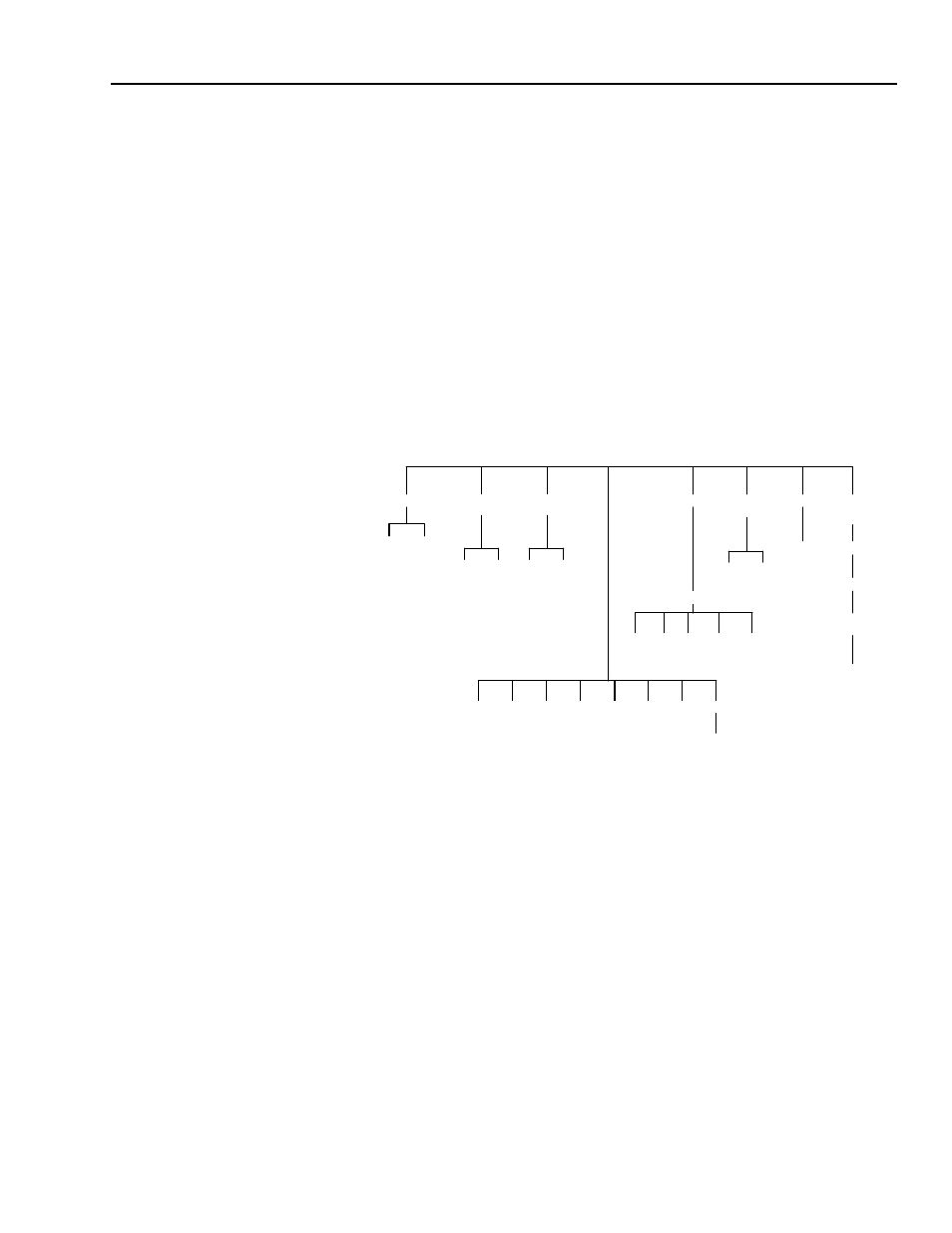

FIG. 7-2 OPTION MENU TREE
Option Boards
The Hardy Instrument option boards provide added capabilities. They
are easily installed into the option board slots, labeled Option 1 and
Option 2 on the rear panel of the instrument.
General Information
NOTE:
If your options have already been installed at the factory, move on to Set points.
The options are implemented by installing the appropriate optional cir-
cuit board onto the main analog/digital board in the instrument. (See
Chapter 3 for installation instructions)
The following option boards are available for the HI 2151/30WC:
•
Analog Output board (voltage and current outputs: Net,
Gross, Total*, ROC*, or Peak Hold*). Prt. # 0551-0326,
model HI2151/30X-B1.
OPTION MENU TREE
Rate of Change Analog Ouput
Port 1
Analog Ouput
Port 2
BCD Port
Allen
Bradley
RIO
Units
T-Base
Analog
LO
Analog
HI
Analog
LO
Analog
HI
Profibus
Rate
Rack Number
Quarter
Number
Last
Quarter
Format
Gross
Net
Tare Display
Node
Address
Bar
Graph
Bar Hi
Bar Lo
Sercon
Bi-Dir
Print
Ser Type
RS-422
RS-485
Baud
19200
9600
4800
2400
1200
600
Control
HARDRE
SOFTRE
Frame
8-N-1
7-0-1
7-E-1
8-N-2
8-0-1
8-E-1
Format
G
N
T
R
S
P
Echo
ON
OFF
Address
1-99
