Poly Bed 4 X 2 Drive System
4
4.5. There is a black plastic cover on the gearshift
control. Slide it rearward, then lift it away from
the gear shift control to expose the cable attach-
ment. See Figure 4.5.
NOTE: There is a lip at the front edge of the
cover that will provide sufficient purchase to
slide the cover back.
4.6. With the cover removed, lift the shift control
cable housing end out of the recess that locates
it in the shift control housing. See Figure 4.6.
4.7. Disengage the hooked end of the cable from the
shift control and lift the cable out of the shift con-
trol housing.
Shift Control
4.8. If the shift control is to be removed, the knob
must be taken-off the shift lever. It threads off.
See Figure 4.8.
4.9. The knob retains a spring and a lock collar. Both
can be removed after the knob is taken off.
See Figure 4.9.
4.10. Three nuts and bolts secure the shifter control to
the frame. The nuts may be removed with a pair
of 7/16” wrenches. The shifter control may then
be removed.
4.11. There are no internal replacement parts avail-
able through Cub Cadet for the shifter control. It
is to be replaced as an assembly.

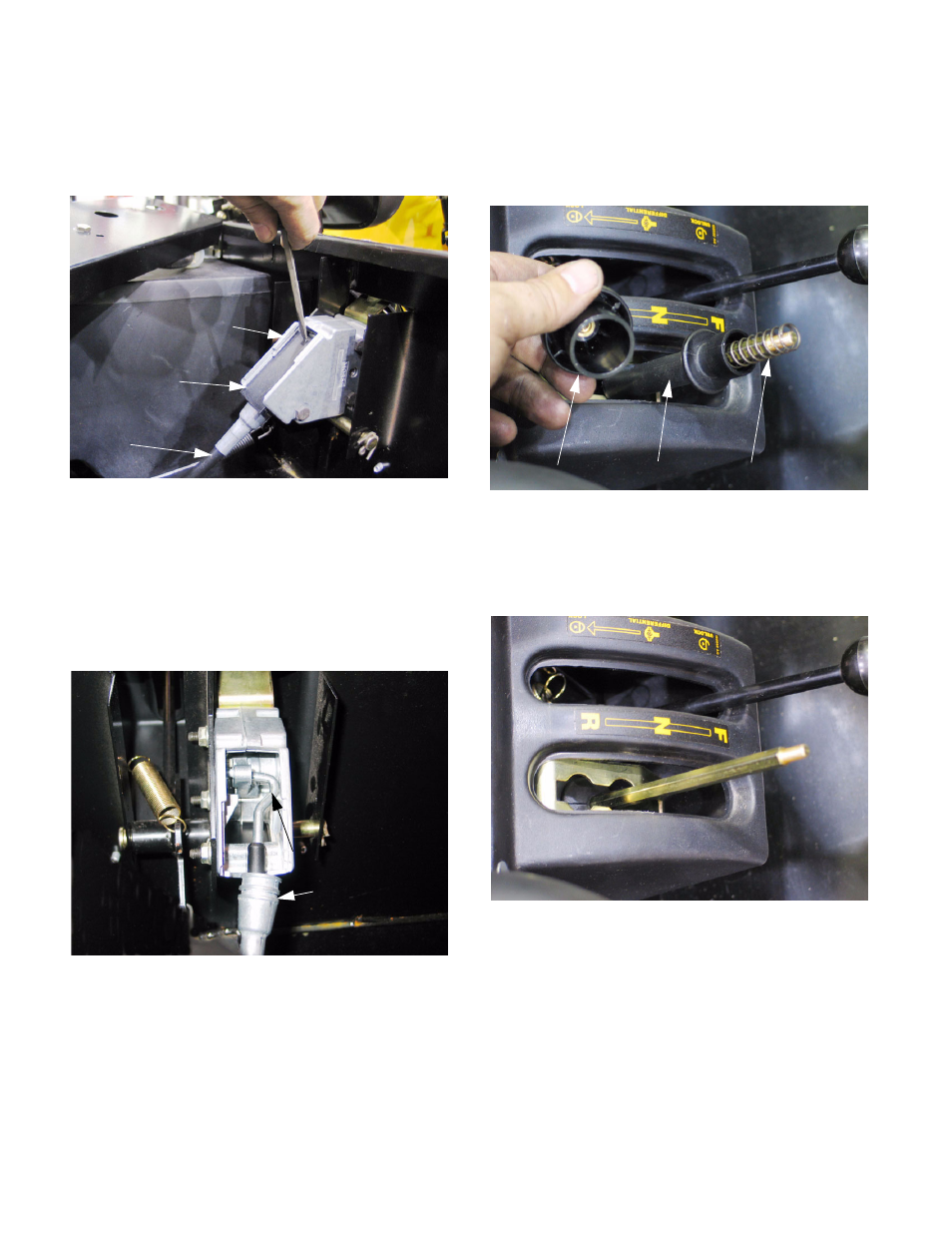

Figure 4.5
Gear shift cable
Plastic cover
Gear shift control
Figure 4.6
Cable housing end
Hook
Figure 4.8
Knob Lock collar Spring
Figure 4.9
