4 X 2 Drive System - (Steel Bed)
54
6.4. Remove the drive belt.
6.5. After the center bolt is loosened, remove the
three screws that hold the cover onto the driving
pulley.
6.6. Slide the cover off of the driving pulley. There is
not enough clearance to remove the driving pul-
ley with the cover in place. See Figure 6.6.
6.7. Remove the center bolt and stepped washer that
secure the driving pulley to the crankshaft, and
slide the pulley off of the crankshaft.
See Figure 6.7.
6.8. If the driven clutch does not function properly,
replace it as a complete unit.
• Apply a light coating of anti-sieze compound to
the crankshaft before clutch installation. Wipe off
any excess.
• Note that the key extends well beyond the end of
the crankshaft. It may be easiest to install the
key using the following method: Slide the pulley
onto the crankshaft without the key. Position the
key in the keyway in the pulley and apply gentle
inward pressure, then slowly rotate the pulley
until the key slips into the keyway in the crank-
shaft.
• Apply a small amount of relishable thread lock-
ing compound such as Loctite 242 (blue) to the
threads of the bolt.
• Install the bolt and stepped washer, and tighten
the bolt to a torque of 30 + 5 ft.-lbs.

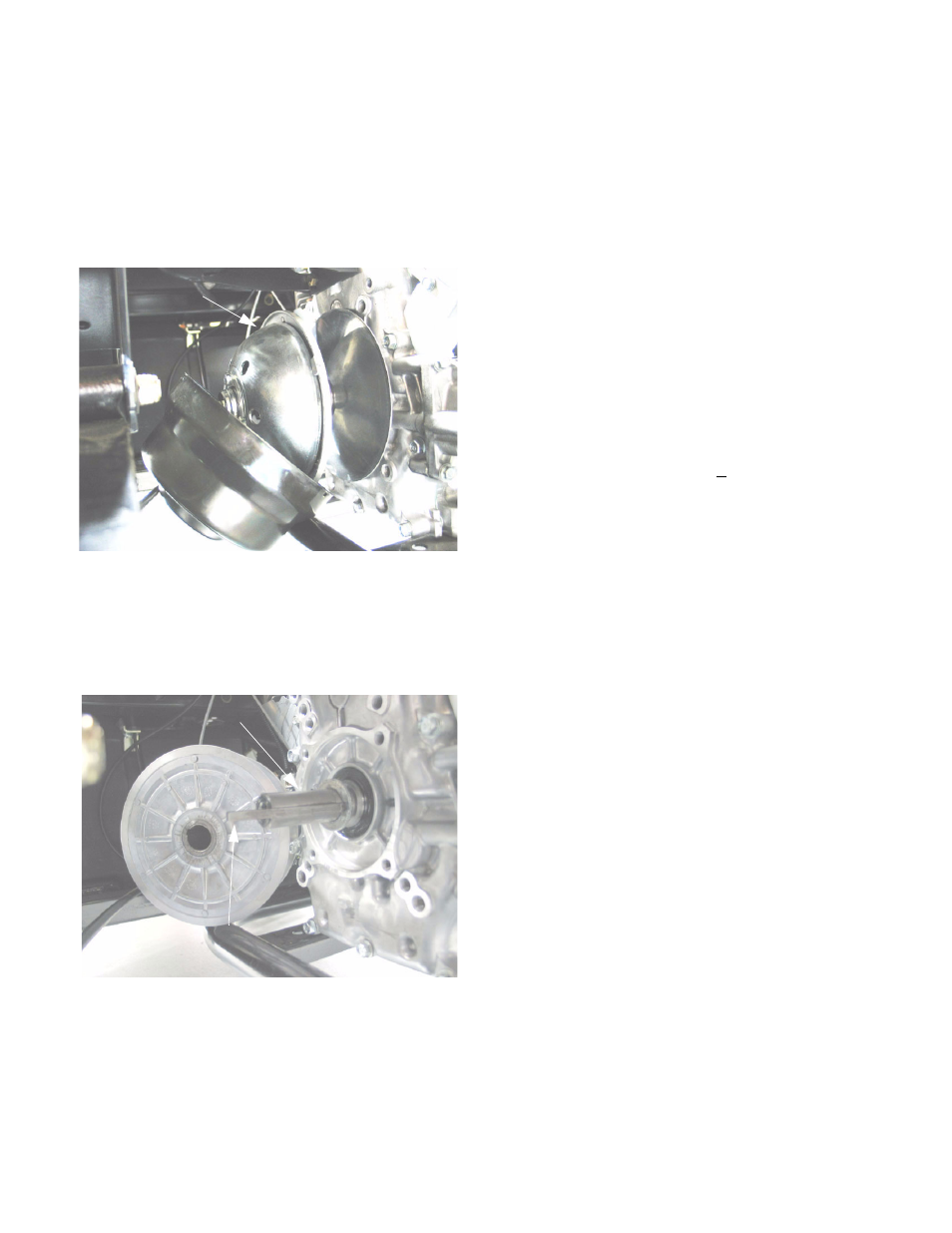

Figure 6.6
Drive Pulley
Figure 6.7
Key
Crankshaft
