4 X 2 Drive System - (Steel Bed)
58
7.29. Remove the bolt that connects the front of the
transaxle housing to the torque bracket on the
engine/transaxle cradle using a 3/8” wrench and
at 7/16” wrench. See Figure 7.29.
7.30. Loosen the mounting bolts that connect the tran-
saxle to the mounting ears on the engine/tran-
saxle cradle.
7.31. Grasp the transaxle by the input shaft to keep it
from tipping forward as the bolts are removed.
Remove the bolts. See Figure 7.31.
NOTE: The input shaft will have anti-seize com-
pound on it.
7.32. Lower the jack completely, tip the front of the
transaxle up so that the housing clears the hitch
receiver gusset on the cradle, and roll the tran-
saxle clear of the cradle on it’s own two wheels.
See Figure 7.32.
7.33. With the transaxle completely removed, the Big
Country will be stable on the jackstands.
See Figure 7.33.

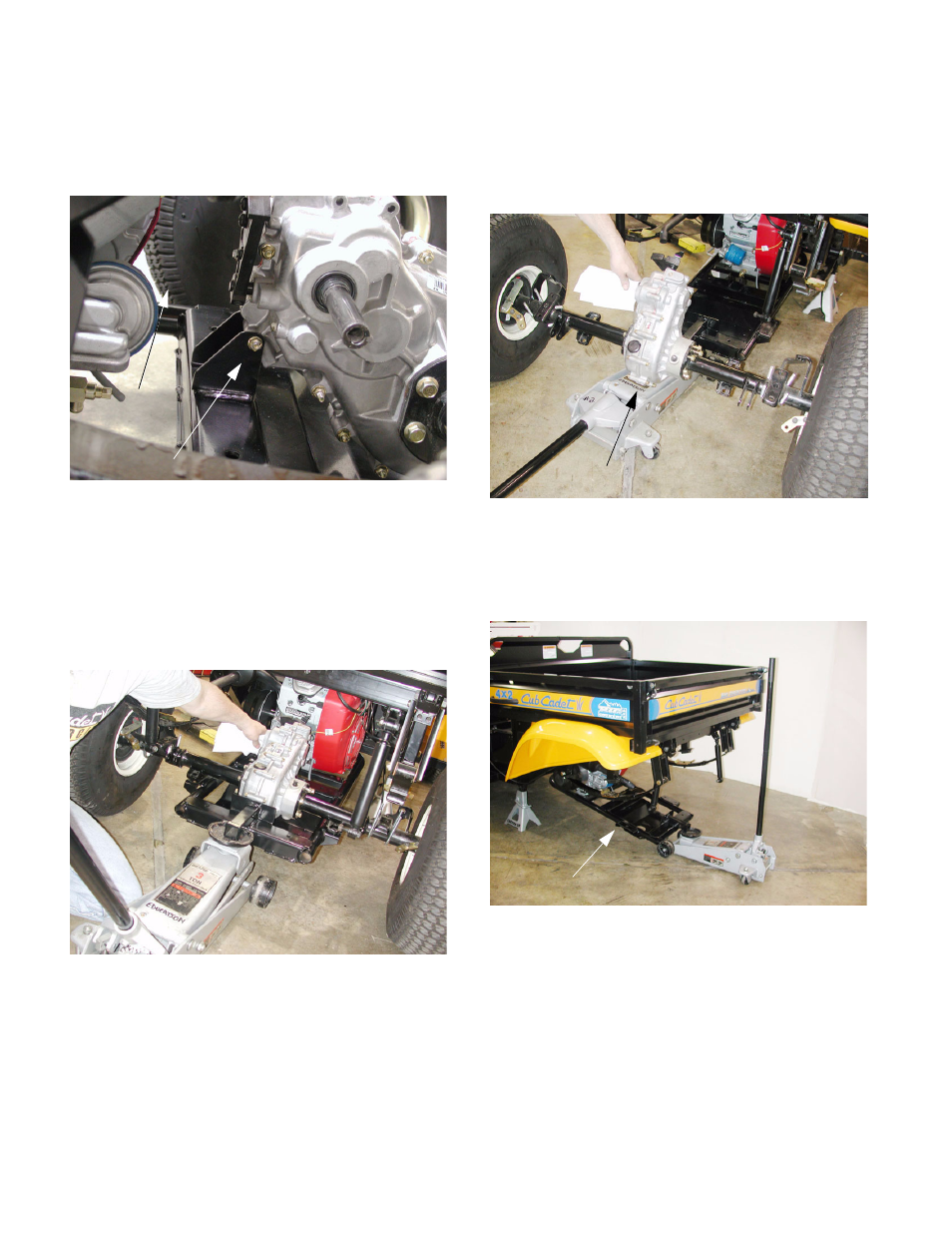

Figure 7.29
Torque Bracket
Tire
Figure 7.31
Rotate
Transaxle
Figure 7.32
Transaxle
Figure 7.33
Transaxle Cradle
