4 X 2 Drive System - (Steel Bed)
64

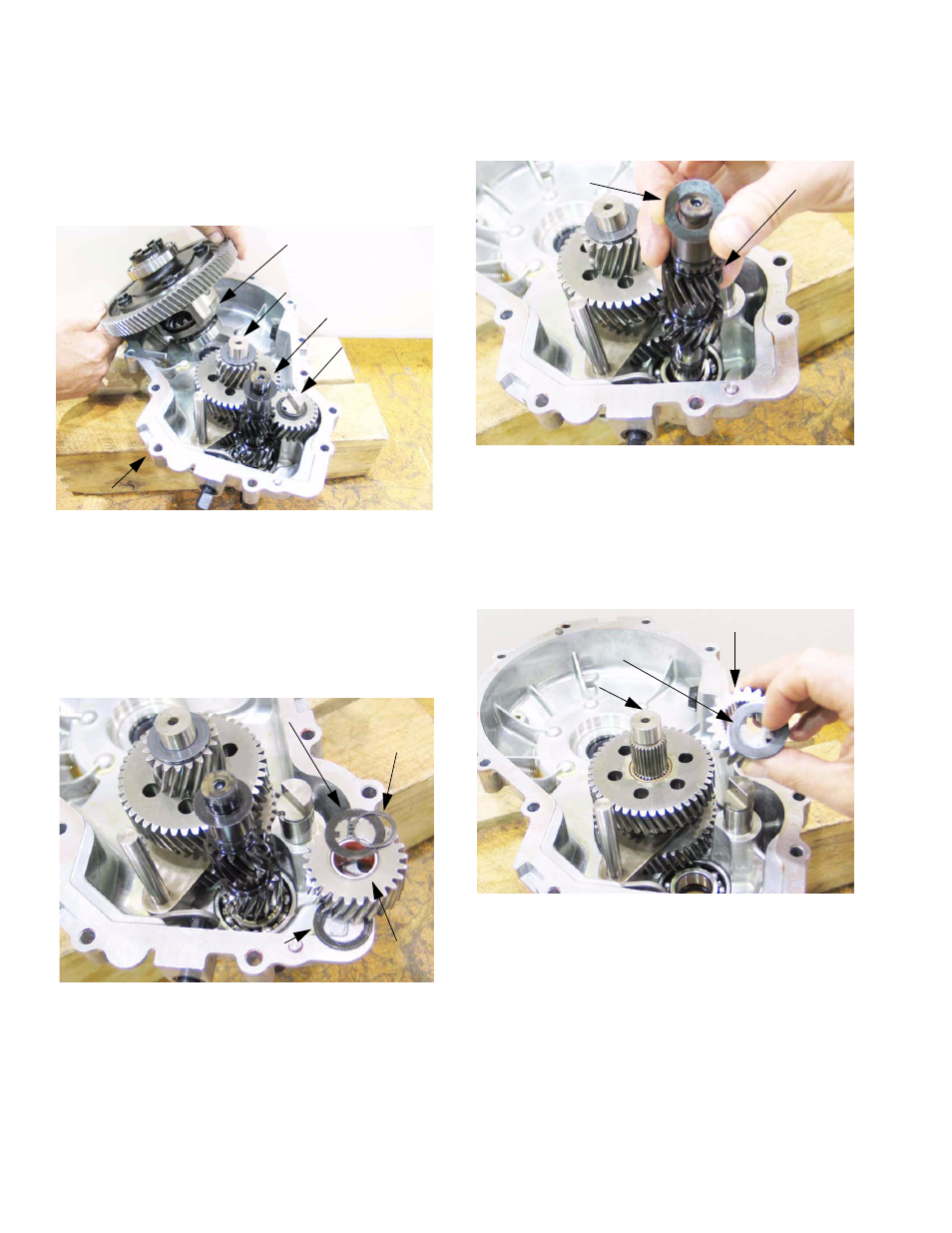

12. TRANSAXLE DISASSEMBLY:
GEAR SET REMOVAL AND DISASSEMBLY
12.1. Carefully lift the differential and ring gear assem-
bly out of the left side housing. Set it aside in a
clean, safe place. See Figure 12.1.
12.2. Remove the retaining ring that secures the idler
gear to the fixed shaft in the housing.
12.3. Lift the following items off of the fixed shaft:
keyed thrust washer, idler gear, and plain thrust
washer (.030” thick). Set them aside in a clean
safe place. See Figure 12.3.
12.4. Lift the input shaft and thin thrust washer (.030”
thick) from the housing. See Figure 12.4.
12.5. Lift the thick thrust washer (.110” thick) and final
drive pinion off of the intermediate shaft. Set
gears aside in a clean safe spot, maintaining
sequence (take note of position and orientation).
See Figure 12.5. Figure 12.1
Differential and
Ring Gear Ass’y.
Intermediate Shaft
Input Shaft
Fixed shaft
Left side Housing
Figure 12.3
Keyed Thrust Washer
Retaining
Ring
Gear
Idler Plain Thrust Washer
Figure 12.4
.030” Thick Thrust Washer Input Shaft
Figure 12.5
.110” Thick Thrust Washer
Final Drive Pinion
Intermediate Shaft
