Poly Bed 4 X 2 Drive System
33
9.35. Lift the 51-tooth sprocket off of the reduction
shaft along with the 19-tooth sprocket from the
input shaft and the link-belt reverse chain.
See Figure 9.35.
9.36. Remove the washers that are behind the sprock-
ets on the input shaft and reduction shaft.
See Figure 9.36.
• A very thin washer (28.3mm I.D.X 34mm O.D.X
0.3mm thick) rides between the 51 tooth
sprocket and the circlip on the reduction shaft.
• A thick washer (22.3mm I.D.X 35mm O.D. X
2mm thick) rides between the dogs on the 19-
tooth sprocket and the shift collar.

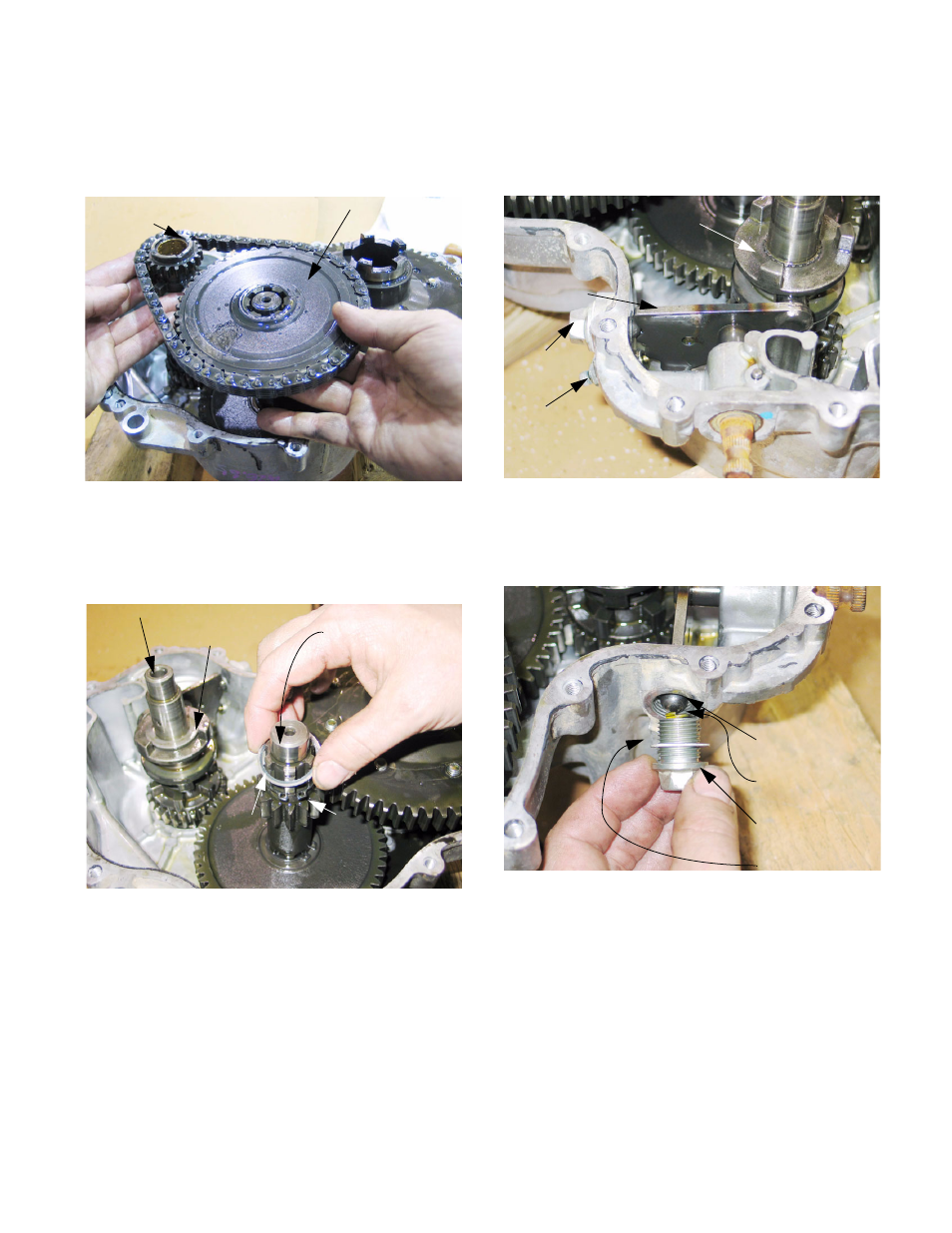

Figure 9.35
19-tooth reverse
sprocket 51-tooth reverse sprocket
Figure 9.36
Thin washer Circlip
Reduction shaft
Input shaft
Thick washer
9.37. The shift collar is trapped onto the input shaft by
the shift lever. To remove the shift lever, it is
easiest to remove the detent assembly and
safety switch. See Figure 9.37.
9.38. Remove the detent bolt using a 14 mm wrench.
See Figure 9.38.
NOTE: The detent ball and spring will come out
when the bolt is removed. Discard the sealing
washer and replace it with a fresh one on reas-
sembly if it shows any signs of leakage.
9.39. Remove the safety switch using a 14 mm
wrench. Discard the sealing washer and replace
it with a fresh one on reassembly if it shows any
signs of leakage.
Figure 9.37
Shift collar
Detent
Safety switch
Shift lever
Figure 9.38
Detent ball
Detent spring
(within bolt)
Detent bolt
Sealing washer
