Poly Bed 4 X 2 Drive System

Transaxle housing and internals:

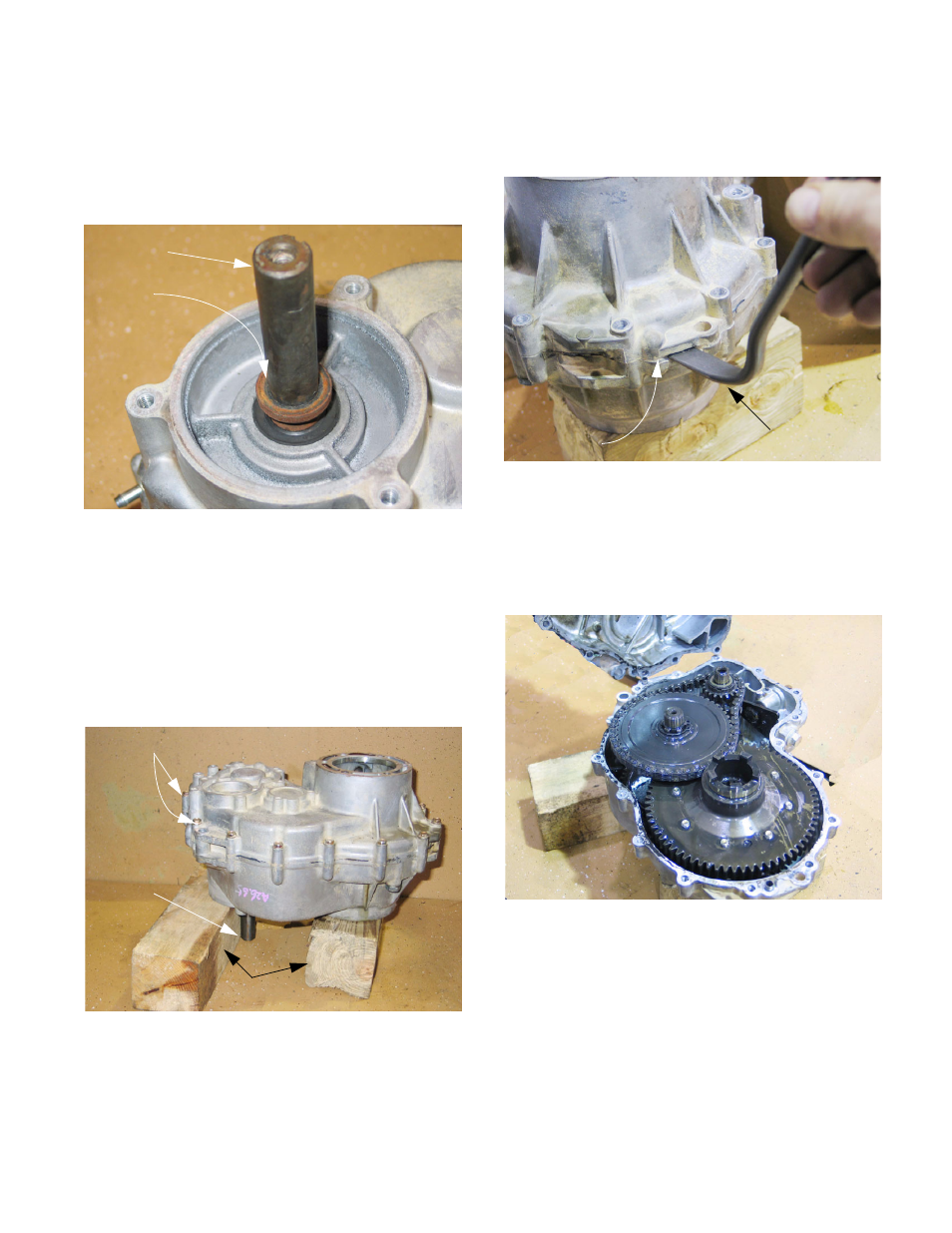

9.26. Prepare to separate the case: Clean any rust or

burrs from the input shaft with emery cloth, and
remove the spacer if it was not taken off previ-
ously. See Figure 9.26.

9.27. Position the case so that it rests securely with

the input shaft down, and the perimeter bolts that
hold the case halves together facing up.

NOTE: Supports are easily improvised from 4X4
dimensional lumber, or similar items.

9.28. Remove the 16 perimeter bolts using a 10 mm

Figure 9.26

Input shaft

Spacer

Figure 9.28

4X4s

IInput shaft

Perimeter bolts

9.29. Use the pry-point recesses that are cast into the

housings to separate the the two halves of the
transmission case. See Figure 9.29.

NOTE: Small pry-bars or brake adjustment
spoons are handy for case separation.

9.30. Carefully lift away the right side half of the trans-

mission housing. See Figure 9.30.

NOTE: Do not gouge the mating surface
between the two halves of the housing.

NOTE: do not lose or damage the dowel pins
that help align the two halves of the housing.

Figure 9.29

Pry point

Brake adjuster spoon

Figure 9.30
