4 X 2 Drive System - (Steel Bed)
75
15.6. Remove the three screws securing the grid
screen to the grid screen holder using a 10 mm
wrench. Remove the grid screen.
See Figure 15.6.
15.7. Remove the two screws that hold the top of the
fan cover to the engine using a 10 mm wrench.
Install one or two of the nuts that held the finger
guard in place. Thread it on just far enough to
keep the nut from falling off. See Figure 15.7.
15.8. Pull the fan cover out just far enough to provide
access to the fuel pump. The cover will not
come completely off with the engine in place.

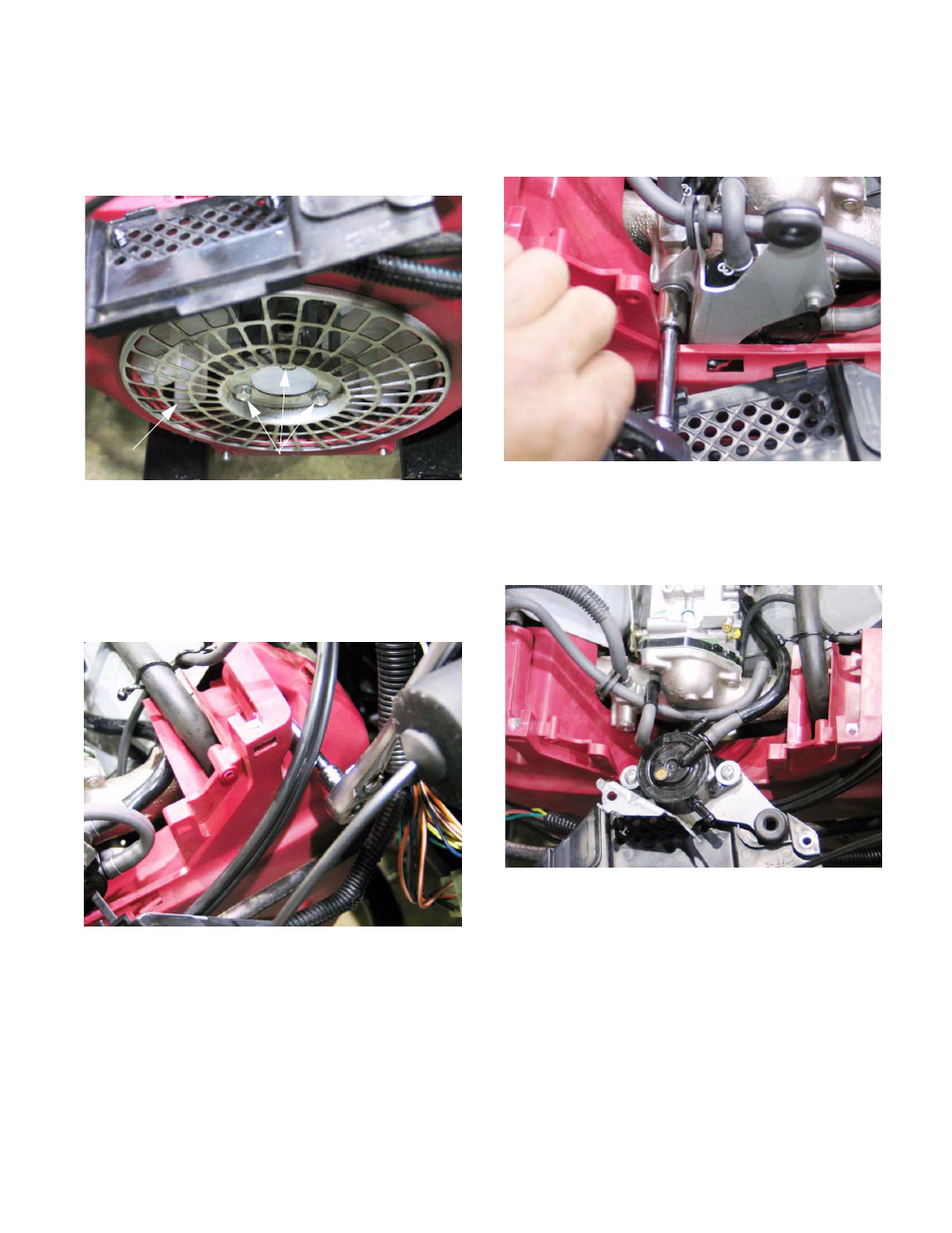

Figure 15.6
Grid Screen Screws
Figure 15.7
15.9. Remove the fuel pump bracket from the intake
manifold using a 10 mm socket.
See Figure 15.9.
15.10.Note the position of the hoses that connect to
the fuel pump. Disconnect the hoses, and
remove the fuel pump. See Figure 15.10.
