Poly Bed 4 X 2 Drive System
21
6.6. Lift the bed. Remove the exhaust pipe and the
CVT assembly, including the housing, as
described in the CVT section of this manual.
See Figure 6.6.
6.7. Index the forward-neutral-reverse shift arm on
the transaxle to the splined shaft that it mounts
to. Remove the clamp bolt that secures it using
a 10 mm wrench.
6.8. Remove the two bolts that hold the shift cable
bracket to the transaxle using a 12 mm wrench.
See Figure 6.8.
6.9. Remove the shift arm from the shaft, and move
the cable out of the way.

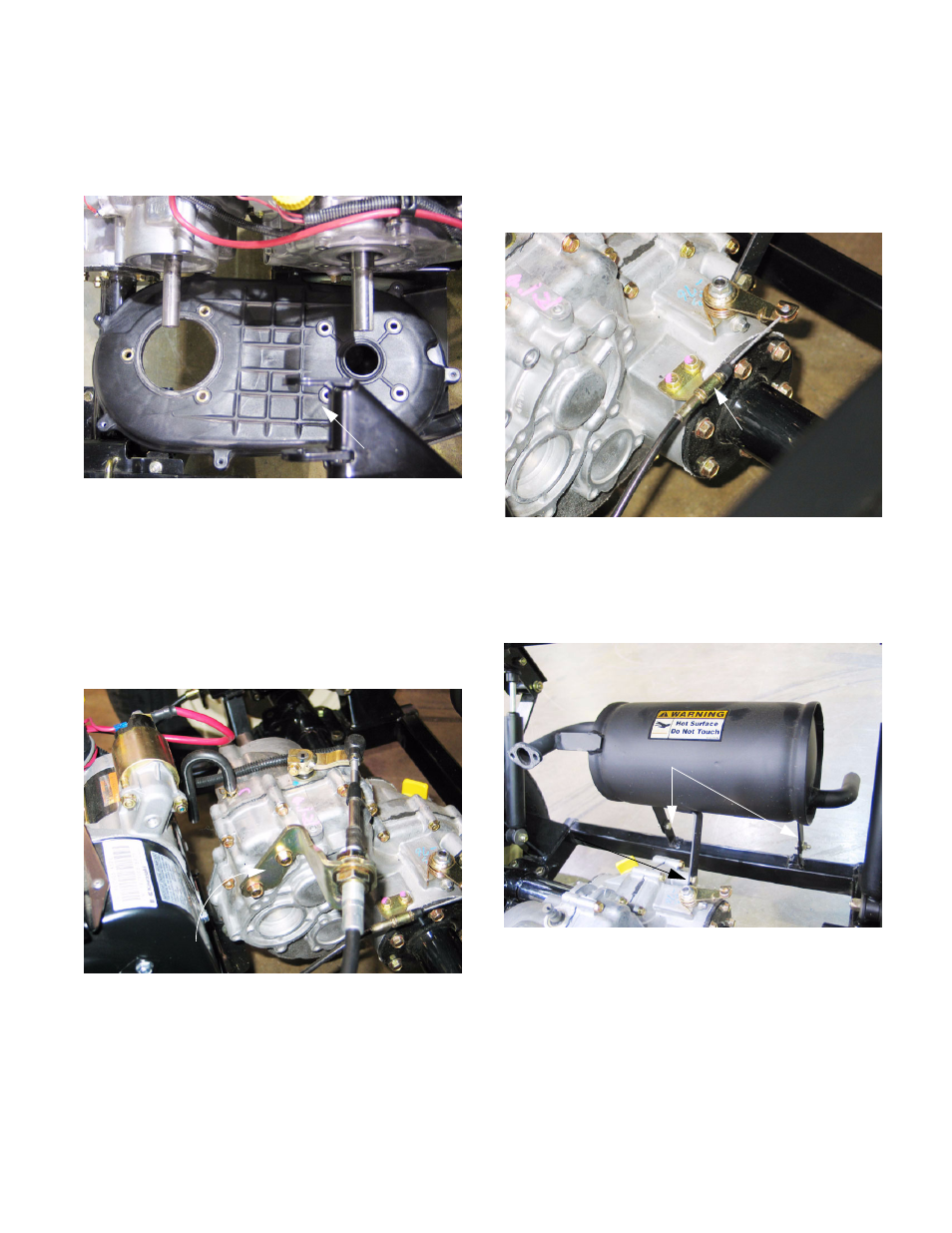

Figure 6.6
CVT housing
Figure 6.8
Shift cable bracket
6.10. Remove the two bolts that hold the differential
lock cable bracket to the transaxle using a 10
mm wrench. There will be enough slack in the
cable to permit the barrel end to be disengaged
from the differential lock arm on the transaxle.
See Figure 6.10.
6.11. Unbolt the muffler from the frame using a pair of
1/2” wrenches. Unbolt the muffler from the tran-
saxle using a 13 mm wrench. See Figure 6.11.
6.12. Release the parking brake.
Figure 6.10
Differential lock
control cable
bracket
Figure 6.11
Transaxle mount
Frame mounts
