4 X 2 Drive System - (Steel Bed)
56
7.12. Carefully roll the drive belt off of the driven pulley
on the transaxle. See Figure 7.12.
7.13. Match-mark the differential lock lever to the
splined shaft that it clamps to.
7.14. Loosen the clamp bolt that pinches the differen-
tial lock lever tight on the shaft using a pair of 7/
16” wrenches. Carefully lift the lever off of the
shaft. See Figure 7.14.
NOTE: Alternatively, the cotter pin and clevis pin
that secure the actuator shaft to the lever can be
removed.
7.15. Remove the three bolts that hold the differential
lock actuator(servo) bracket to the transaxle
using a 9/16” wrench.
7.16. Lift the differential lock actuator and bracket out
of the way. It is not necessary to disconnect the
vacuum lines nor the vent lines.
7.17. Unplug the neutral switch wires from the neutral
switch, located on top of the forward-neutral-
reverse actuator mounting bracket.
7.18. Remove the screw that connects the forward-
neutral-reverse actuator to the shift wedge using
a 1/4” wrench. disconnect the actuator from the
shift wedge. See Figure 7.18.
7.19. Remove the bolt holding the bracket for the for-
ward-neutral-reverse actuator to the side of the
transaxle using a 1/2” wrench.
7.20. Remove the bolts holding the bracket to the top
of the transaxle using a 3/8” wrench and a 7/16”
wrench. See Figure 7.20.

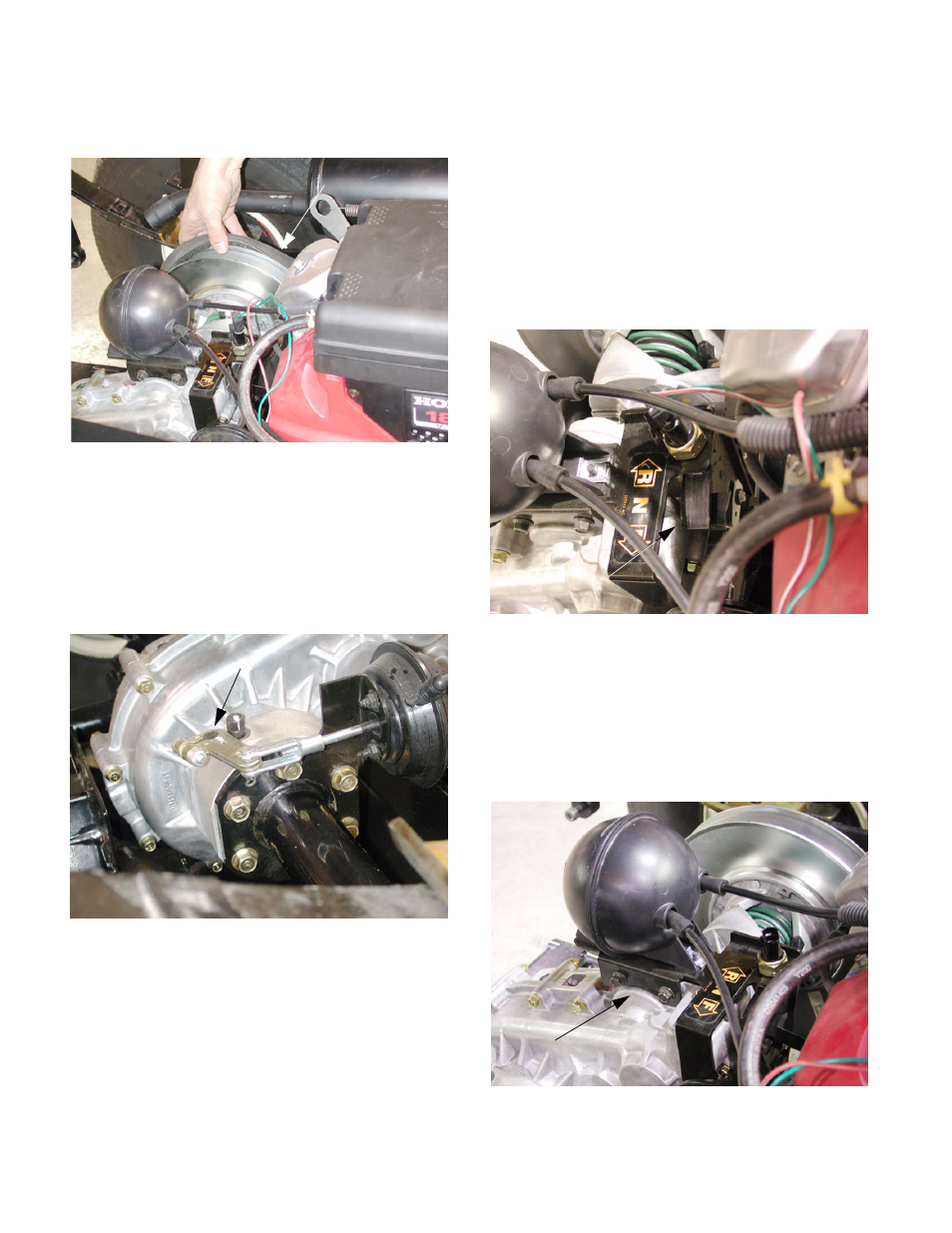

Figure 7.12
Drive Belt
Figure 7.14
Differential Lock Lever
Figure 7.18
Shift Wedge
Figure 7.20
Accumulator
Bracket
