4 X 2 Drive System - (Steel Bed)
69

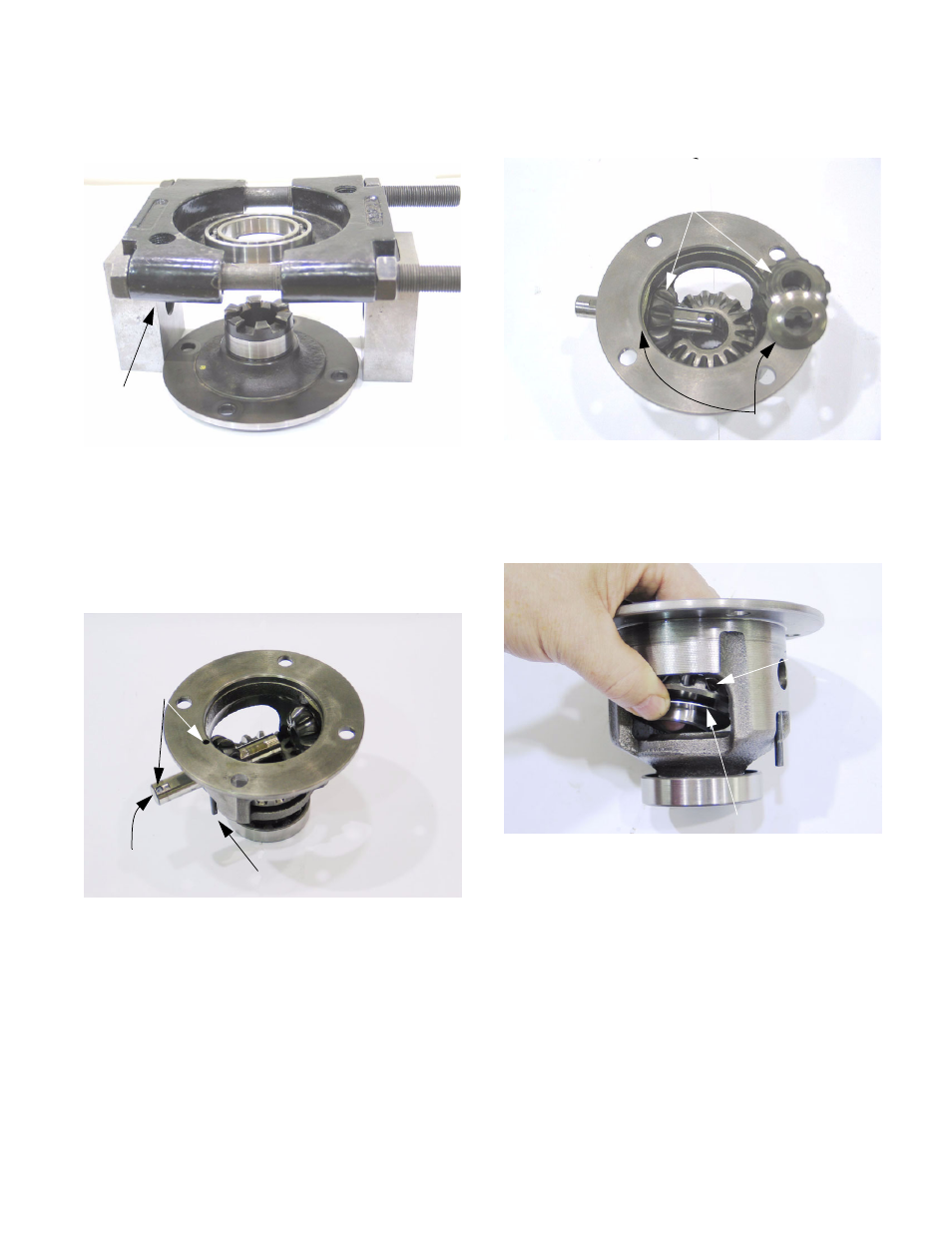

13.7. If it is necessary to remove the bearing, use a
bearing puller. See Figure 13.7.
13.8. Position the differential housing so that a flat-
nosed drift can be used to drive-out the tension
pin that secures the cross-shaft.
13.9. Drive out the pin and remove the cross-shaft.
See Figure 13.9.
Figure 13.7
Bearing
Puller
Figure 13.9
Cross-Shaft
Pin
for Pin
Hole
13.10.Lift the miter gears and thrust washers out of the
differential housing. See Figure 13.10.
13.11. The axle shaft miter gear, and the thrust washer
that goes beneath it can be lifted out of the end
plate. See Figure 13.11.
13.12.Check the bearing for rough rotation, or any
other signs of damage.
NOTE: If the bearing is removed, it should be
replaced with a new bearing. If the bearing is
good, do not remove it.
Figure 13.10
Thrust Washers
Cross-shaft Miter Gears
Figure 13.11
Thrust Washer
Axle shaft
Miter Gear
