Preparation for Use

Model 2090 Multi-Device Controller

base interface provides a secondary interface reserved for

future expansion.

Additional devices (for example: Remote Air Polarized

Tripods, LISNs, EUTs, etc.) can be connected in any

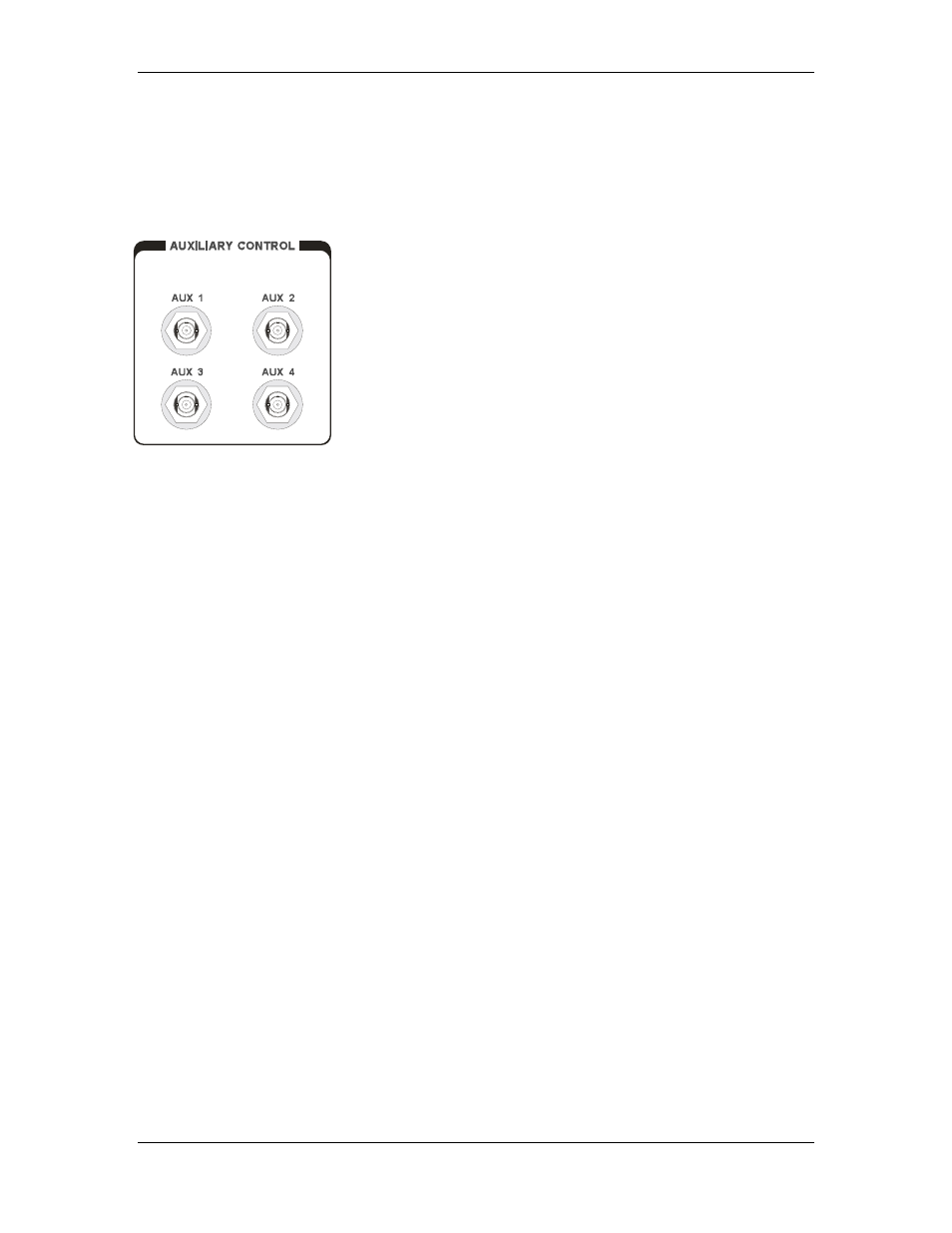

sequence to the four Auxiliary Control Ports (located on the

rear panel). If there are less than four auxiliary devices

connected to the controller, it is recommended (not

required) that these devices be connected in numerical

order, starting with the Auxiliary Control Port 1. The

Auxiliary Ports are also standard ST fiber optic connectors.

Auxiliary Port Enabled products, such as air polarized

tripods, are provided with a single fiber cable with ST

connectors at both ends. Either end may be attached to the

2090.

NOTE: Fiber optic cabling for each device should not be

allowed to hang unsupported from the rear panel of this

controller. The fibers and connectors are easily broken if

twisted or bent too much. Keep the fiber optic cables as

straight as possible from the connector to the protective

sheath.
