Model 2090 Multi-Device Controller
DEVICE ONE
DEC POLARIZATION / FLOAT / SPEED
HOR / UP / FAST
VERT / DN / SLOW
INCRM DECRM ENTER
PARAM INC STOP DOWN
CCW
UP
CW
DOWN
CCW
CURRENT
POSITION
UP
CW
RMT
ADDR
8. 8. 8. 8. 8.
1
2
3
8
6
5
4
7

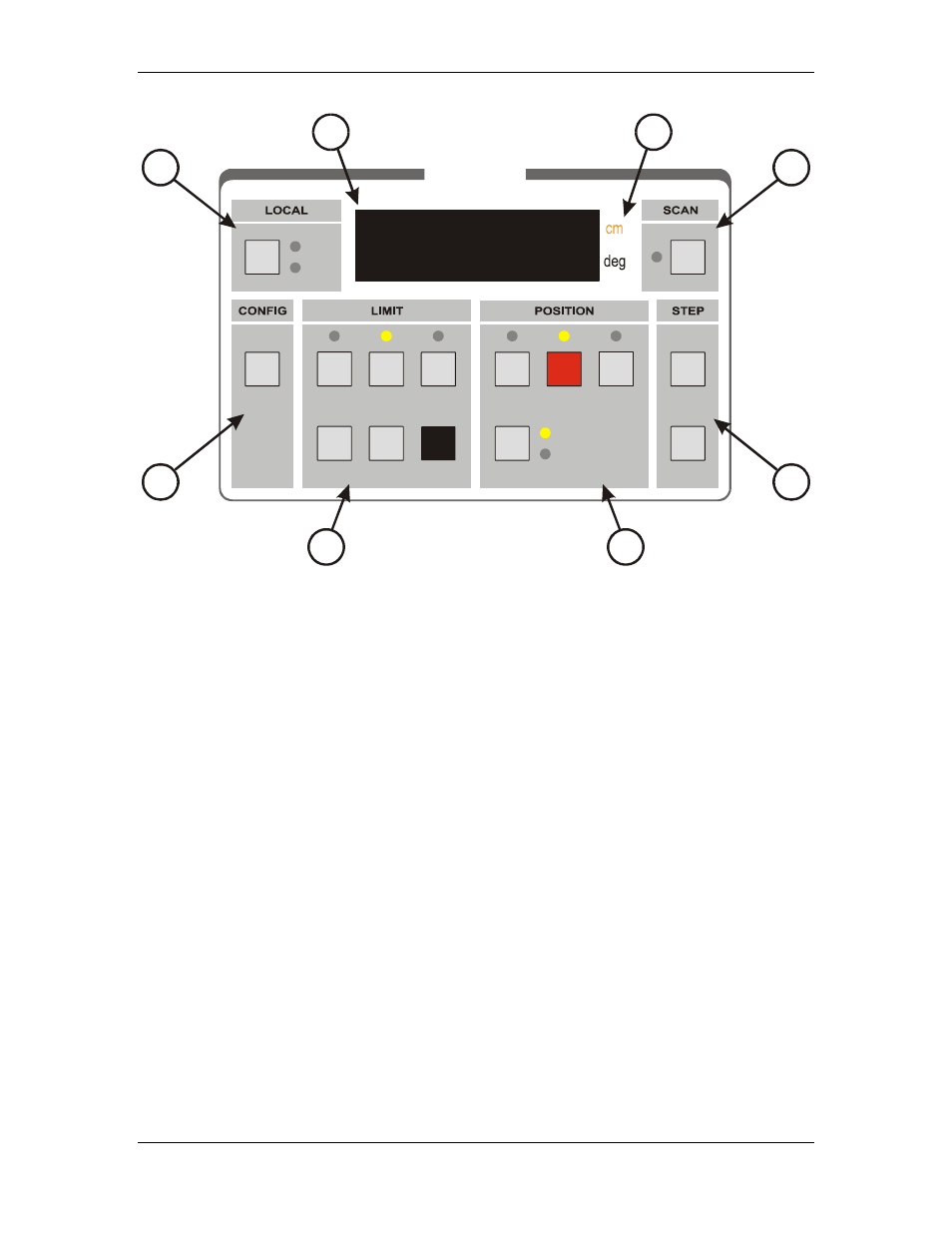

Figure 2 Model 2090 Device Control Block
1. LOCAL KEY AND INDICATORS
LOCAL key – The LOCAL key is a multi-function key
which has a different behavior depending on the status of
the Model 2090.
a. Pressing the LOCAL key while the corresponding
primary device is in remote control mode (RMT
indicator lit) will return the controller to local control
mode.
b. For a variable speed device, pressing the LOCAL key
while in local mode and viewing the position displays
will activate the speed selection mode, causing the
current speed selection to be displayed momentarily in
the primary display. The INCRM and DECRM keys
can then be used to adjust the speed selection.
