Page 31: Figure 4 model 2090 option 1 back panel, Optional back panel description
Model 2090 Multi-Device Controller
OPTIONAL BACK PANEL DESCRIPTION
NC C NO
NC C NO
Auxiliary Control
Switches
NC C NO
SW 1
SW 2
SW 3
SW 4

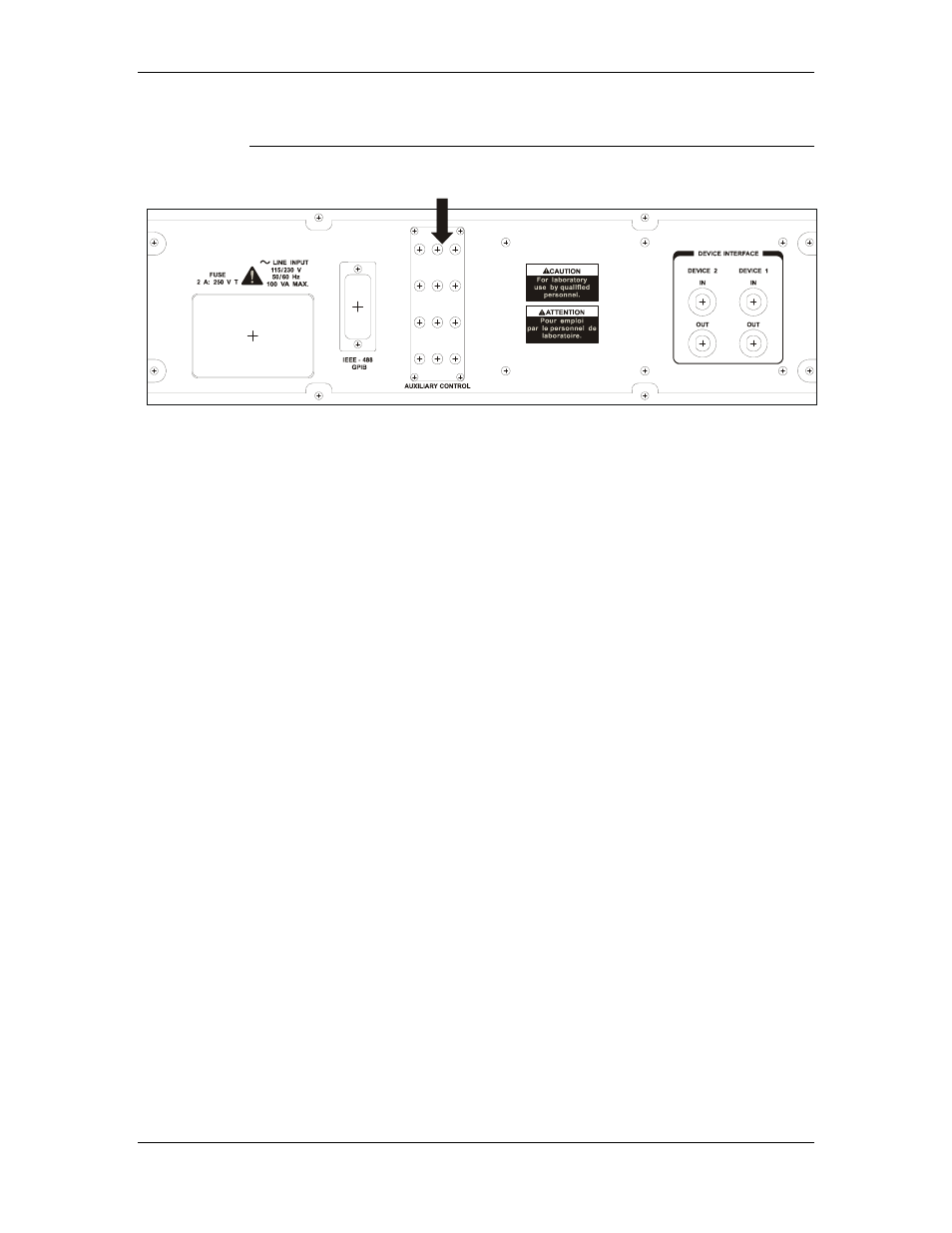

Figure 4 Model 2090 Option 1 Back Panel
AUXILIARY CONTROL – Auxiliary devices use a single-pole double-throw RF relay to control simple
on/off operation. The connection type is SMA.
©ETS-Lindgren, April 2006
31
Revision G– P#399199
