Connecting
external antennas

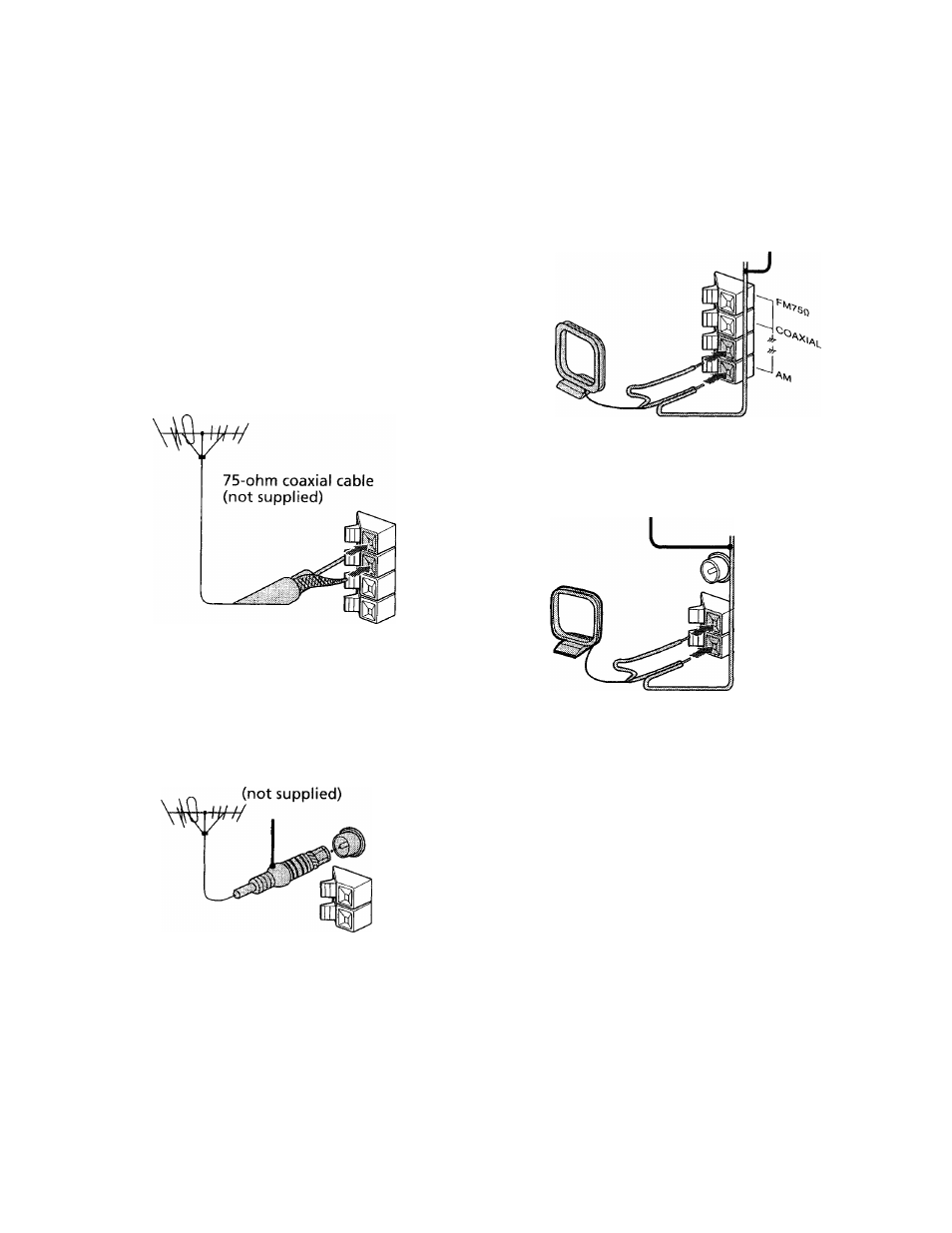

Connect the outdoor antenna to improve the
reception. Refer to the instructions of each
component.
FM antenna
Connect the optional FM outdoor antenna.
You can also use the TV antenna instead.
Jack type ®
So
Co,
‘Ac
A m
Jack type ®
lEC standard socket
connector
'Ac
4-
A m
AM antenna
Connect a 6- to 15- meter (20- to 50- feet)
insulated wire to the AM antenna terminal.
Leave the supplied AM loop antenna
connected.
Jack type ®
Insulated wire (not supplied)
Jack type ®
Insulated wire (not supplied)
So
A m
