Factory Repair Parts A-17
D
isplay Assembly Components
The display assembly consists of the LCD assembly and its related components.
It also contains the LED board, which provides visual indications of many of
the computer’s basic functions. The microphone assembly is mounted inside the
right hinge cover of the display.
Some parts of the display assembly can be removed and replaced without
removing the assembly from the computer. Others require that the display
assembly be removed. The following subsections describe the removal of dis-
play assembly parts.
Display-Assembly EMI Shield

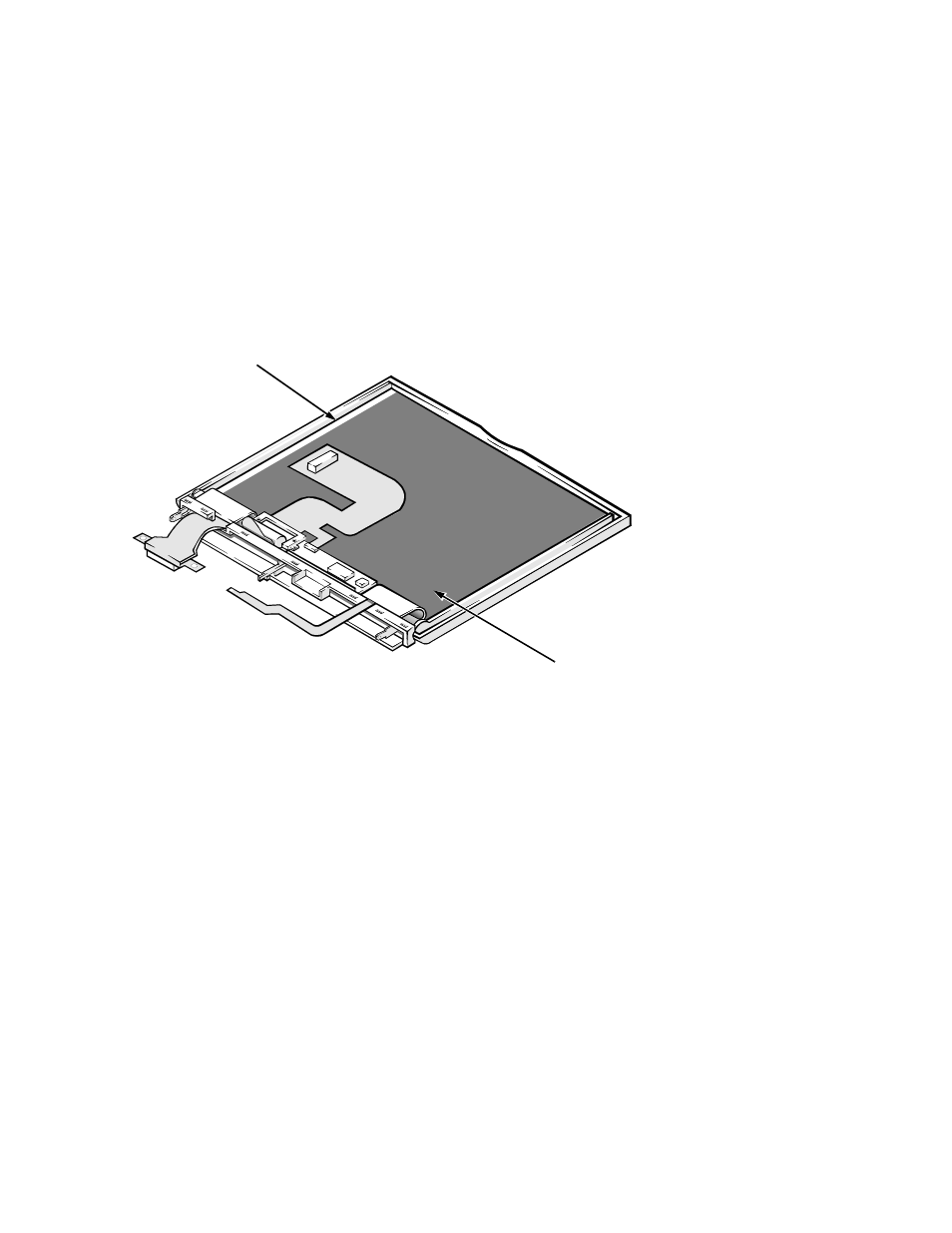

Figure A-4. Display-Assembly EMI Shield Removal
To remove the display-assembly EMI shield, follow these steps:
1. Remove the display assembly from the computer.
See “Display Assembly” in Chapter 4.
2. Remove the display assembly bezel.
See “Display Assembly Bezel” in Chapter 4.
3. Remove the LCD assembly.
See “LCD Assembly” in Chapter 4.
4. Remove the display-assembly interface cable.
See “Display-Assembly Interface Cable” in Chapter 4.
display assembly case
EMI shield
