Keyboard/keypad/mouse connector shield – Dell Latitude Xpi CD User Manual
Page 103
Factory Repair Parts
A-21
Keyboard/Keypad/Mouse Connector Shield

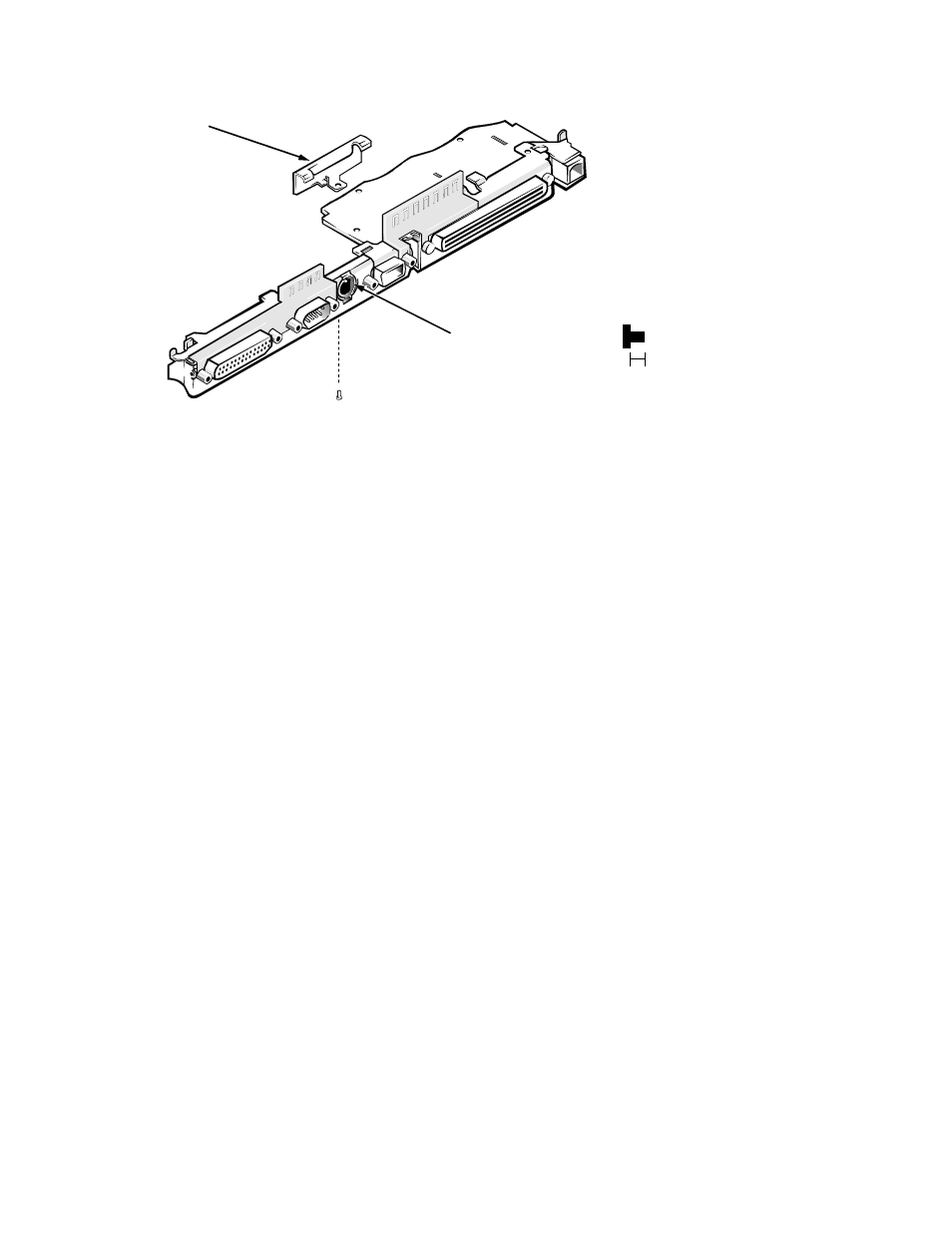

Figure A-6. Keyboard/Keypad/Mouse Connector Shield Removal
Two tabs on the keyboard/keypad/mouse connector shield engage two associ-
ated slots on the I/O panel near the keyboard/keypad/mouse connector.
Retaining screw D4 attaches the bottom of the shield to the bottom of the I/O
panel. To remove the shield, remove retaining screw D4, rotate the bottom of
the shield toward the back of the system board assembly, and lift the shield off
the I/O panel.
D4 (3 mm)
keyboard/keypad/
mouse connector
connector shield
3 mm
