4-10 Dell Latitude XPi CD Service Manual
P
almrest Assembly
The palmrest assembly consists of the trackball and the keyboard.

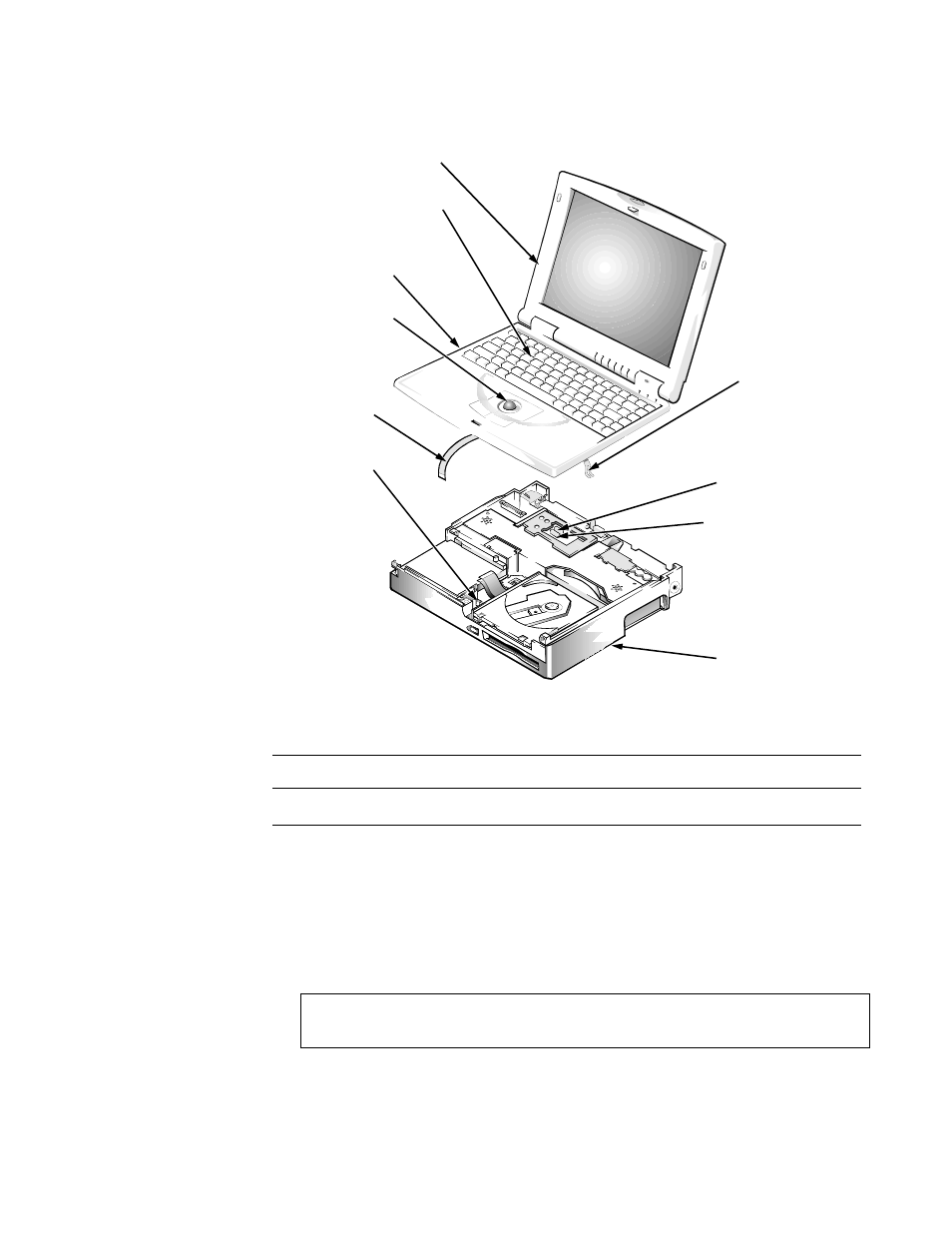

Figure 4-9. Palmrest Assembly Removal
To remove the palmrest assembly, follow these steps:
1. Remove any installed PC Card(s).
2. Disconnect any cables attached to the audio ports.
3. Remove the hard-disk drive assembly.
Part or Assembly Name Order Name
Palmrest assembly with sound SVC,ASSY,PLMRST,LXPiCD
CAUTION: Make sure the work surface is clean to prevent scratch-
ing the computer cover.
connector JTB
connector JKB1
connector JKB2
palmrest assembly
display assembly
trackball cable
trackball assembly
keyboard
bottom case assembly
CD-ROM EMI
clip
