4-36 Dell Latitude XPi CD Service Manual
Reserve Battery

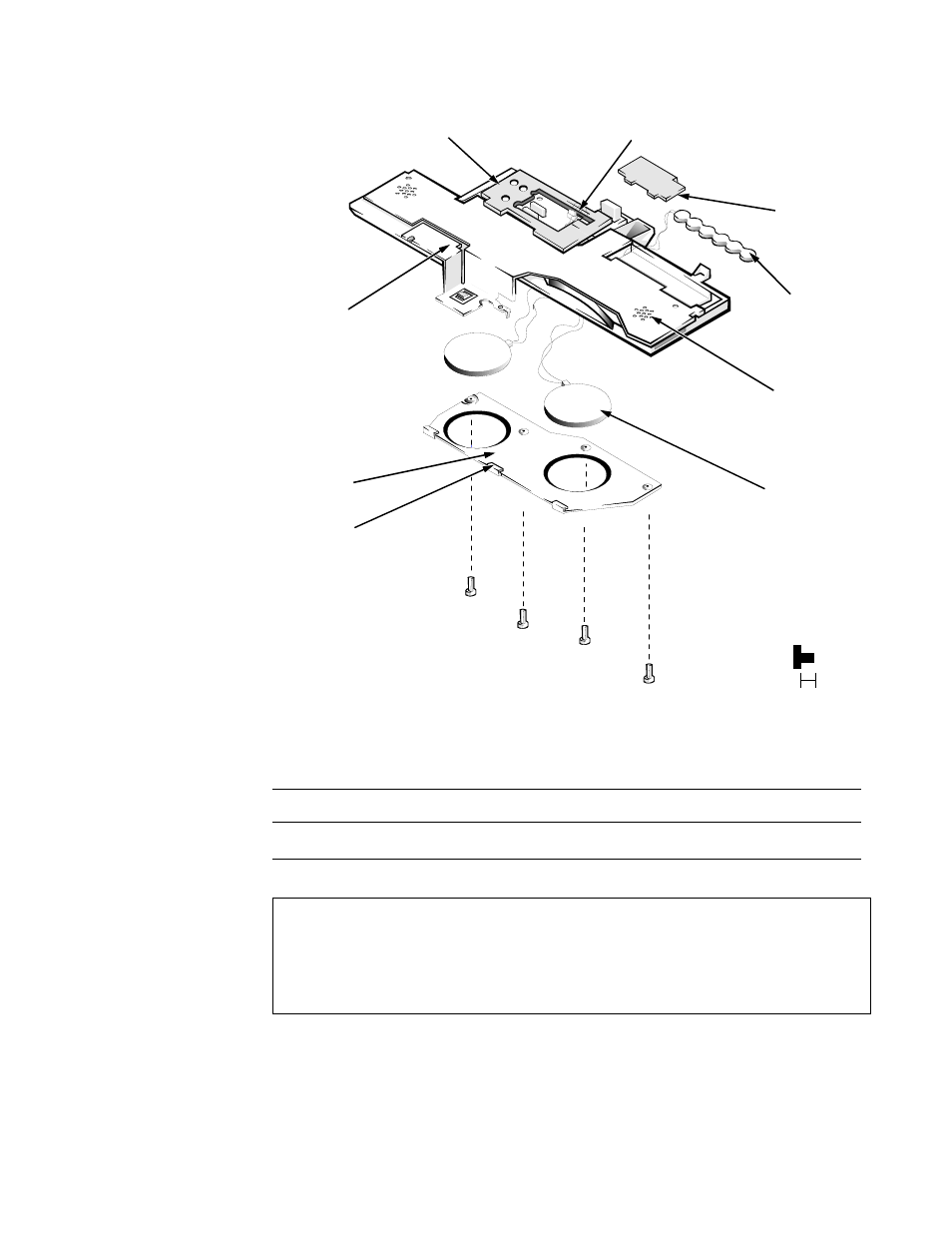

Figure 4-26. Reserve Battery Removal
Part or Assembly Name Order Name
Reserve battery SVC,BTRY,RSRV,LXP
CAUTION: The reserve battery provides power to the computer’s RTC
and NVRAM when the computer is turned off. Removing the battery
causes the computer to lose its date and time information as well as user-
settable parameters in the NVRAM. If possible, make a copy of this
information before you remove the reserve battery.
reserve
battery
connector JRBAT
F1 (3 mm)
F2 (3 mm)
F3 (3 mm)
F4 (3 mm)
speaker/
fan bracket
superpart
middle tab
3 mm
speaker (2)
speaker (2)
superpart
serial EMI
clip
superpart docking EMI clip
