4-38 Dell Latitude XPi CD Service Manual
System Board Assembly

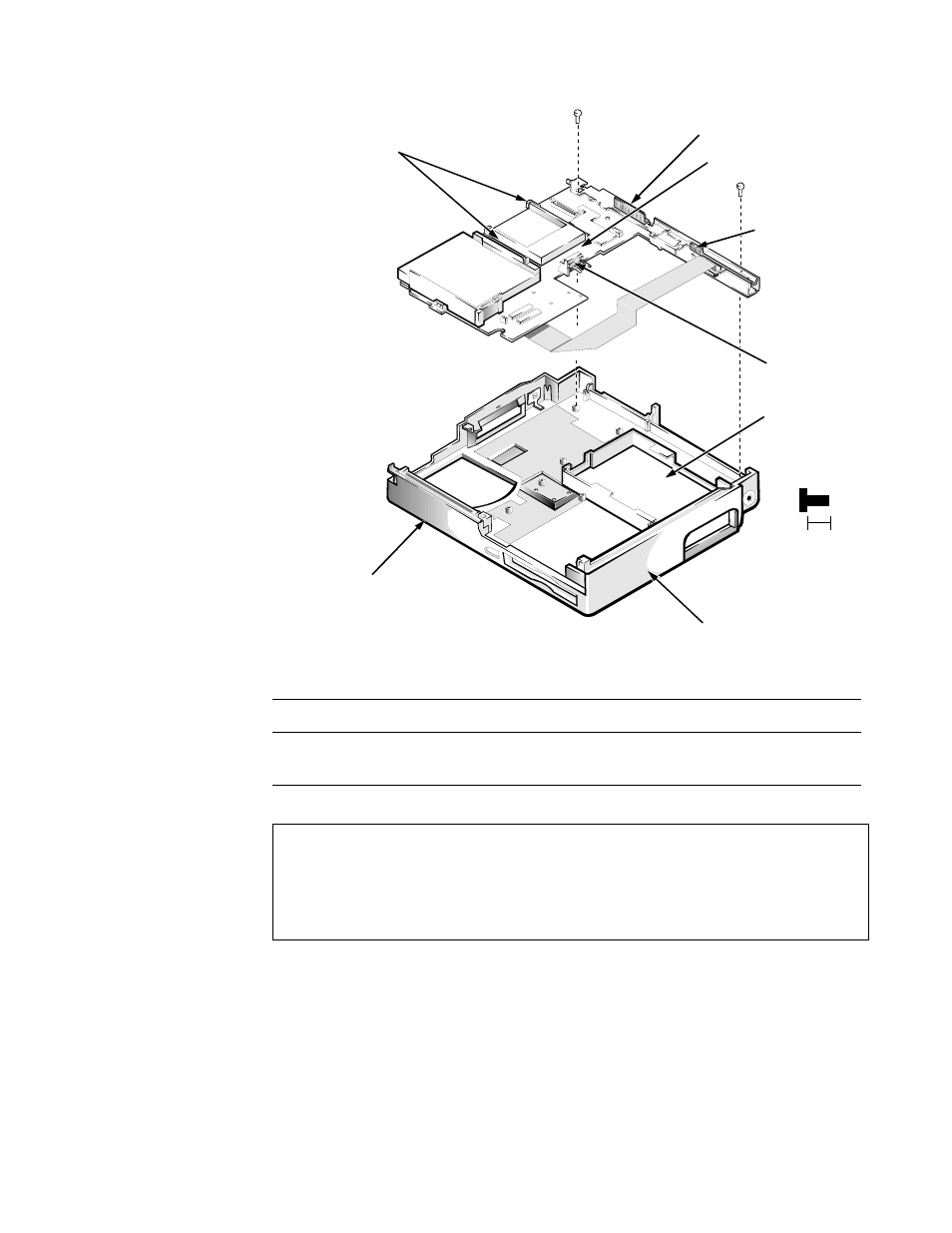

Figure 4-27. System Board Assembly Removal
The system board’s BIOS chip contains the system service tag number, which is
also visible on a bar-code label on the bottom of the computer. The replacement
kit for the system board assembly includes a diskette that provides a utility for
transferring the service tag number to the replacement system board assembly.
Part or Assembly Name Order Name
System board assembly SVC,SYS,PLN,LXPiCD-150ST,
WB,0M
CAUTION: Dell uses the system’s service tag number to maintain a his-
tory of the computer and its maintenance services. Do not neglect to
transfer the service tag number to the replacement system board assem-
bly (see step 3 of “Replacing the System Board Assembly” found later in
this section).
system board assembly
bottom case assembly
SB1 (5 mm)
SB2 (5 mm)
5 mm
main battery
connector
battery
compartment
PC Card
ejectors
molded tabs (3)
I/O docking EMI clip
I/O serial EMI clip
