Removing and Replacing Parts 4-9
Memory Modules

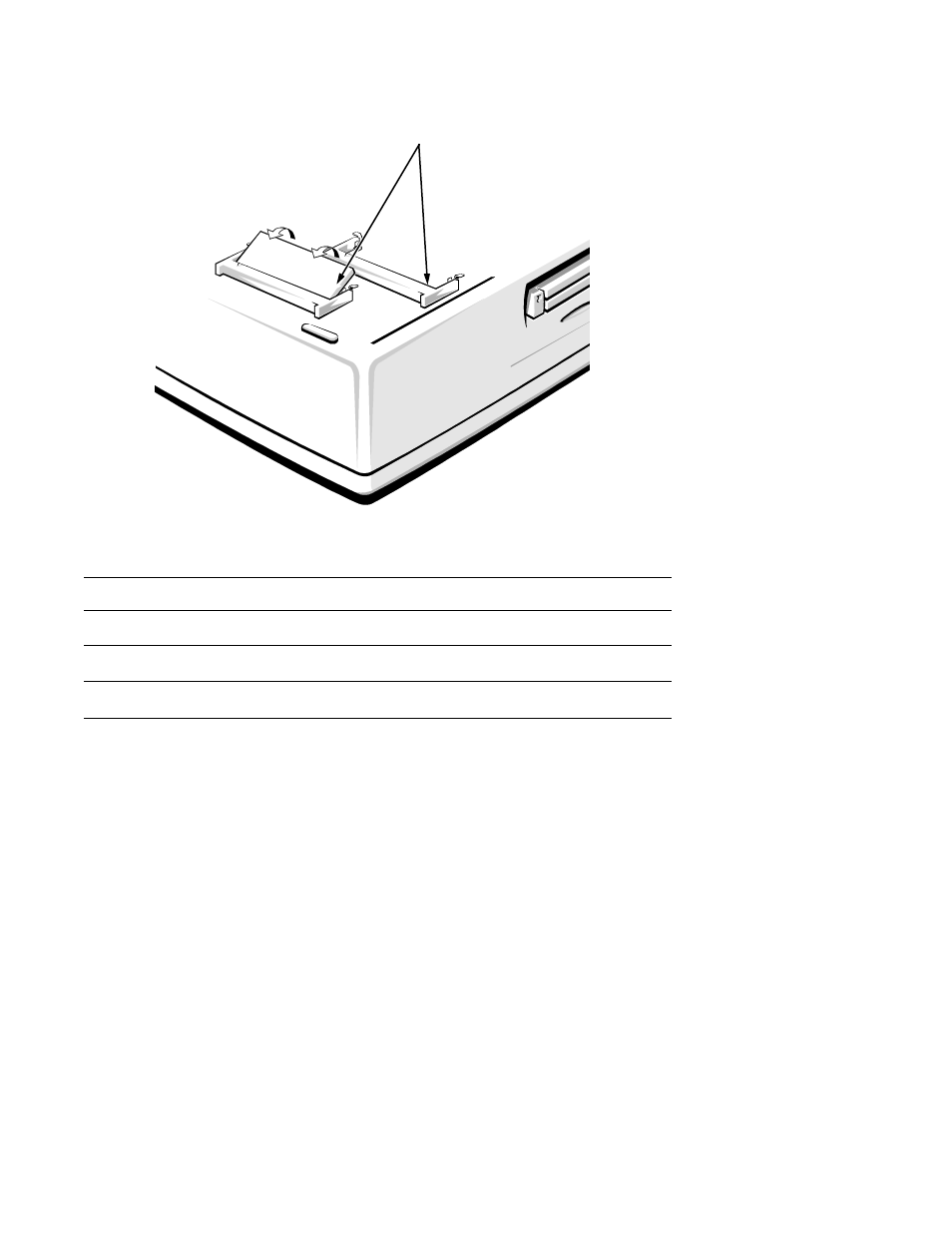

Figure 4-8. Memory Module Removal
To remove a memory module, follow these steps:
1. Remove the memory compartment cover.
2. To release a memory module from its socket, gently push outward on
each of the memory module’s two metal retaining clips.
The memory module should rotate upward out of its retaining clips.
3. Lift the memory module out of its socket.
Memory modules can be installed only one way. Do not attempt to force the
memory module into the socket. Align the notch in one corner of the memory
module with the corresponding indent in the memory module socket.
Part or Assembly Name Order Name
Memory module, 4-MB CUS,MEM,4M,LXP4D/T,LXPi
Memory module, 8-MB CUS,MEM,8M,LXP4D/T,LXPi
Memory module, 16-MB CUS,MEM,16M,LXP4D/T,LXPi
memory module
sockets
