4-20 Dell Latitude XPi CD Service Manual
Display Assembly Bezel
l

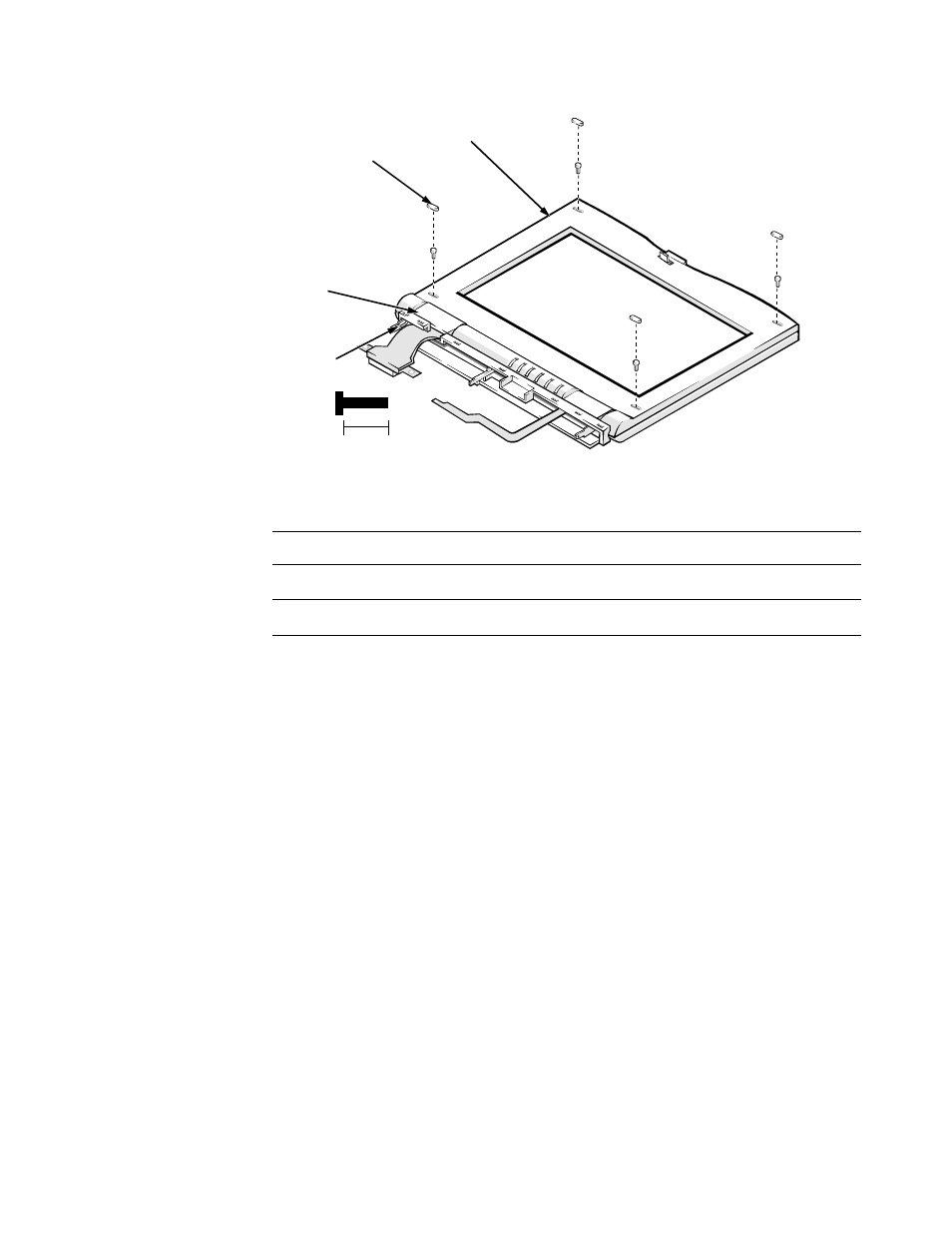

Figure 4-15. Display Assembly Bezel Removal
To remove the display assembly bezel, follow these steps:
1. Use a scribe to pry the retaining screw covers out of the screw holes in
the bezel.
2. Remove retaining screws H1, H2, H3, and H4.
3. Separate the bezel from the display assembly.
Insert your fingertips between the bezel and the LCD, and lift upward on the
bezel to release the hidden tabs just above the indicator panel, as well as the
hidden tabs beneath each side of the bezel. Then slide the bezel toward the
front of the computer, and lift it up and away from the display assembly.
When replacing the bezel, orient the bezel in its original position on the display
assembly and press firmly near each tab until it snaps into position. Be careful
to have the display latch and spring properly assembled.
Part or Assembly Name Order Name
Bezel service kit, 12.1-inch SVC,BZL,LCD,TFT,LXPiCD
Display case service kit, 12.1-inch SVC,CVR,BK,TFT,LXPi+
screw covers (4)
H1 (10 mm)
H2 (10 mm)
H3 (10 mm)
H4 (10 mm)
10 mm
display assembly bezel
display
assembly
base
hinge
