A-20 Dell Latitude XPi CD Service Manual
S
ystem-Board Assembly Components

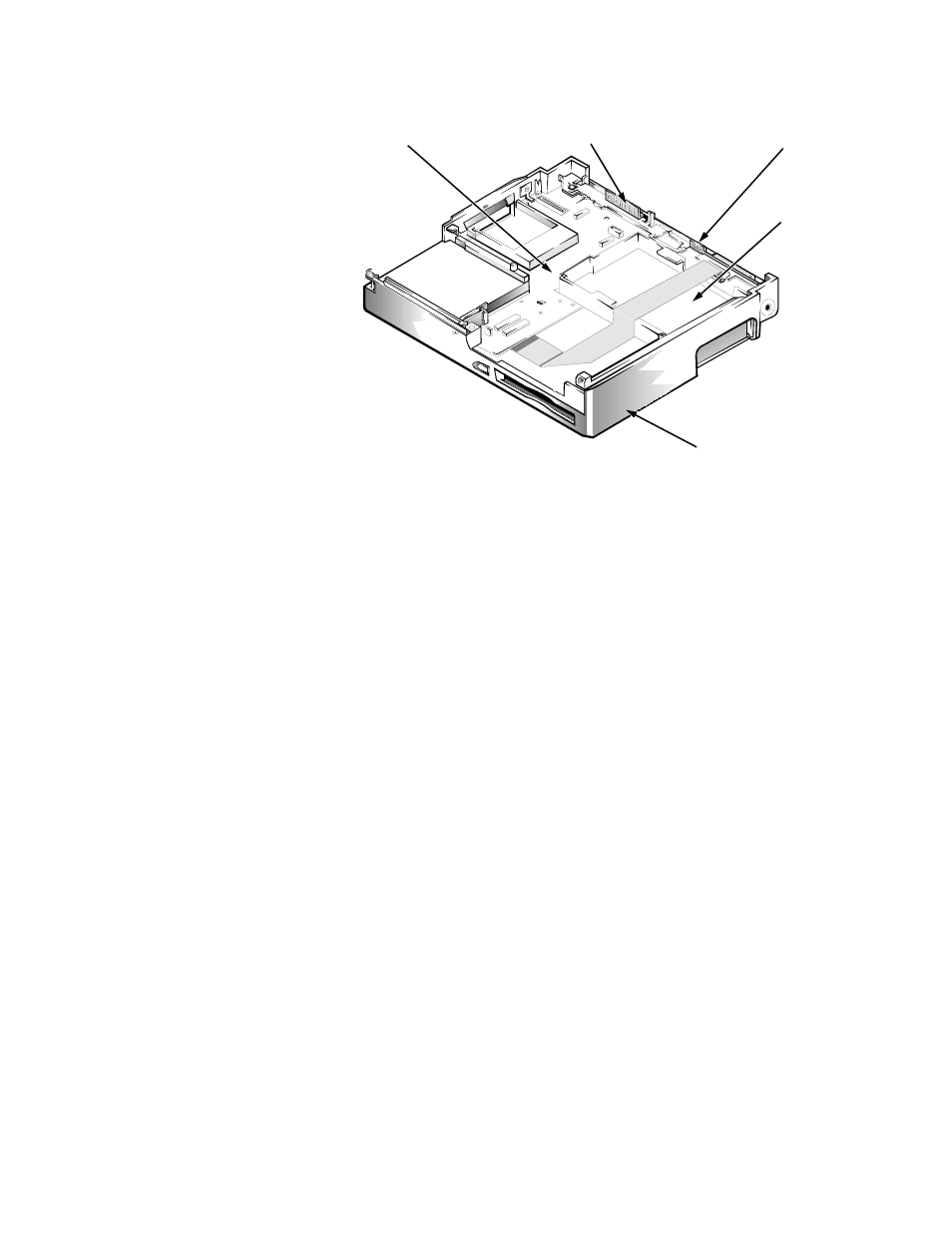

Figure A-5. System Board Assembly in the Bottom Case Assembly
To remove a part of the system board assembly, Dell recommends that you first
remove the assembly as described in “System Board Assembly” in Chapter 4.
Then follow the instructions described in the following subsections to remove
parts of the system board assembly.
System Board
To remove and replace the system board, transfer the following items from the
system board assembly to the replacement system board assembly:
• Any installed memory modules — See “Memory Modules” in Chapter 4.
• Keyboard/keypad/mouse connector shield — See the next subsection,
“Keyboard/Keypad/Mouse Connector Shield.”
• I/O interface cable — See “I/O Interface Cable” found later in this
appendix.
• I/O board — See “I/O Board” found later in this section.
bottom case assembly
system board assembly
I/O interface
cable
I/O docking EMI clip
I/O serial
EMI clip
