Page 79
Removing and Replacing Parts
4-41
3.1-V Power Supply Board

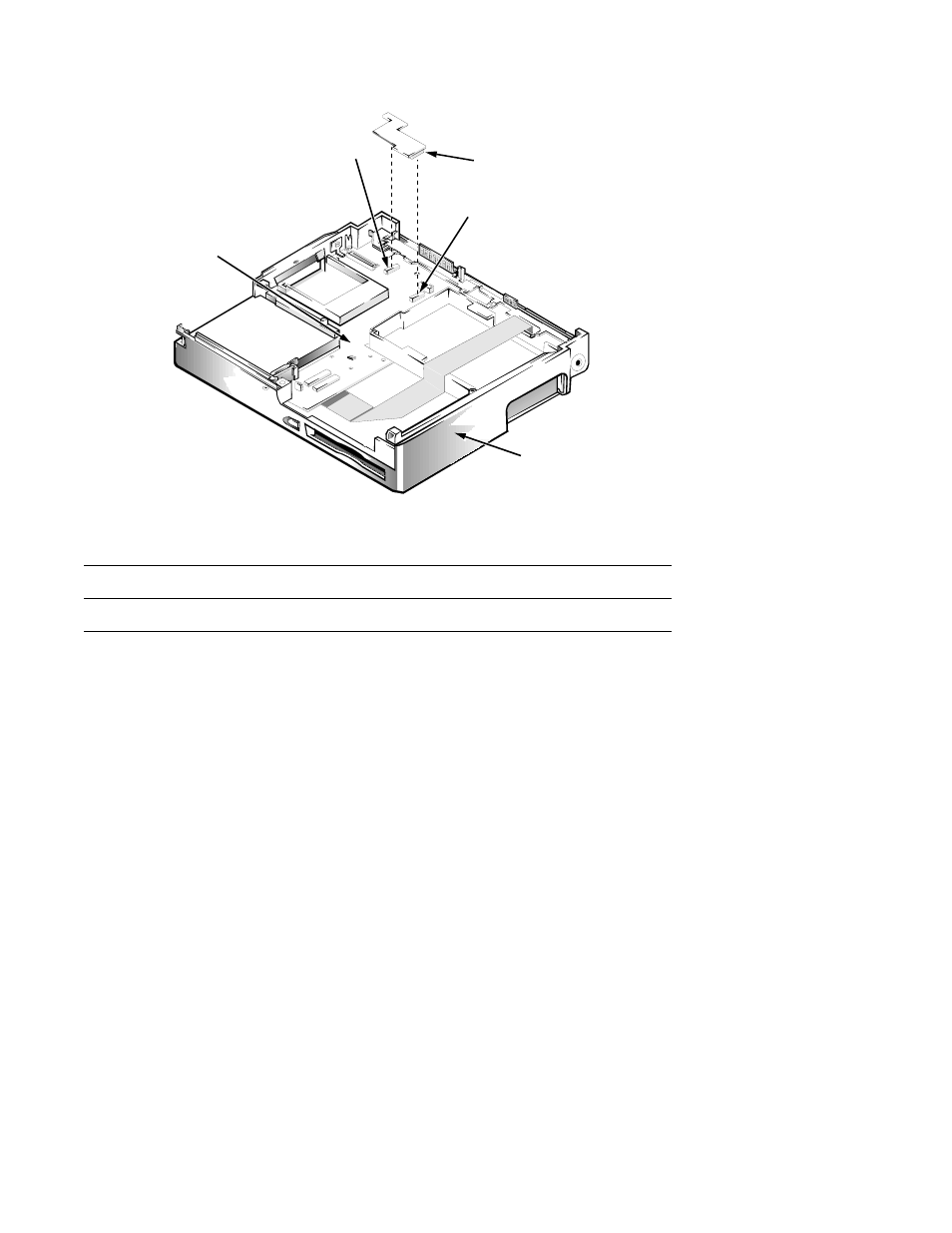

Figure 4-29. 3.1-V Power Supply Board Removal
To remove the 3.1-V power supply board, follow these steps:
1. Remove the palmrest assembly
2. Remove the superpart assembly.
3. Remove the 3.1-V power supply board from the system board.
The power supply board is held in place on the system board by connectors
JPS1 and JPS2.
Part or Assembly Name
Order Name
3.1-V power supply board
CRD,PWR SPLY,LXPiCD,V3.1,NBK
connector JPS1
connector JPS2
bottom case assembly
system board
power supply board
with insulator
