4-6 Dell Latitude XPi CD Service Manual
F
ield-Replaceable Parts and Assemblies

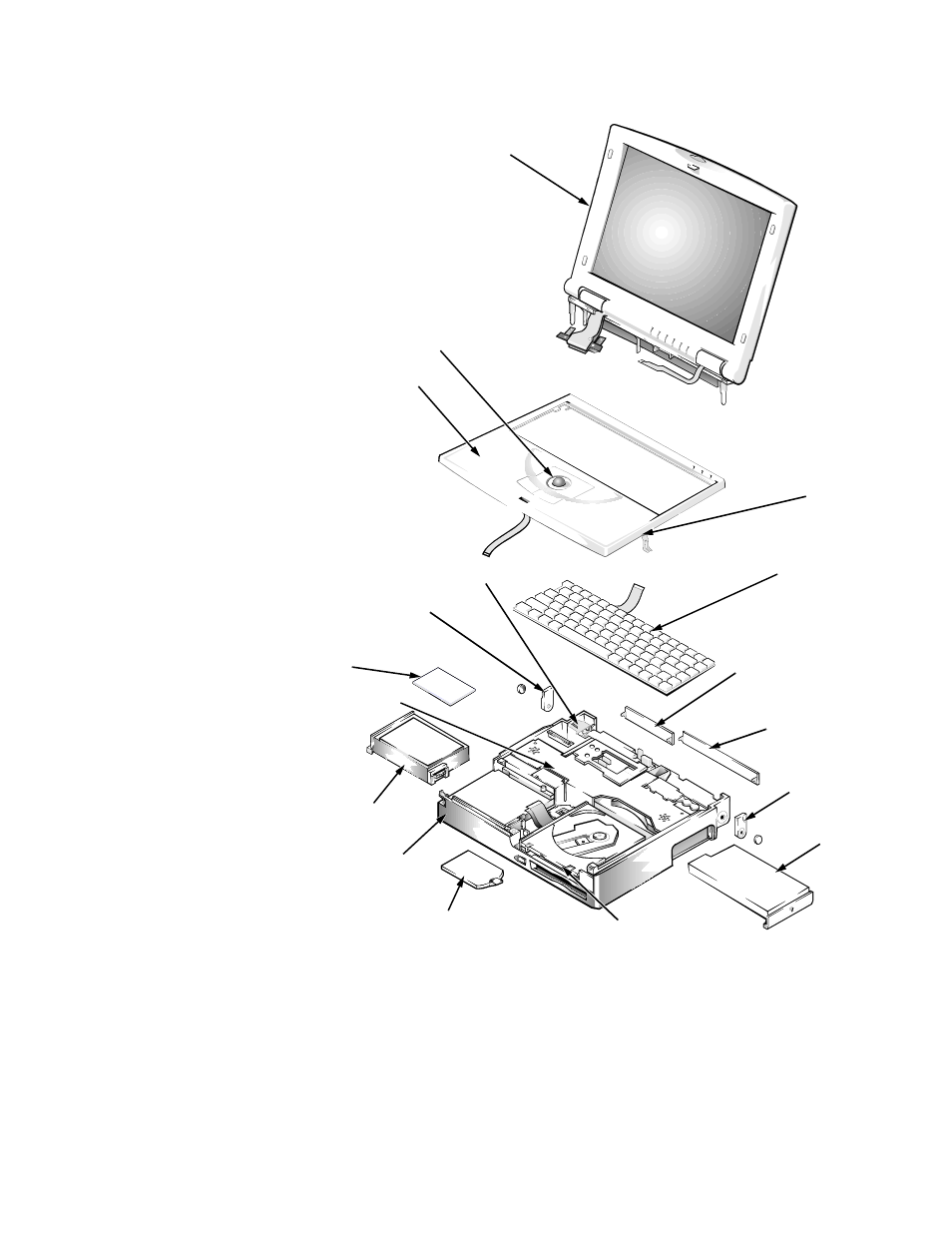

Figure 4-5. Exploded View—Computer
The computer is divided into three major assemblies: the palmrest assembly
(which contains the keyboard and the trackball), the display assembly (which
contains the LCD), and the bottom case assembly (which contains many of the
removable parts).
display assembly
keyboard
I/O panel dust cover
dust cover for the Advanced
Port Replicator connector
right tilt-support foot
main battery
left tilt-support foot
PC Card
memory compartment cover
CD-ROM/diskette
drive assembly
palmrest assembly
bottom case assembly
superpart assembly
trackball assembly
CD-ROM
EMI clip
keyboard EMI clip
hard-disk
drive assembly
