Deck Buoy

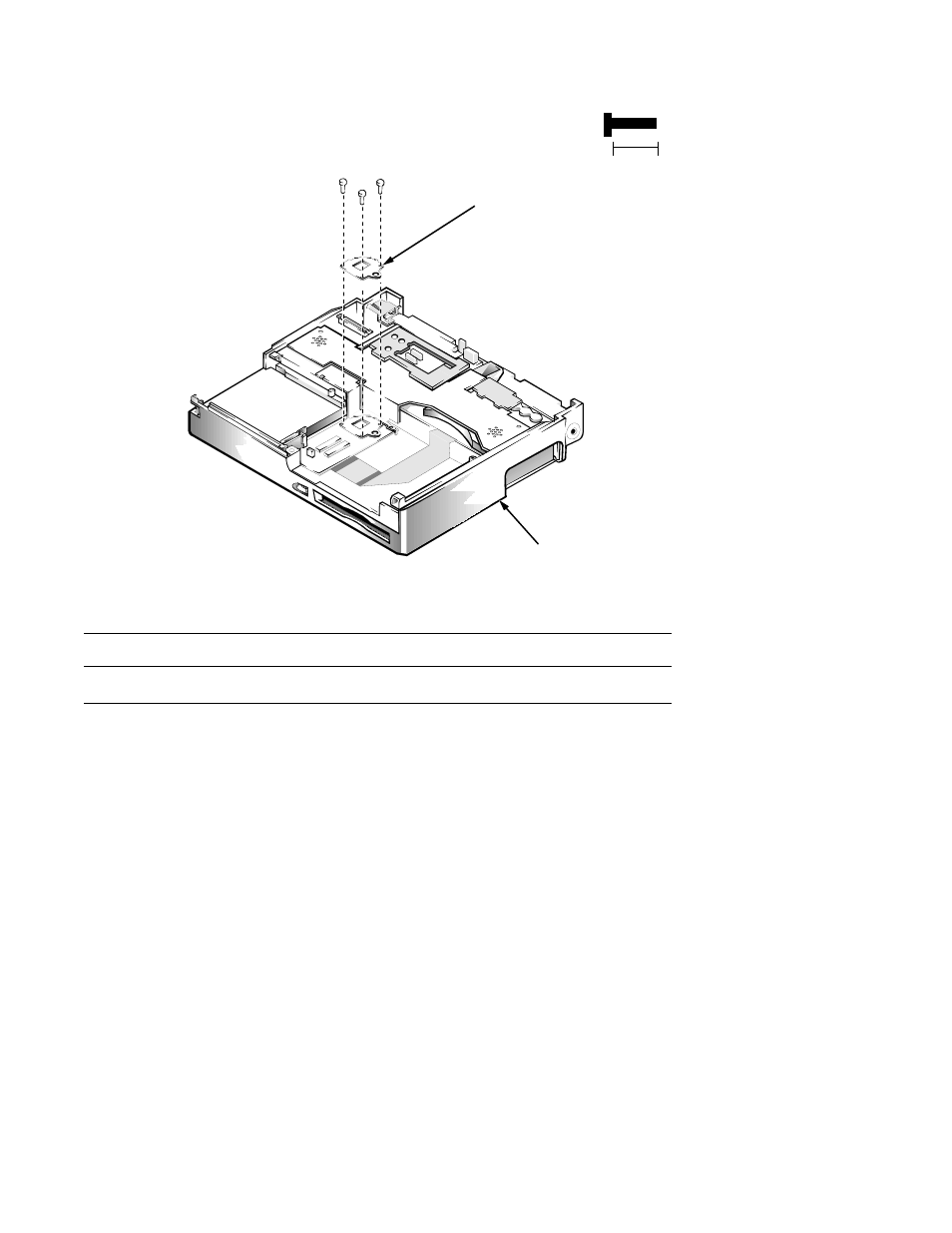

Figure 4-24. Deck Buoy Removal
To remove the deck buoy, follow these steps:
1. Remove the palmrest assembly.
2. Remove the display assembly.
3. Remove the diskette/CD-ROM assembly.
4. Remove screws B1, B2, and B3.
Lift the deck buoy out of the bottom case assembly.
Part or Assembly Name Order Name
Deck buoy ASSY,CLMP,THRM,LXPiCD
B1 (10 mm)
B2 (10 mm)
B3 (10 mm)
bottom case assembly
10 mm
deck buoy
