Cisco Catalyst Blade Switch 3130 and 3032 for Dell Software Configuration Guide
OL-13270-03
Chapter 4 Configuring Cisco EnergyWise
Managing Multiple Entities
Multiple PoE Switch Scenario

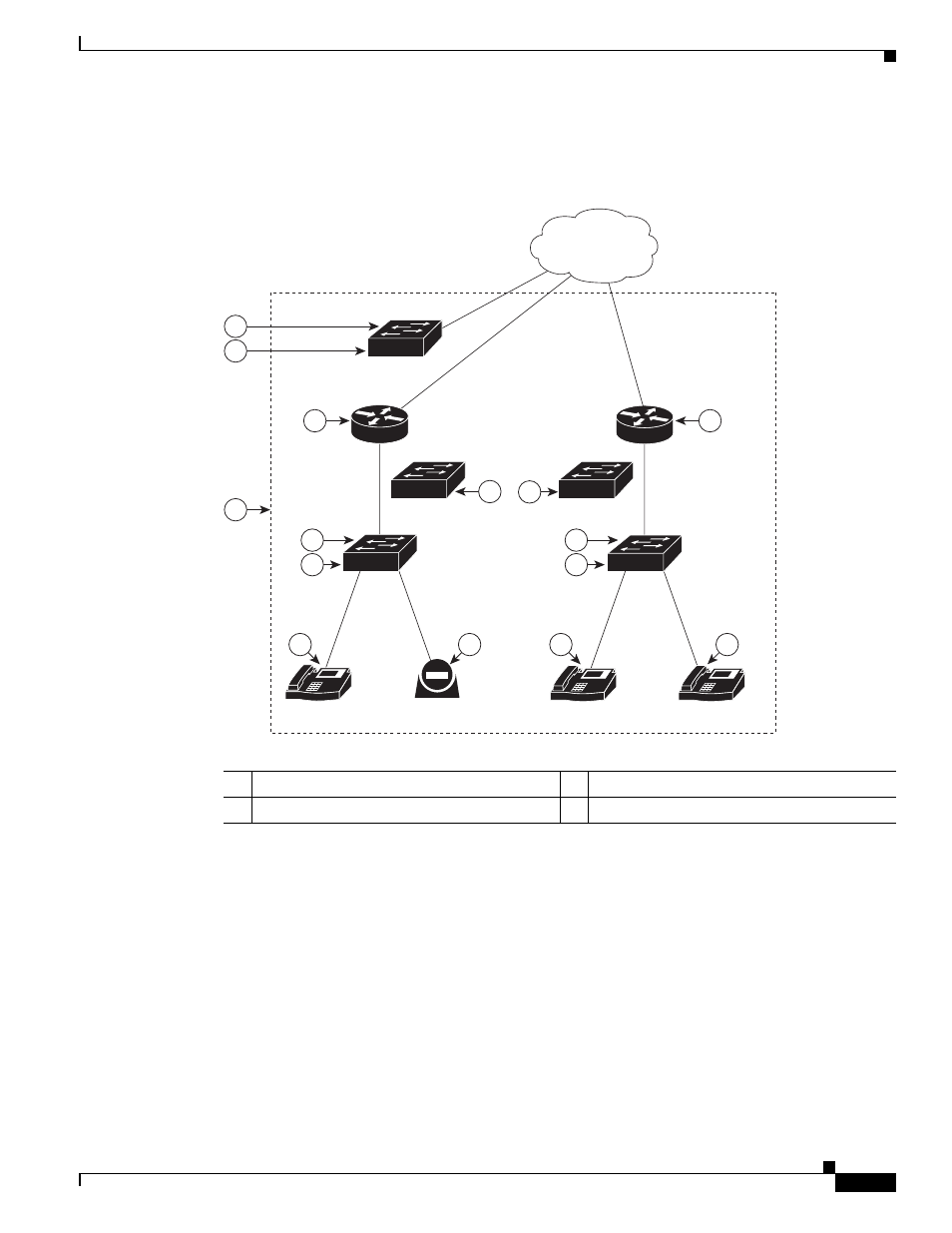

Figure 4-3 Multiple PoE Switches Example
EnergyWise Query
• Collect power usage information.
• Summarize power information from entities.
• Set parameters.
Use these attributes to filter results:
• Importance.
• Entity name.
• One or more keywords for a port or for a group of ports.
