CSMIM-T1 Hardware Installation Guide A-1
APPENDIX A
PORT PIN/SIGNAL ALLOCATIONS
A.1 GENERAL
This appendix supplies information regarding CSMIM-T1 port pinouts,
signals and cabling.
A.2 CONSOLE PORT
The console port is used at install to configure the CSMIM-T1. In order to
access the ROM Monitor, Console Monitor and T1 Parameters, you will
need to attach a terminal to the console port.

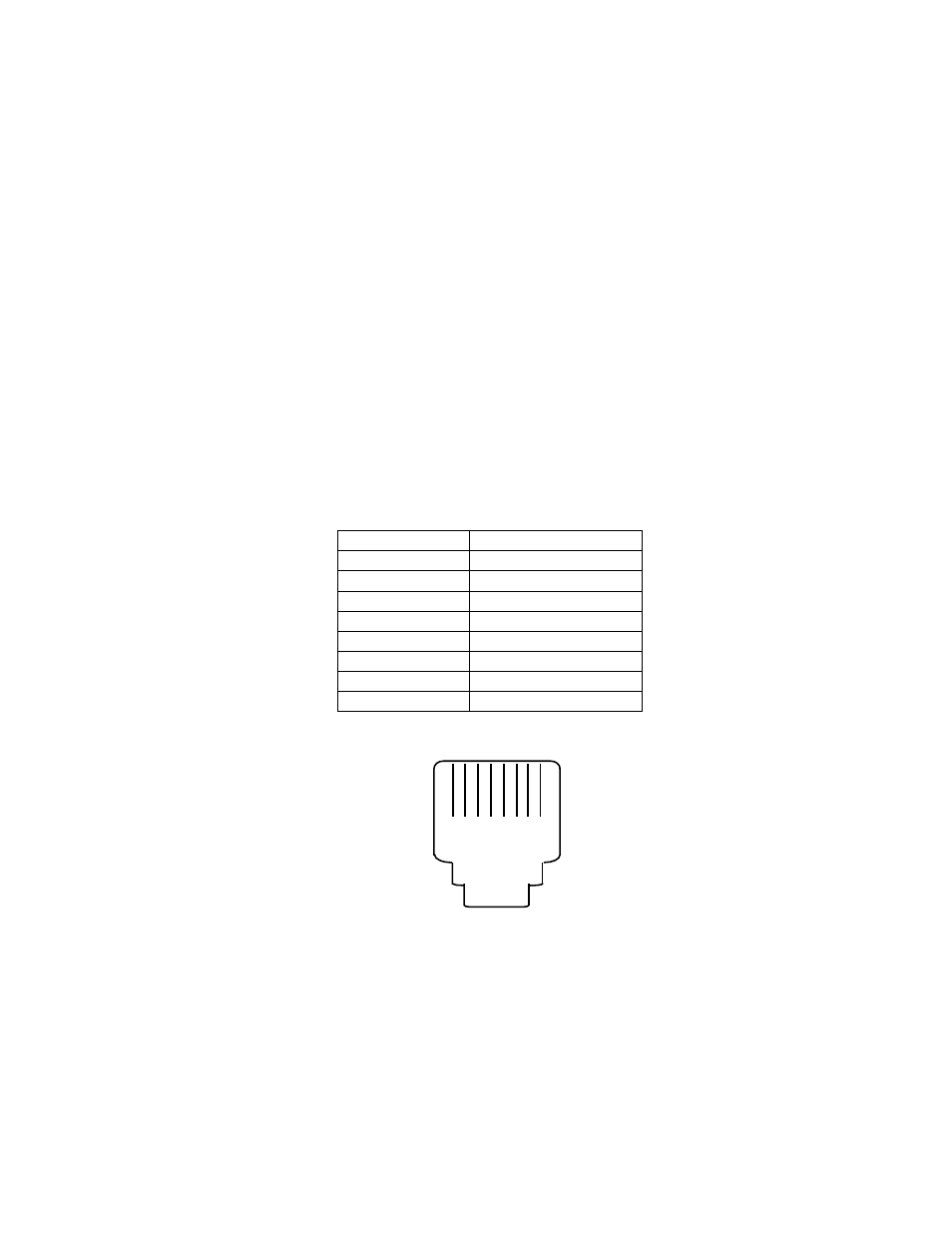

Table A-1 RJ45 Console Port Pin/Signal Allocations
Figure A-1 RJ48C Port Receptacle
RJ45 Pin Signal
1 RTS
2 DTR
3 TXD
4 DCD
5 RXD
6 GND
7 Unused
8 Unused
1 8
Front view
