Page 158

4 - 74
3/21/97
REPAIR
ELECTRICAL
REPAIR

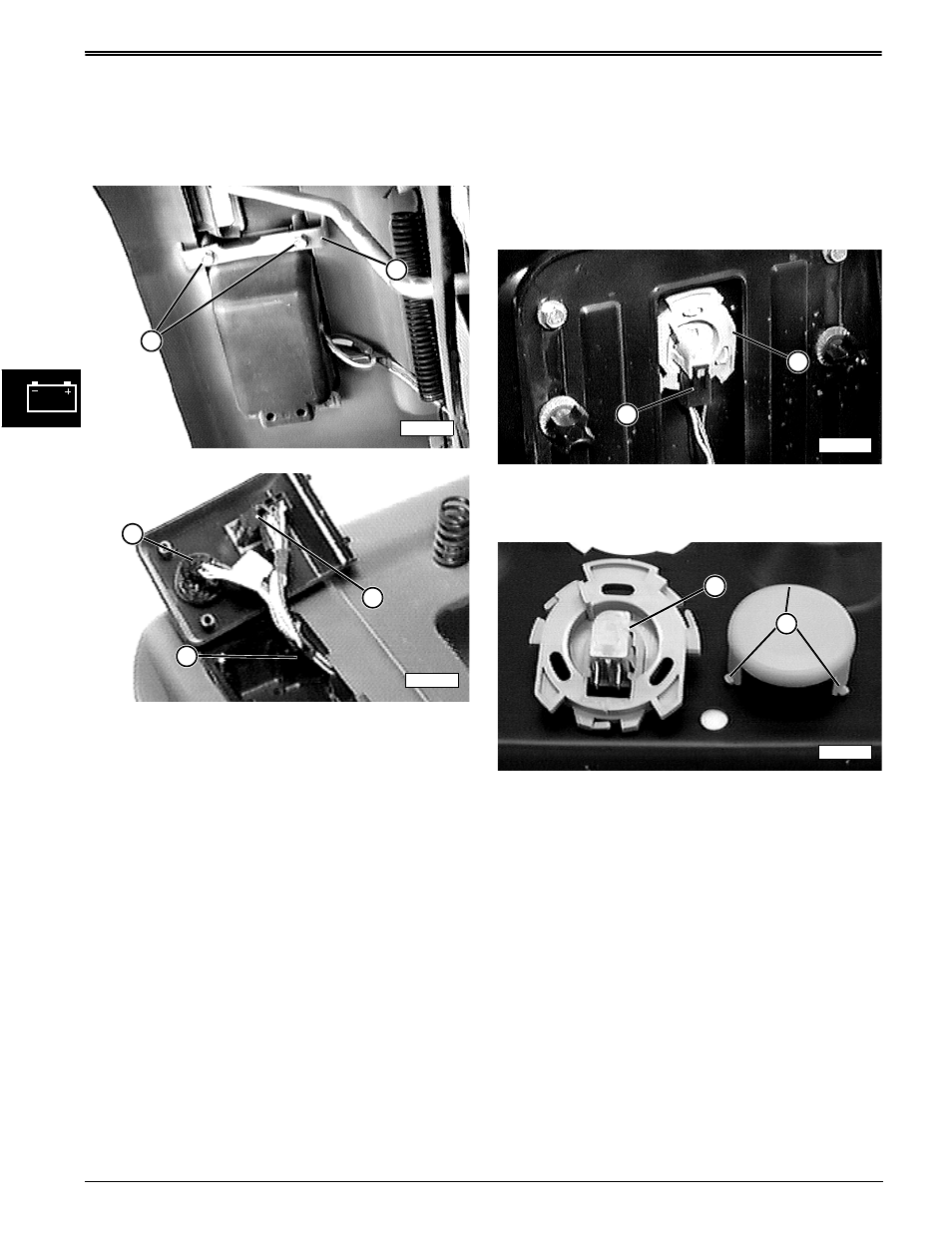

REMOVE AND INSTALL KEY
SWITCH AND PTO SWITCH
1. Remove retaining screws (A) and Bracket (B).
2. Remove key switch connector (C) or PTO
connector (D).
NOTE: Extra power and ground leads (E) are for
accessories.
REMOVE AND INSTALL SEAT
SWITCH
NOTE: Seat switch connector has an internal spring
which will short cavities of connector together
when it is disconnected from seat switch. This
prevents operator from defeating seat switch
by leaving connector disconnected.
1. Tilt seat forward.
2. Disconnect connector (A).
3. Rotate switch assembly (B) counterclockwise to
remove switch from seat pan.
4. Depress tabs (D) of cover and remove.
5. Unsnap switch (C) from housing.
6. Assemble in reverse order of disassembly.
M55806
B
A
M55844
D
E
C
M55846
A
B
M55818
C
D
