3-44 ADS Portable FlowShark Pulse Manual

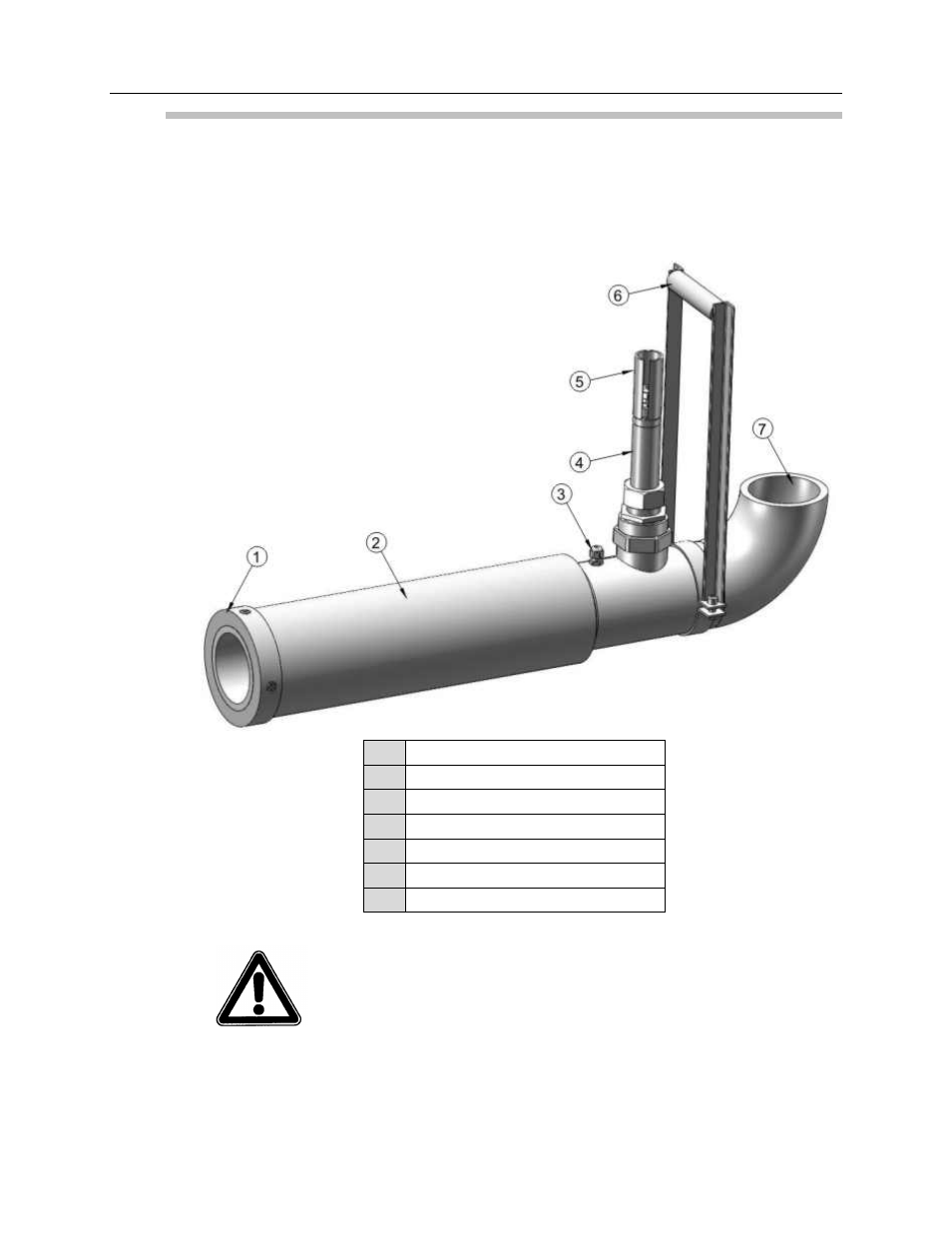

Pipe Profiler
The Pipe Profiler is a pipe measuring section that serves as an extension of the
Portable FlowShark Pulse measurement system. This flexible measurement system
ensures accurate flow measurement even under difficult conditions such as low
discharge volumes or poor hydraulic conditions.
1
Clamp ring
2
Balloon
3
Ventilation
4
Pipe sensor
5
Cable protection jacket
6
Handhold
7
Pressure pipe
Pipe profiler
ADS permits inflating the balloon of the pipe profiler to a
maximum pressure of 21.8 psi (1.5 bars) only when using a safety
filling valve!
