3-28 ADS Portable FlowShark Pulse Manual
1 Stainless steel sheet/cable cover
2 Cable
3 Cable
4 Permanent, elastic material

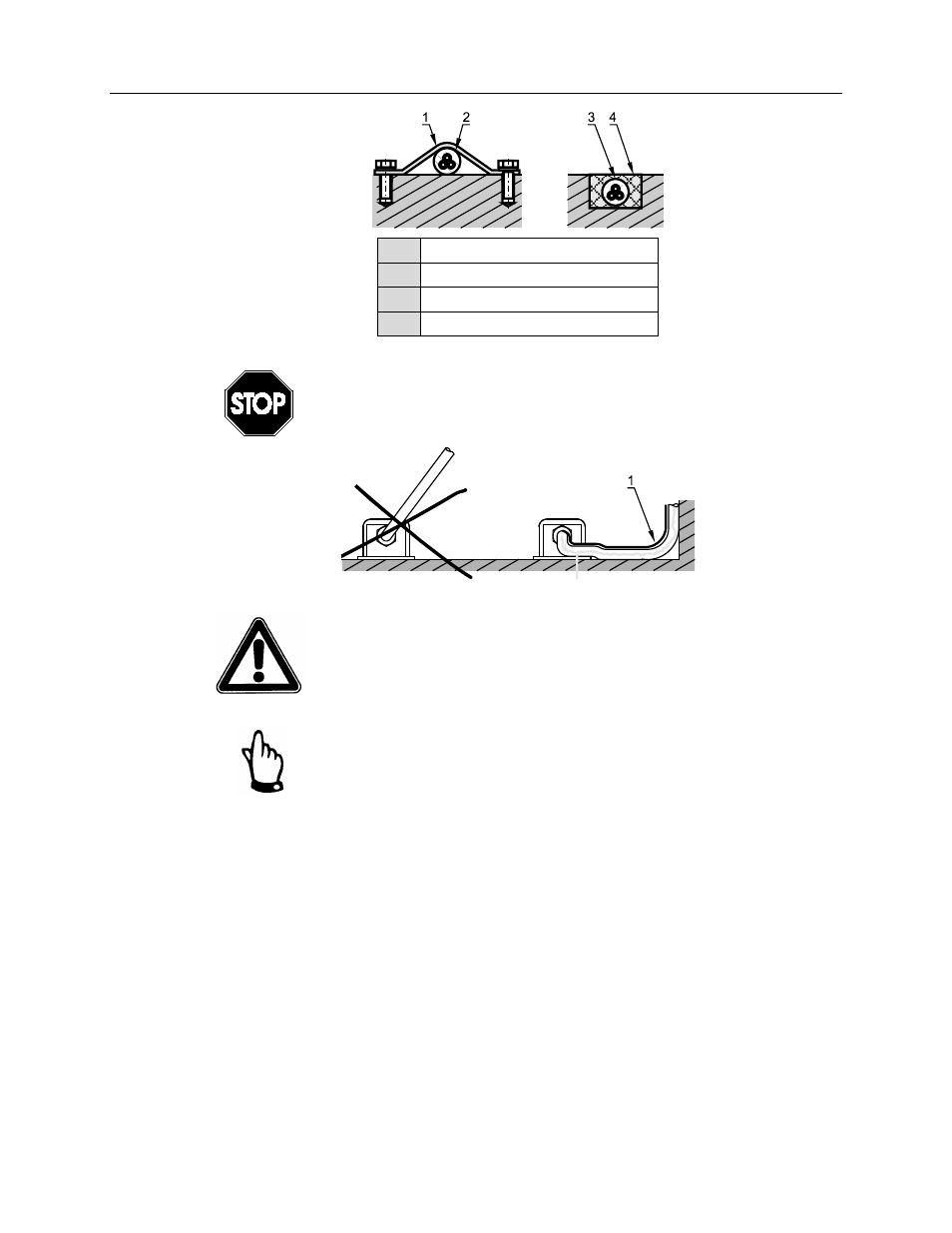

Suggested cable layout
Do not run the cable loosely, uncovered, or across the medium.
This could lead to a build-up of debris and/or cause the sensor or
the cable to pull apart.
Cable layout (1 represents the protective cover)
Do not bend the standard signal cable in more than a 4-inch (10-
cm) radius. Bending it into a smaller radius could break the cable.
To avoid disturbances caused by electric interference, do not lay
the sensor cable close (or parallel) to motor power supply lines and
power lines.
