3-22 ADS Portable FlowShark Pulse Manual
1 Upper front clamp element (1x)
2 Lower front clamp element (1x)
3 Upper rear clamp element (1x)
4 Lower rear clamp element (1x)
5 Allen head screw M5 (2x)
6 Allen head screw M4 (2x)
7 Welded headless screw (as an additional clamp lock)
8 Allen head screw M5 (2x)
9 Allen key – 1 x 2.5 mm
10 Allen key – 1 x 3 mm
11 O-ring, spare part for sensor screw connection (refer to the previous image)

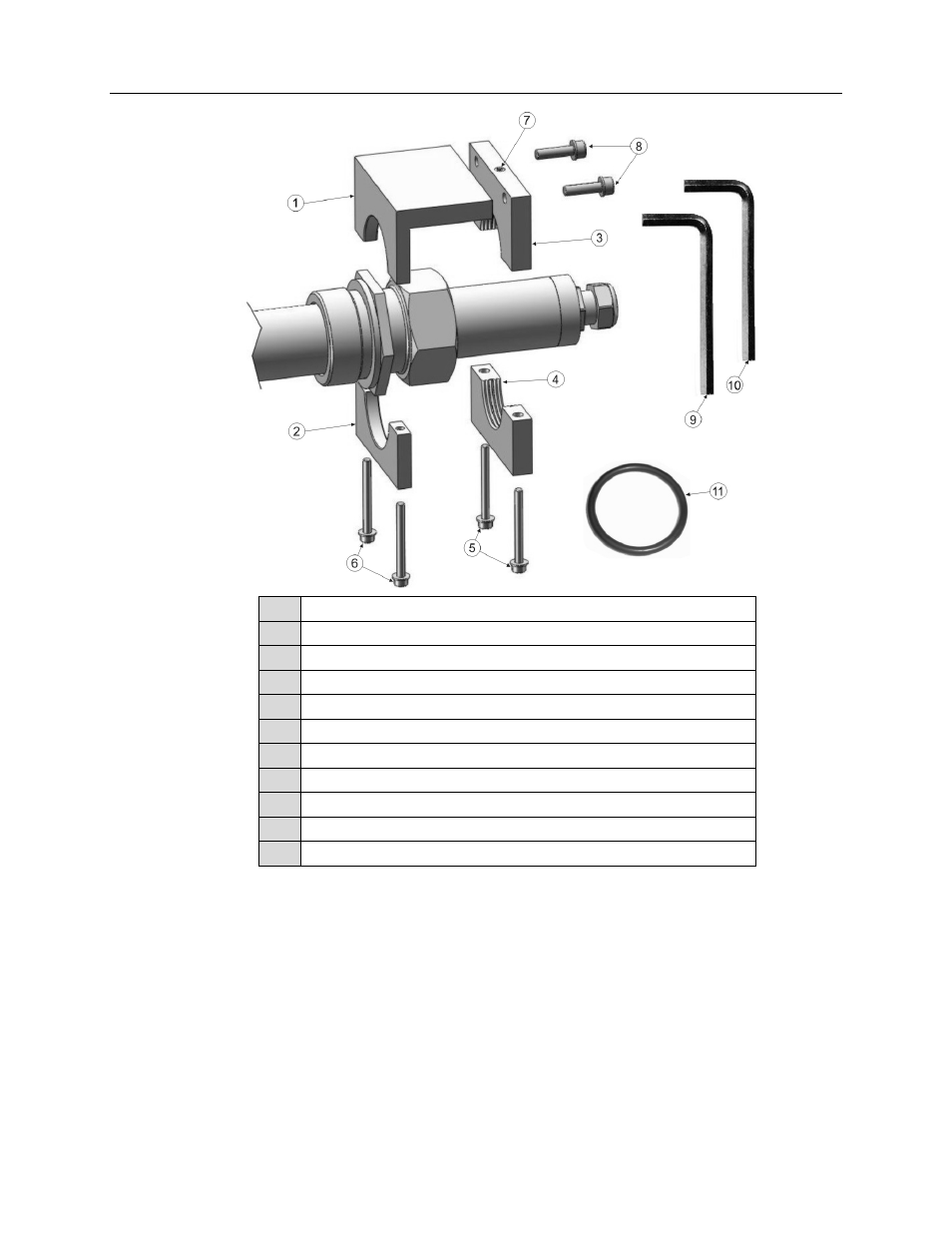

Exploded view of sensor retaining element
Proceed with the installation of the pipe insertion sensor in the following way:
1. Apply a small amount of grease to the O-ring on the inside of the sensor screw
connection.
