3-38 ADS Portable FlowShark Pulse Manual
 When using the air-ultrasonic depth and water-ultrasonic sensors
simultaneously, use the support plate (ADS part number 5000-PPORT-PIPE-
INST-RMS2). In this configuration, the water-ultrasonic sensor mounts to the
base plate with the slotted holes at the front of the sensor. The support plate
ensures proper cable layout and placement of the water-ultrasonic sensor
behind (downstream from) the air-ultrasonic sensor.
 Use the double-mounting plate to secure the air-ultrasonic sensor to the
extension plates. Install the sensor completely parallel to the flow surface.
1 Scissors jack
2 Water-Ultrasonic Velocity/Combination Sensor or Mini Water-Ultrasonic
Velocity Sensor
3 Air-Ultrasonic Depth Sensor or Mini Air-Ultrasonic Depth Sensor
Fastening the sensors to the pipe mounting system

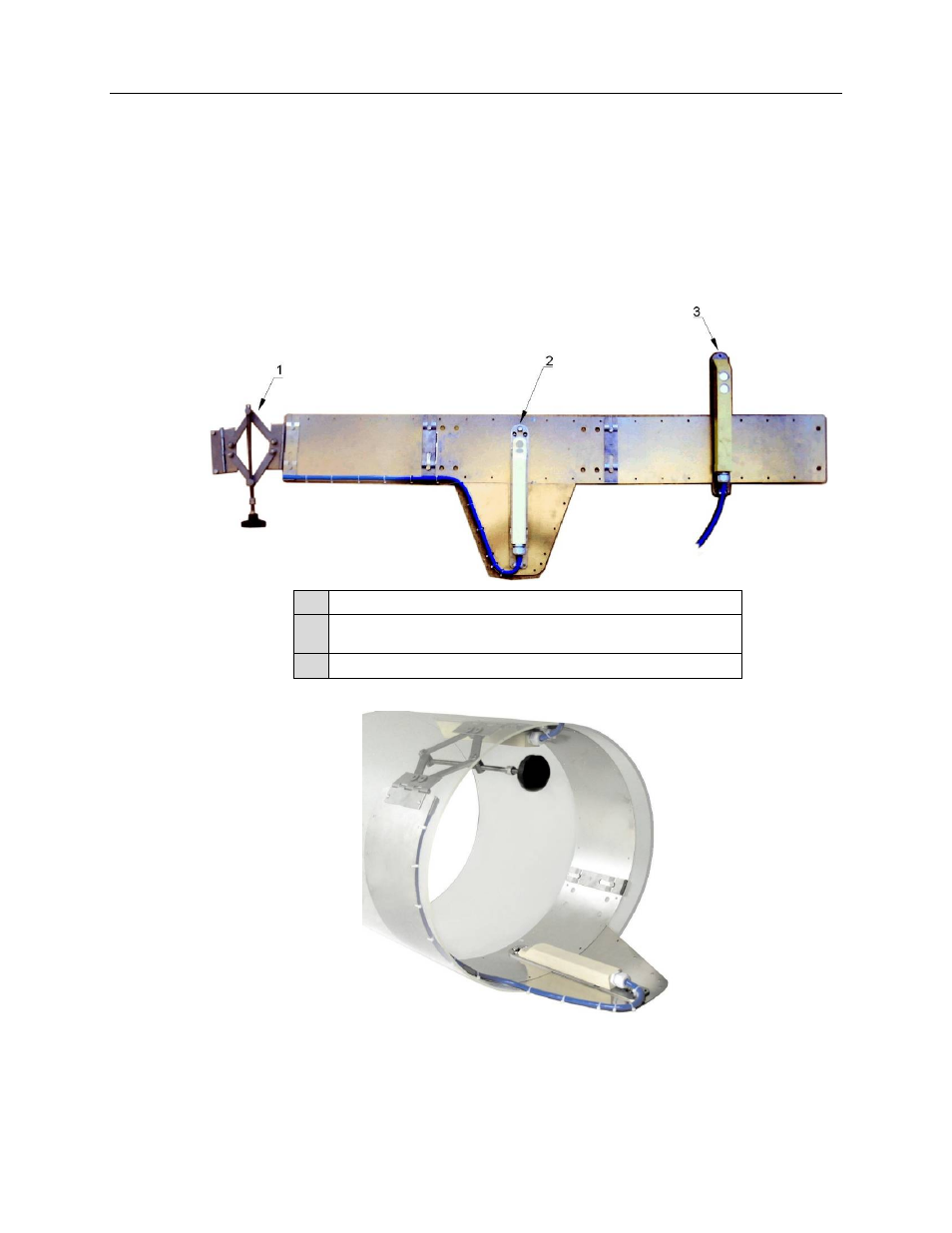

Pipe mounting system with support plate for combined installation of a water-ultrasonic sensor and air-ultrasonic
sensor
