3-24 ADS Portable FlowShark Pulse Manual

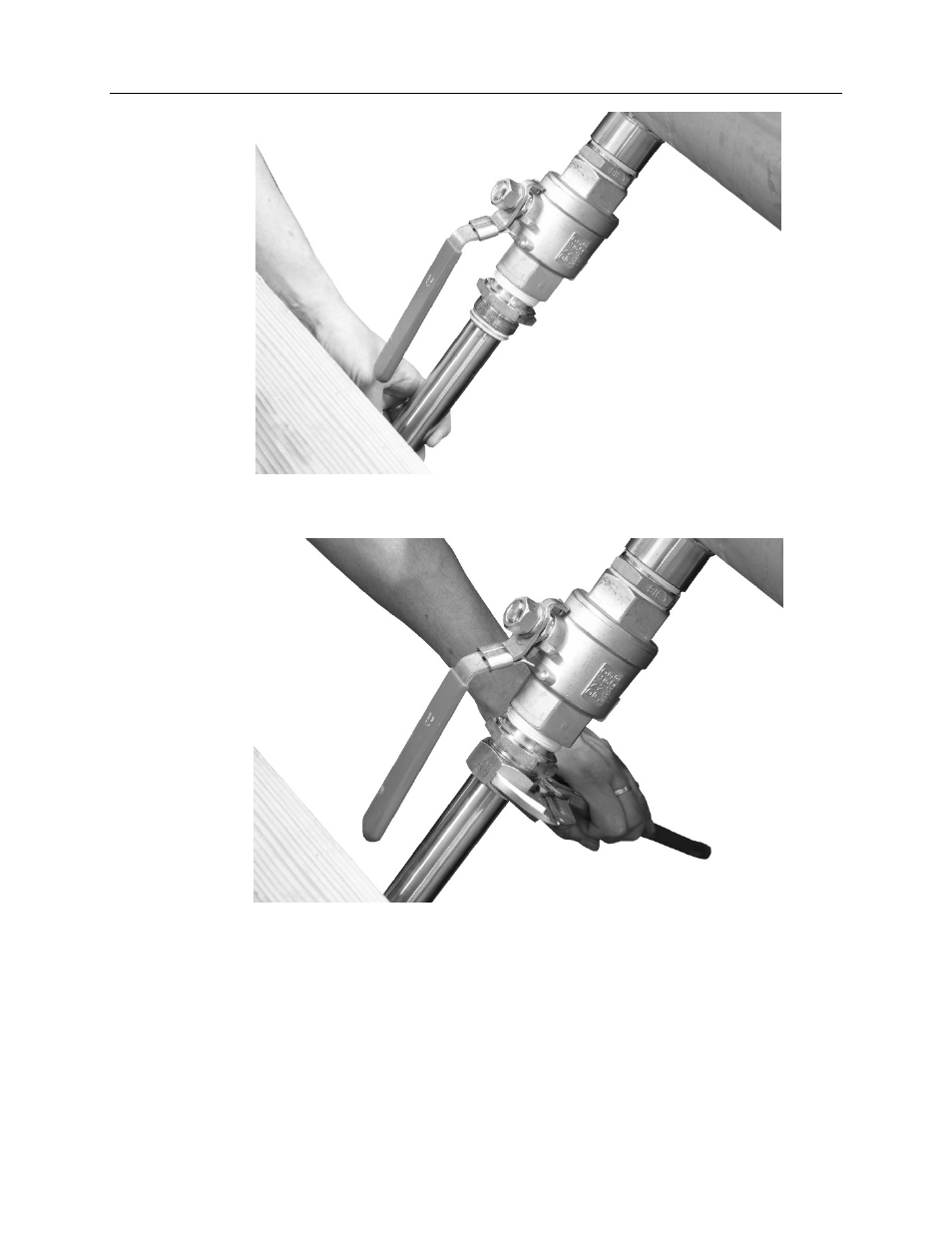

Properly positioning the sensor
4. Fasten the sensor by gently tightening the union nut manually (plus ½ turn).
Fastening the sensor
5. Screw the upper and lower front clamp elements together behind the spigot
nut of the sensor screw connection using two M4 Allen
®
head screws.
