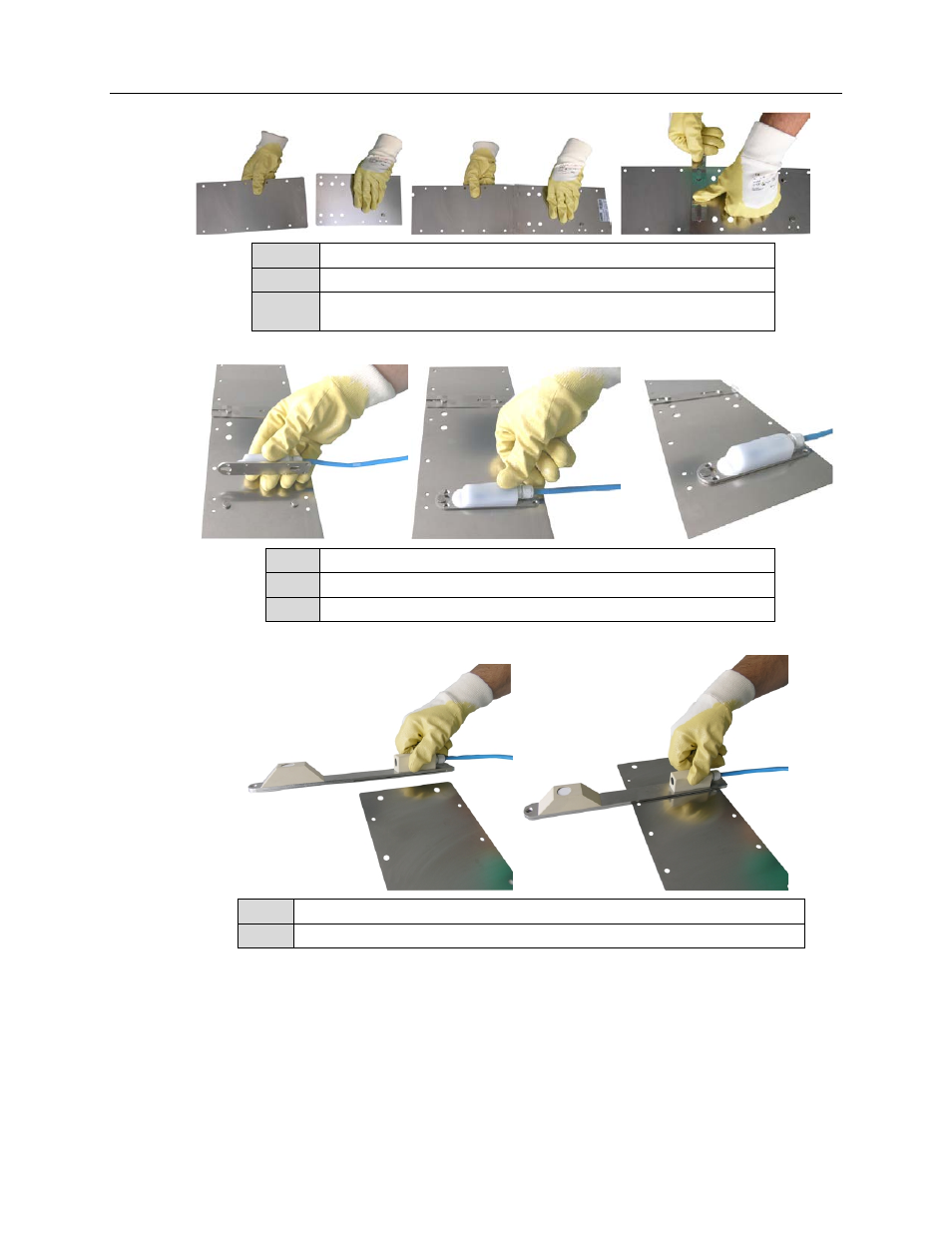

3-40 ADS Portable FlowShark Pulse Manual
Left Assemble the base plate and extension sheet
Center Insert the pins into the holes
Right Lock the pins using the fastening clip (clip must sit flush against the mounting
plate facing the oncoming flow)
Assembling the mounting plate
Left Place the sensor with the cutouts (slotted holes) onto the base plate.
Center Slide back the sensor until it is completely in place.
Right Make sure the sensor locks securely and flush with the base plate.
Installing the mini water-ultrasonic velocity sensor
Left Install the mini air-ultrasonic depth sensor using the double mounting plate.
Right Place the extension sheet into the cut-out between mounting plates 1 and 2.
Installing the mini air-ultrasonic depth sensor
