System Overview and Operation 2-3

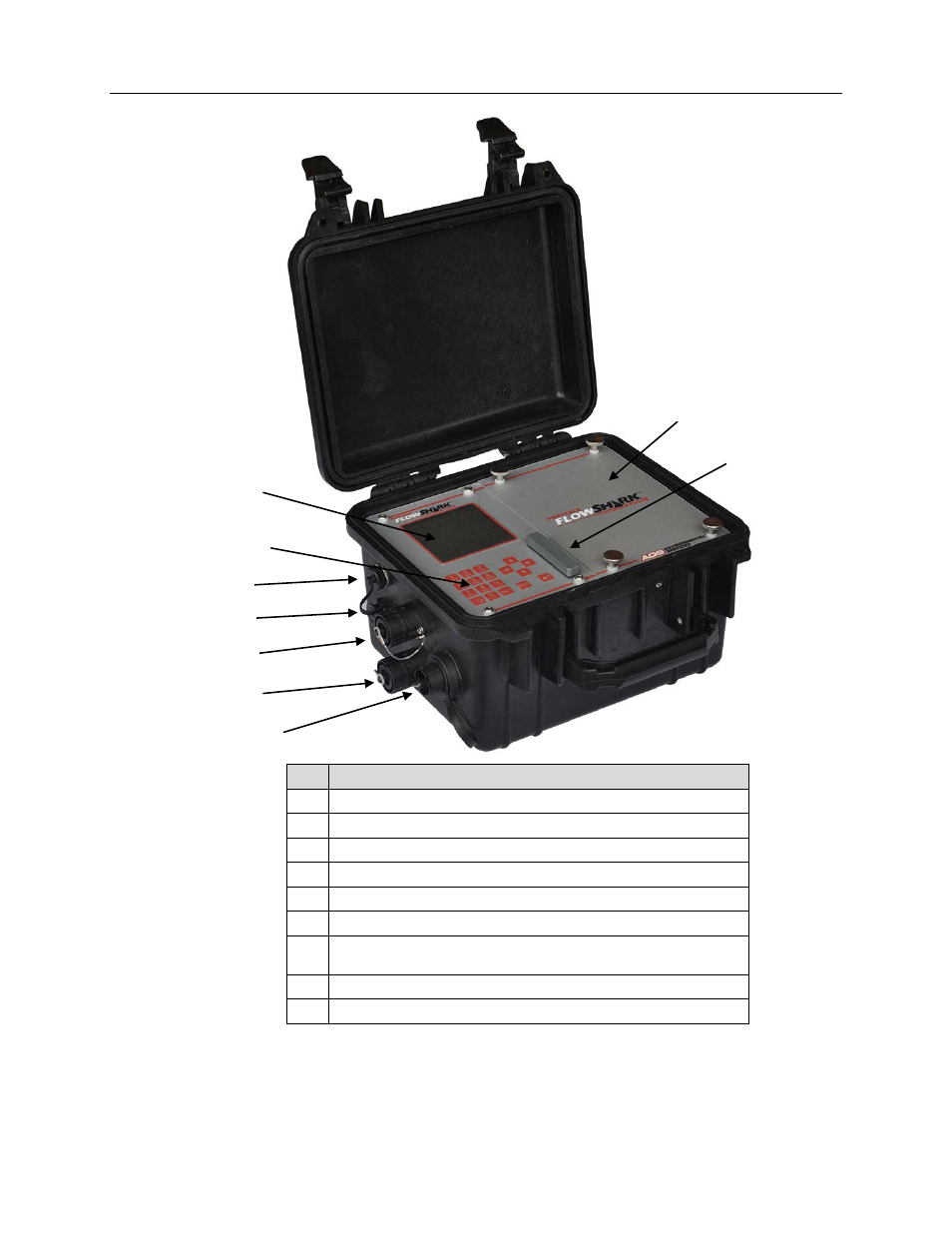

Part Description
1 Display
2 Keypad
3 Communications port (not applicable)
4 Combined mains adapter / battery charger port
5 Air-ultrasonic depth sensor port or external depth measurement 4-20 mA
6 Water-ultrasonic velocity / combination sensor or electronic box port
7 Multi-function port for connecting connection-box, active digital input,
0/4-20 mA input signal, or 0- to 10-volt voltage output and relay output
8 Battery compartment
9 Compact flash card slot with cover
Portable FlowShark Pulse
8
7
9
6
5
3
4
2
1
