6-46 ADS Portable FlowShark Pulse Manual

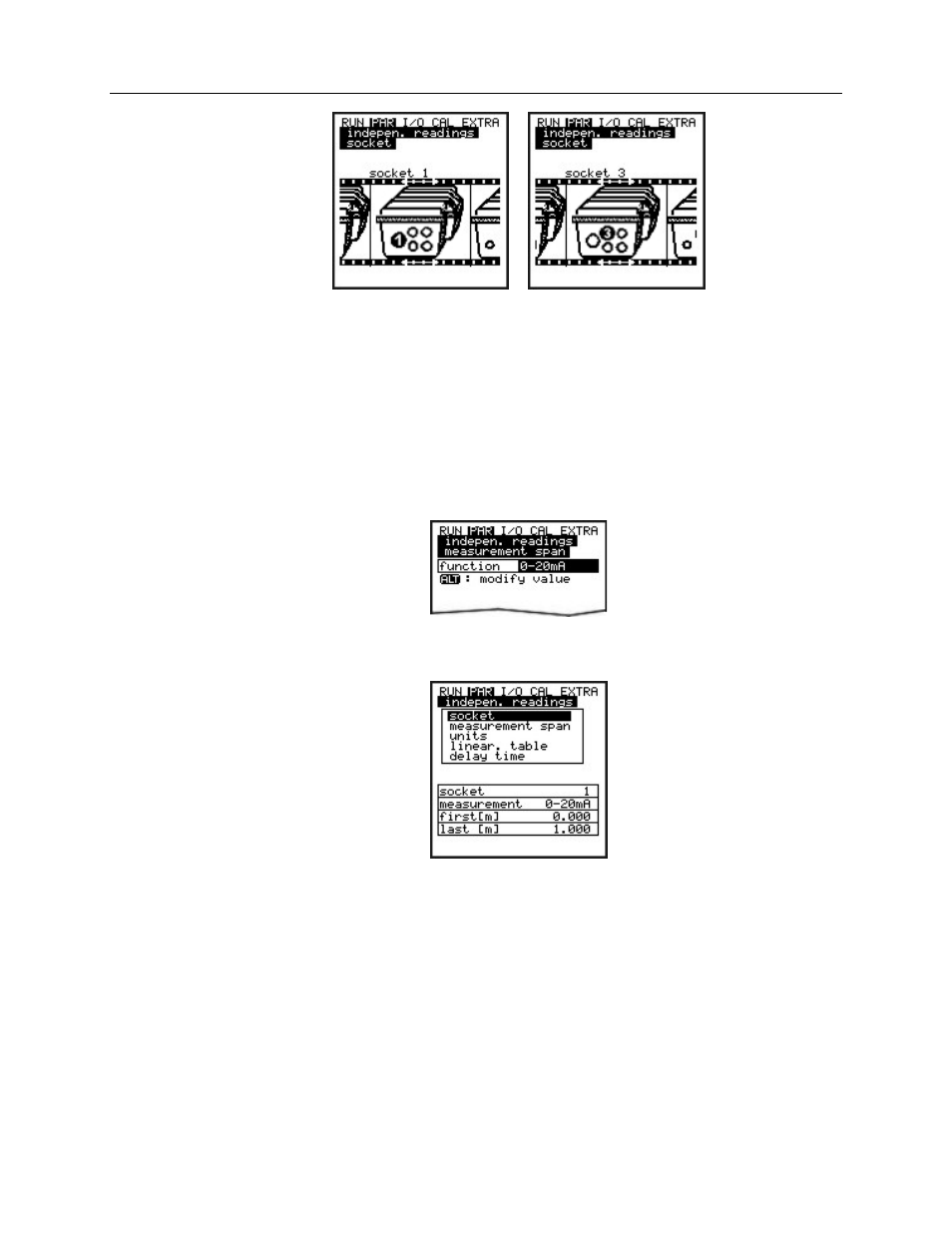

Port (socket) selection for independent readings
Port

Socket 1 Input via multifunctional port 1 (2-wire signal, input is passive)

Socket 3 Input via multifunctional port 3 (2-wire signal, powered via the
Portable FlowShark Pulse)
Measurement Span
Use the ALT key to modify the measurement span from 1-20 mA to 4-20 mA.
Measurement span of independent readings
Set the necessary parameters after selecting the measurement span.
Overview of independent readings
Units
This parameter will be assigned to the breakpoint table under the name in which it is
saved.
