2-10 ADS Portable FlowShark Pulse Manual
Mini Sensors
The Portable FlowShark Pulse also offers a "Mini" sensor family. This sensor family
consists of the Electronic Box (EBM) (active electronics) and two passive sensors:
the mini water-ultrasonic passive flow velocity sensor (below) used for measuring
velocity and the mini air-ultrasonic passive depth sensor used for measuring level
(i.e., depth).

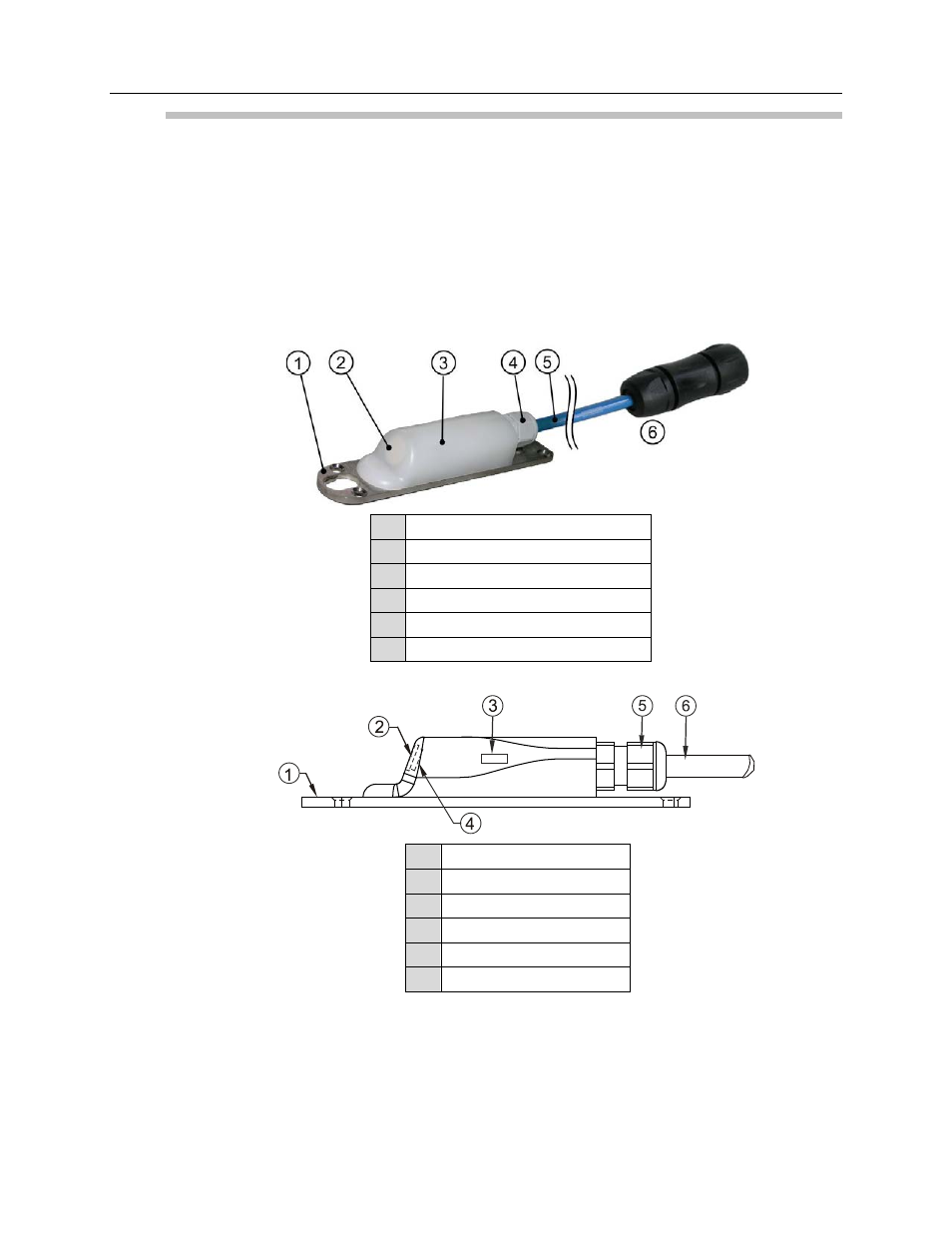

Mini Water-Ultrasonic Velocity (Wedge) Sensor
1 Ground Plate
2 Sensor for Flow Velocity Measurement
3 Sensor Body
4 Cable Gland
5 Sensor Cable
6 Connector with Spigot Nut
Mini Water-Ultrasonic Velocity Sensor
1 Ground Plate
2 Acoustic Coupling Layer
3 Temperature Sensor
4 Flow Velocity Sensor
5 Cable Gland
6 Sensor Cable
Mini Water-Ultrasonic Velocity Sensor
