Installation 3-35
RMS 2
Pipe Mounting System RMS 2
Determine the appropriate parts required based on the figure below, the following
chart, and the existing pipe diameter.
1
Fastening clip
2
Extension sheet V5
3
Extension sheet V10
4
Base plate
5
Extension sheet V15
6
Scissors jack with clamp handle

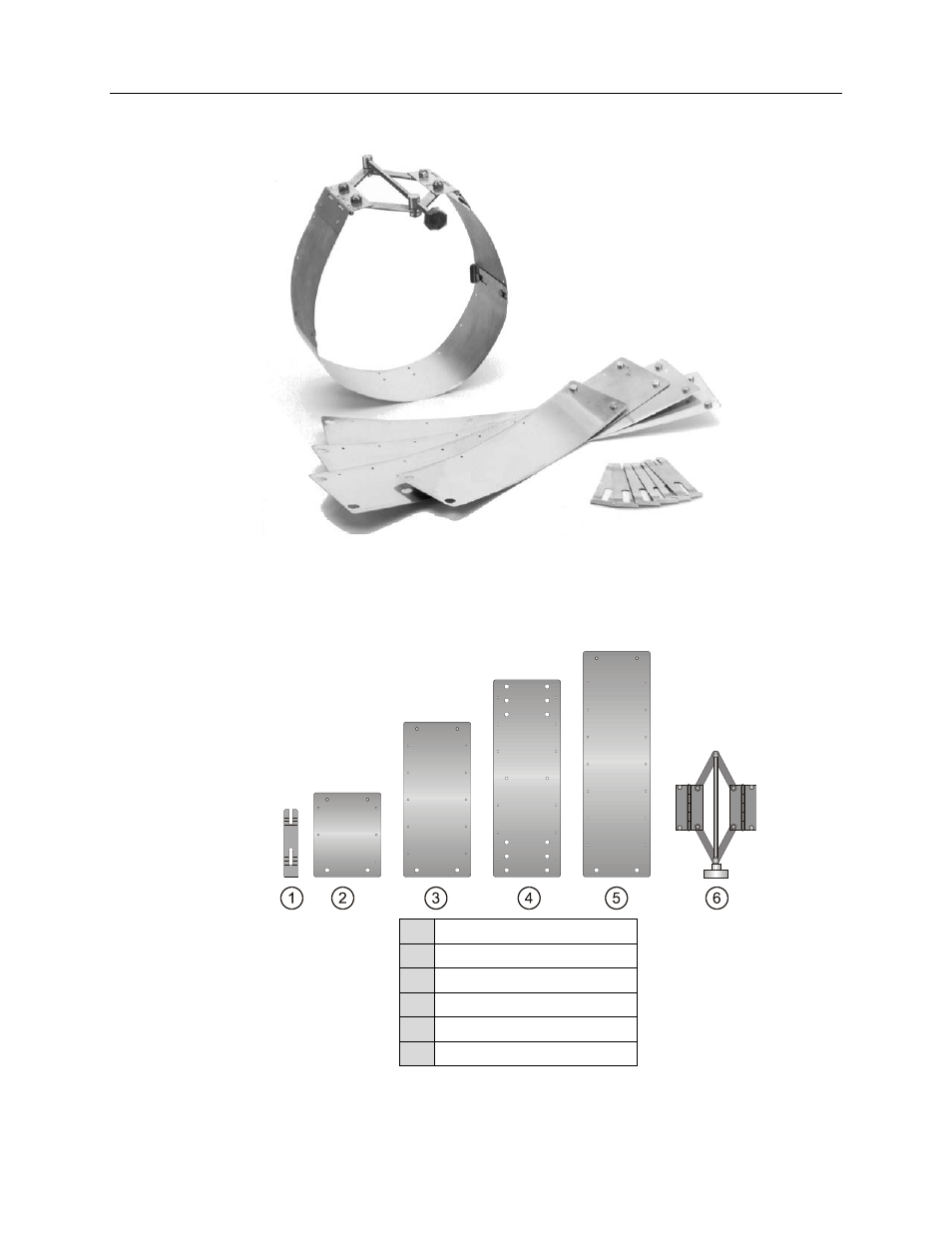

Components included in the RSM2 pipe mounting system
