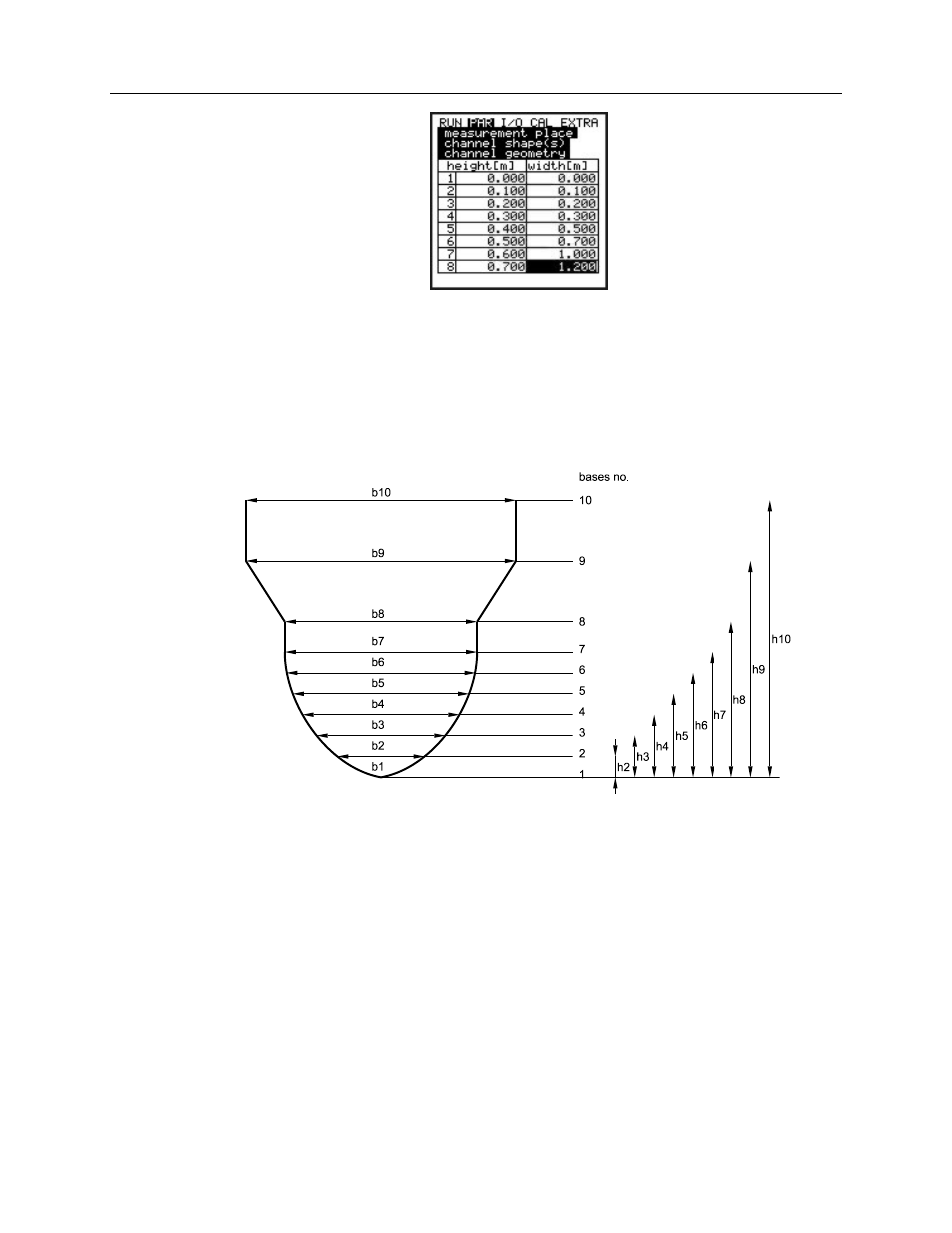

Table of custom shape breakpoints
To define the zero point for the pipe, begin by entering 0 – 0 for breakpoint 1. Enter
the subsequent segments based on the height and width/area.
Distances may vary among individual depth segments. Please note that it is not
necessary to use all 32 segments. The Portable FlowShark Pulse will interpolate
between the missing segments. Decrease the distance between breakpoints under
conditions reflecting heavy and irregular fluctuation within a specific area.
Custom profile breakpoints
Special Profiles
ADS offers the 2-part profile and 3-part profile for defining special profiles.
Selecting the 2-part profile displays the following setting options:
• Bottom Area: U-Profile
• Top Area: Custom Profile
You can custom design the top area using breakpoints.
