3-26 ADS Portable FlowShark Pulse Manual
8. Verify the tightness of the entire screw joint. If leaks develop during this
process, make sure the respective screw joints are properly tightened or shut
down the entire facility (if necessary) and replace the damaged gaskets, Teflon
tapes, and other materials.

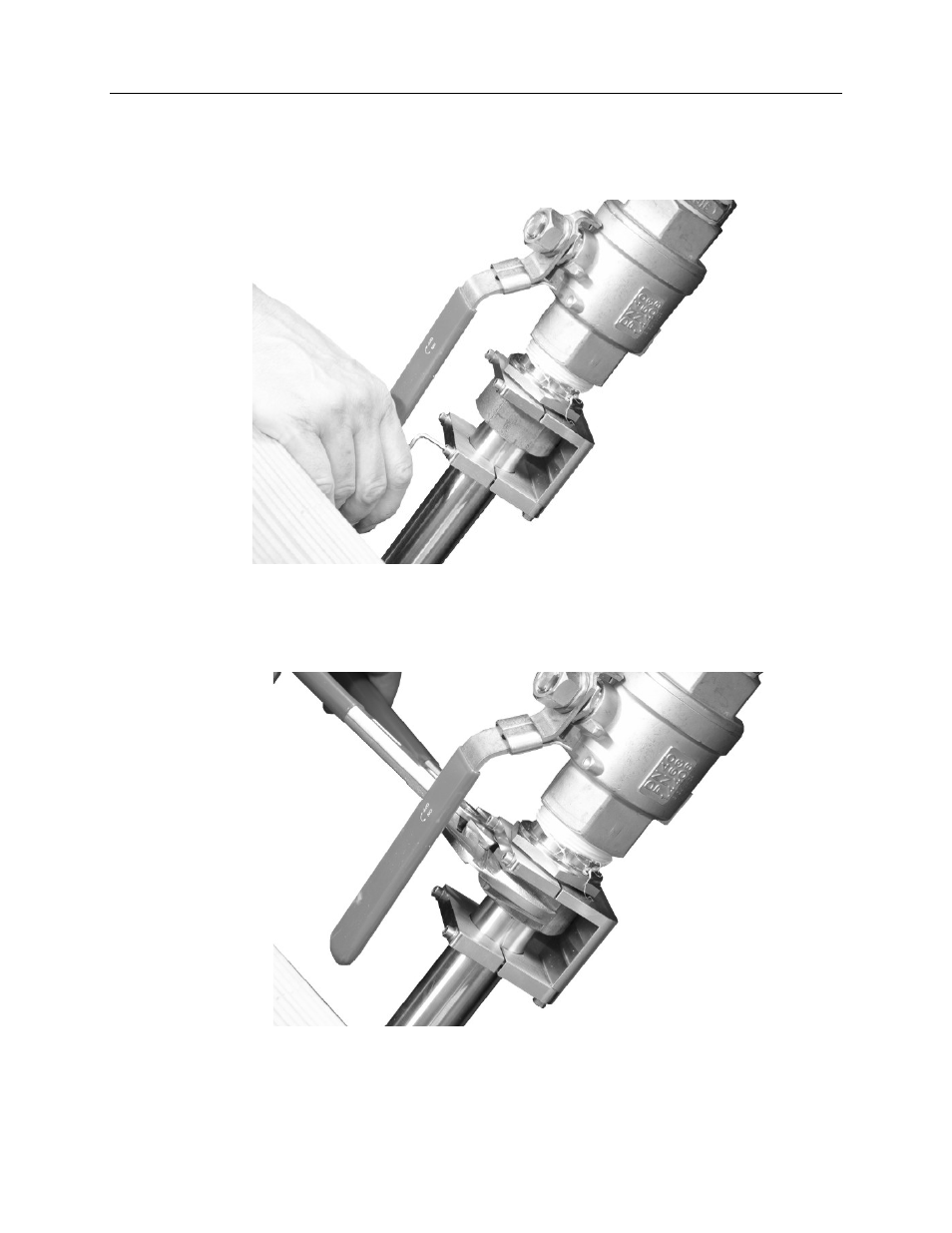

Attaching the final clamp element
9. The sensor retaining element allows you to reposition the sensor in the proper
location following maintenance or control measures. To do this, first unscrew
the spigot nut and both hexagon socket (Allen) M5 screws.
Unscrewing procedure for sensor removal
10. Then, remove the sensor. The screwed rear clamp elements will remain in
their position on the pipe sensor body.
