Parameter Settings 6-21

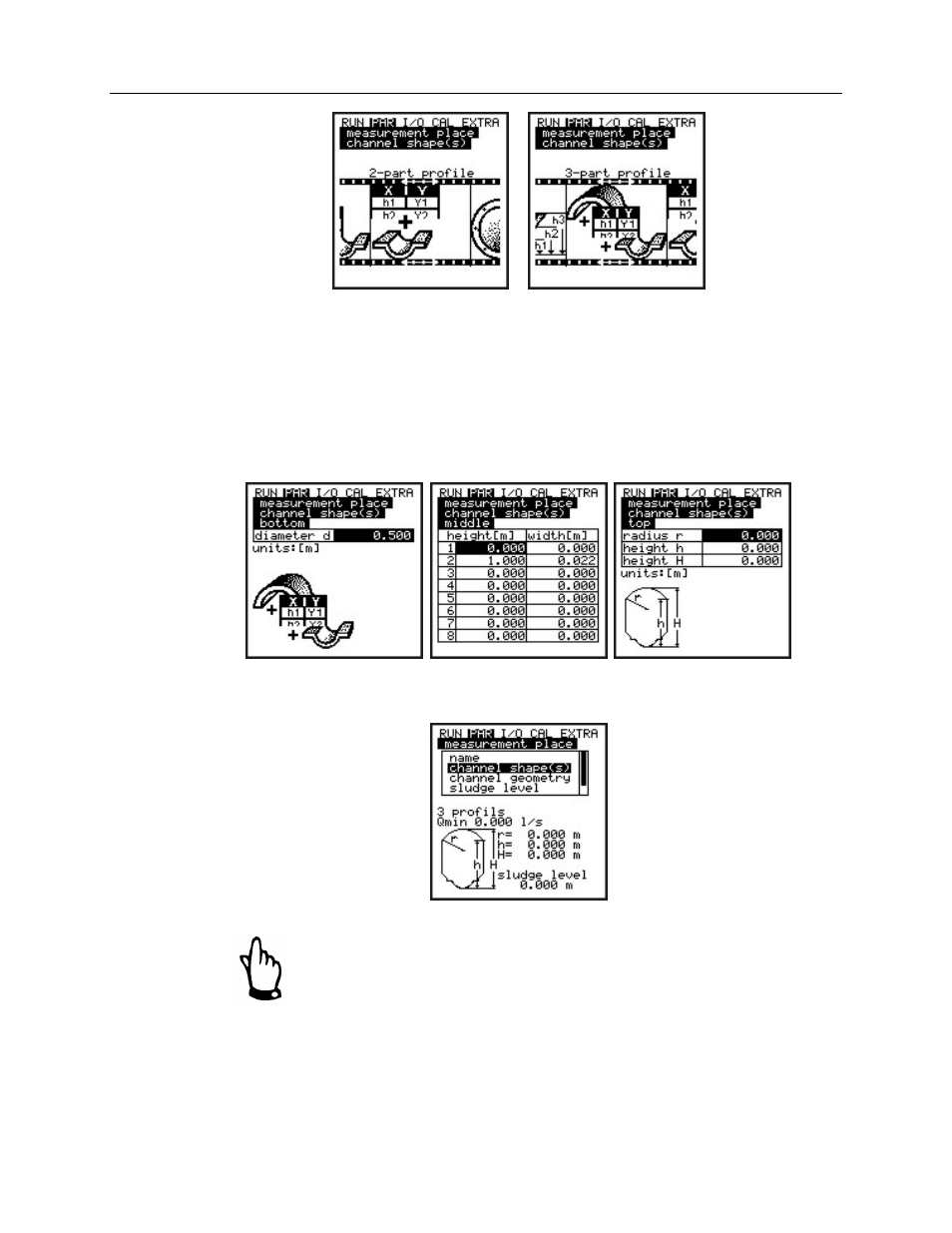

Example of setting custom profiles
Choosing the 3-part profile displays the following setting options:
• Bottom Area: U-Profile
• Center Area: Custom Profile
• Top Area: Pipe
The center area can be custom designed.
Dividing the profile into three zones
The following screen provides an example of a special profile.
Three-part profile
Selecting the Q=f(h) option allows for the definition of only one
level zone because it is impossible to divide the profile into center
and top areas.
