6-32 ADS Portable FlowShark Pulse Manual

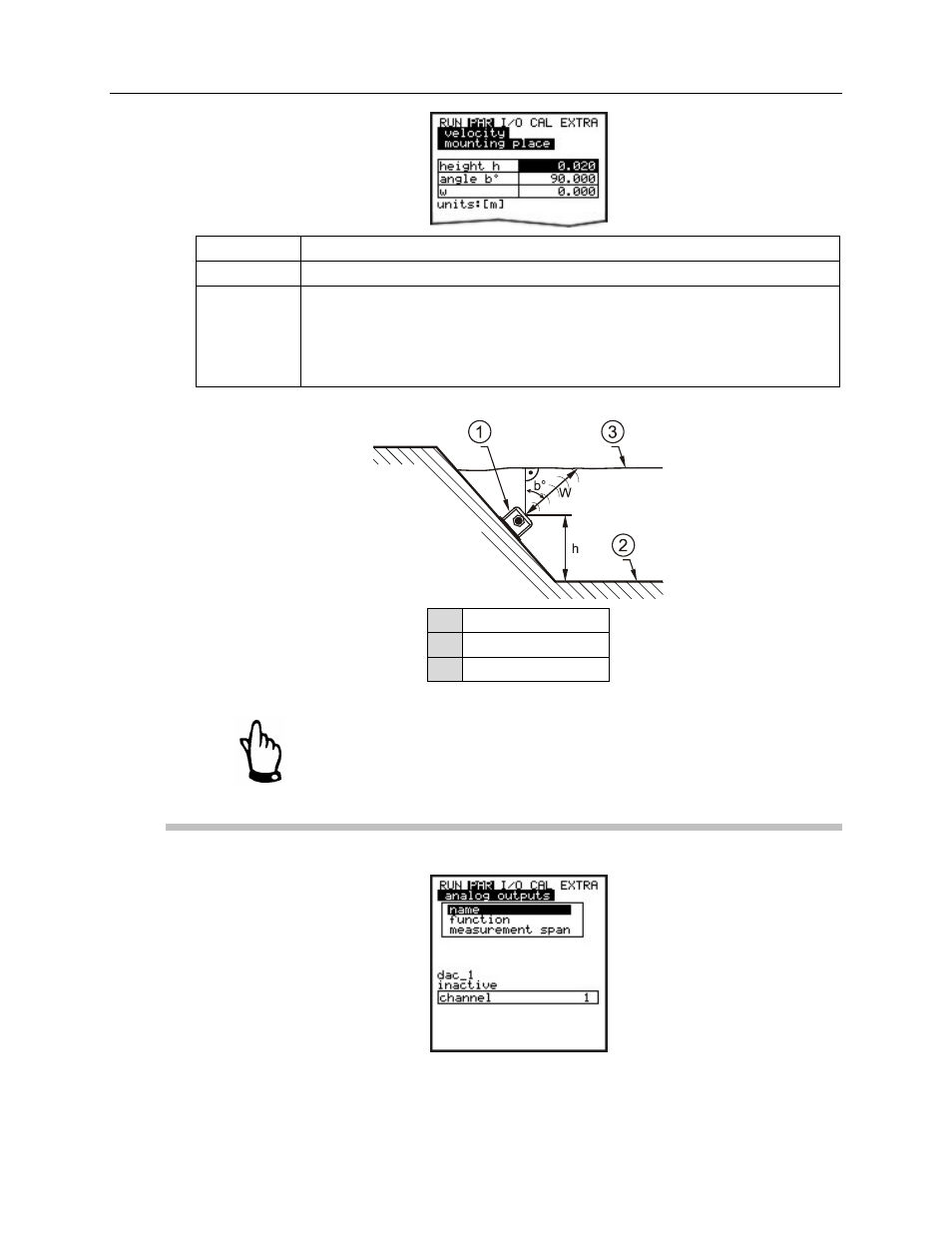

height h
Mounting height of the sensor body
angle b°
Sensor installation angle diverging from vertical
w
Maximum possible distance between the sensor and an obstruction (e.g., the opposite wall in
a horizontal installation)
This dimension must be calculated and entered by the user.
The Portable FlowShark Pulse will determine this length (w) automatically once the unit
measures a shorter distance to the flow surface, based on the depth level.
Parameters for off-center sensor installation
1
Sensor body
2
Pipe bottom
3
Flow surface
Measurement location settings
Modifying the mounting location for the depth sensor requires
modifying the CAL > Velocity > Channel No. > h_crit parameter
by the same factor.
PAR: Analog Outputs
Submenu for analog outputs
