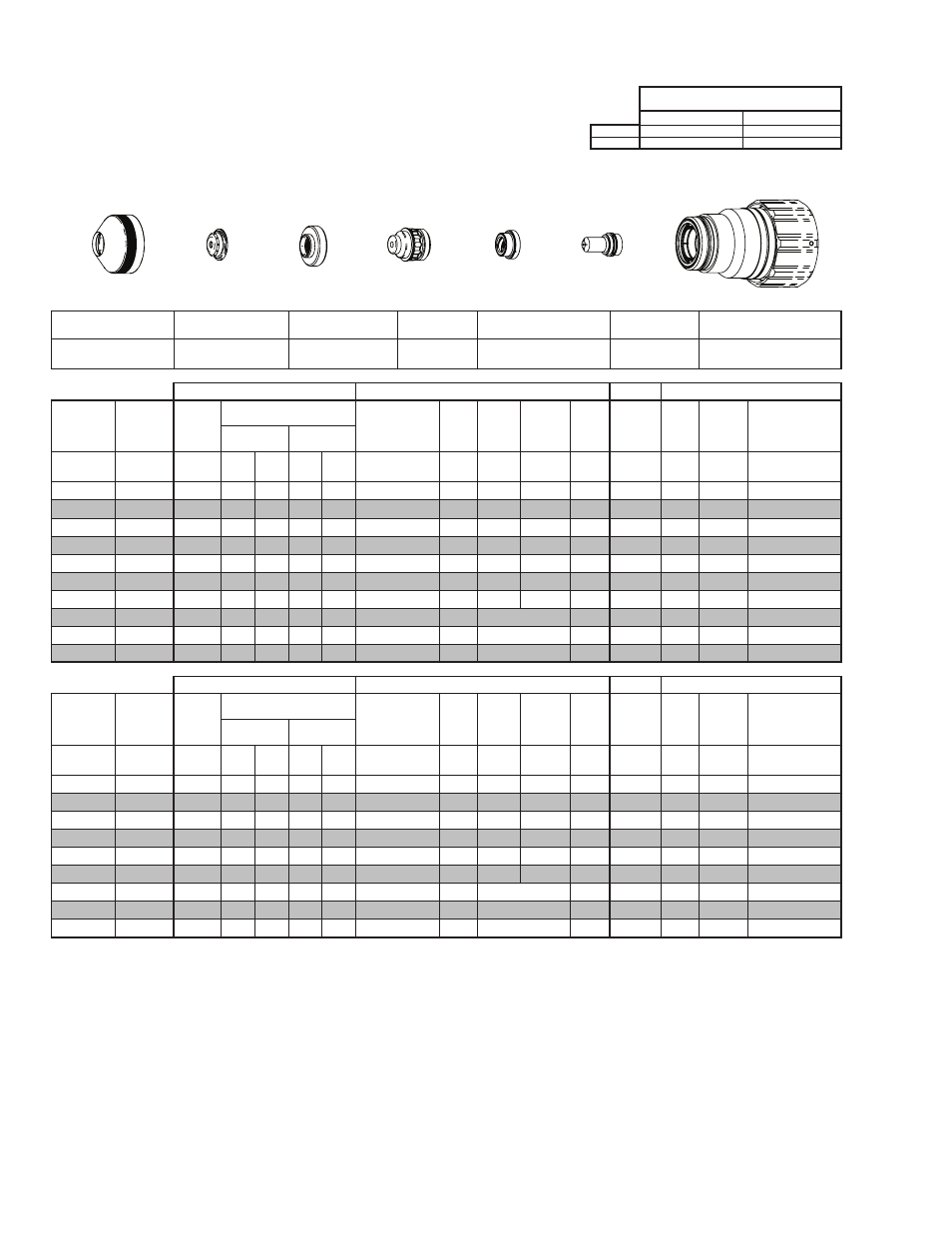

Page 60: This art is for reference only
TORCH DATA for Ultra-Cut
8-60
Manual 0-4828
Rev BA
Stainless Steel
Flow Rates
300A Bevel Cut
N₂ (SLPM / SCFH)
H₂O (GPH / LPH)
Preflow
23 / 48
8 / 30
N₂ Plasma / H₂O Shield
Cutflow
63 / 134
8 / 30
Shield Retainer
Shield Cap
Shield Gas
Distributor
Tip
Plasma Gas Distributor
Electrode
Cartridge
21-1015
21-1046
21-1284
21-1066
21-1043
21-1089
21-1022
GCM-2010
SC-3000 Torch Height Control (THC)
Basic THC
CNC Control
Effective
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Effective Cut
Height
THC
Pierce
Delay
Pierce
Ignition
Height
Elevation
Height
Control
Delay
Pierce
Height
without
Elevation
Travel
Speed
CNC
Motion
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
inch
(in)
(psi)
Ball (psi) Ball (psi)*
(in)
(sec)
(in)
(in)
(sec)
(in)
(ipm)
(sec)
(in)
0.375
0.080
20
120 100
8
55
0.150 - 0.550 0.3
0.250 0.200
0.2
0.350
140
0.3
0.144
0.500
0.080
20
120 100
8
55
0.150 - 0.550 0.5
0.250 0.200
0.2
0.350
100
0.5
0.154
0.625
0.080
20
120 100
8
55
0.150 - 0.550 0.8
0.250 0.200
0.2
0.350
75
0.6
0.153
0.750
0.080
20
120 100
8
55
0.200 - 0.550 0.9
0.400 0.300
0.2
0.500
55
0.7
0.173
0.875
0.080
20
120 100
8
55
0.300 - 0.550 1.8
0.400 0.300
0.2
0.500
45
1.1
0.210
1.000
0.080
20
120 100
8
55
0.300 - 0.550 2.1
0.400 0.300
0.2
0.500
40
1.3
0.210
1.250
0.080
20
120 100
8
55 0.350 - 0.550 3.5
0.400 0.300
0.2
0.500
30
2.0
0.230
1.500
0.080
20
120 100
8
55
0.350 - 0.550 1.0
Edge Start
0.2
Edge
25
1.0
0.232
1.750
0.080
20
120 100
8
55
0.350 - 0.550 1.0
Edge Start
0.2
Edge
18
1.0
0.237
2.000
0.080
20
120 100
8
55
0.350 - 0.550 1.0
Edge Start
0.2
Edge
12
1.0
0.253
GCM-2010
SC-3000 Torch Height Control (THC)
Basic THC
CNC Control
Effective
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Effective Cut
Height
THC
Pierce
Delay
Pierce
Ignition
Height
Elevation
Height
Control
Delay
Pierce
Height
without
Elevation
Travel
Speed
CNC
Motion
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
(mm)
(mm)
(Bar)
Ball (Bar) Ball (Bar)*
(mm)
(sec)
(mm)
(mm)
(sec)
(mm)
(mm/
min)
(sec)
(mm)
10
2.0
1.4
120 6.9
8
3.8
3.8 - 14
0.3
6.4
5.1
0.2
8.9
3400
0.3
3.7
12
2.0
1.4
120 6.9
8
3.8
3.8 - 14
0.5
6.4
5.1
0.2
8.9
2760
0.5
3.9
15
2.0
1.4
120 6.9
8
3.8
3.8 - 14
0.7
6.4
5.1
0.2
8.9
2080
0.6
3.9
20
2.0
1.4
120 6.9
8
3.8
5.8 - 14
1.2
10.2
7.6
0.2
12.7
1320
0.8
4.7
25
2.0
1.4
120 6.9
8
3.8
7.6 - 14
2.1
10.2
7.6
0.2
12.7
1030
1.3
5.3
30
2.0
1.4
120 6.9
8
3.8
8.5 - 14
3.1
10.2
7.6
0.2
12.7
830
1.8
5.7
35
2.0
1.4
120 6.9
8
3.8
8.9 - 14
1.0
Edge Start
0.2
Edge
720
1.0
5.8
40
2.0
1.4
120 6.9
8
3.8
8.9 - 14
1.0
Edge Start
0.2
Edge
580
1.0
5.9
50
2.0
1.4
120 6.9
8
3.8
8.9 - 14
1.0
Edge Start
0.2
Edge
320
1.0
6.4
BOLD TYPE indicates maximum piercing parameters. BOLD ITALIC indicates edge starts only.
* Pressure of the water supply line should be regulated by customer pressure regulator.
Note 1: Ohmic height sensing is not recommended with water shield. Water on the plate interferes electrically with the ohmic sensing circuit.
Note 2: Water source used for shield must be demineralized.
