General Information
These instructions cover the CCM (Command & Control
Module) for Thermal Dynamics Automated Plasma Cut-
ting Power Supplies. Do not install this module on any
other equipment.

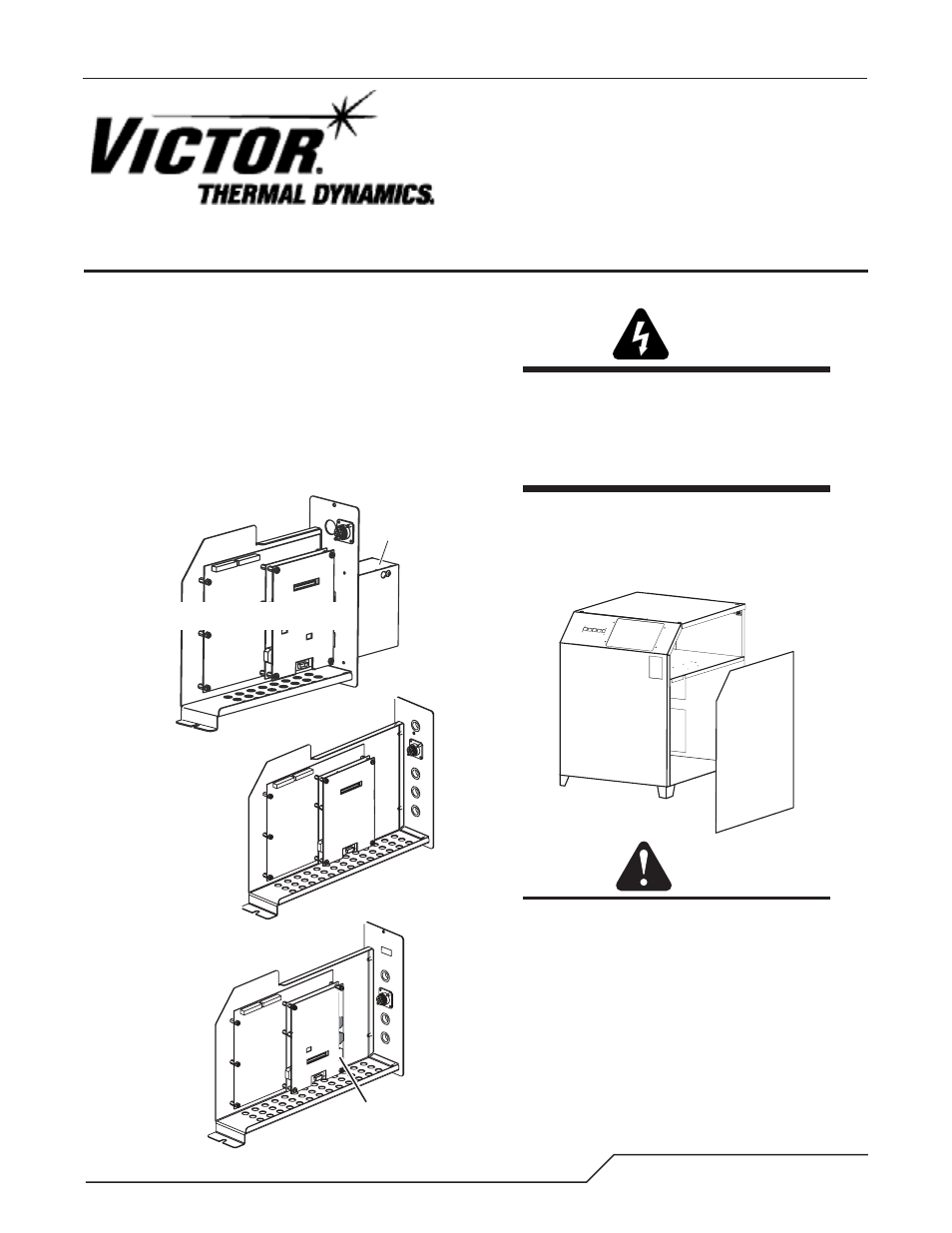

There are two types of module. One includes an external
strain relief cover assembly protruding from the back
panel. The other has a flat back panel. Refer to the illustra-
tion to confirm that the module is correct for the power
supply being serviced.
External
Connection
Cover
CCM Type 1
CCM Type 2
(Cat. No. 9-9418)
Art # A-06871_AB
CCM Type 3
(Cat. No. 9-9417)
USB
NO LONGER AVAILABLE
Command & Control Module,
No. 9-9417 / 9-9418
for Automated Plasma Cutting
Power Supplies
Installation Instructions
Procedure
WARNING
Disconnect primary power at the source and
bleed down the system before installing, in-
specting, or repairing this equipment.
Only a qualified technician should install or
service this equipment.
1. Remove the power supply right side panel. Set the
panel aside carefully. A ground wire connects to the
inside of the side panel. Disconnect this wire if neces-
sary to provide more room to work.
Art # A-07333
CAUTION
There is one section in these instructions for
each type of module. Be sure to follow the
correct section for the type of module being
replaced.
Original Publication Date: 2006 Manual no.: 0-4737
Revision Date: 2014 Revision: AD
